 Write-Up: Driver's Side Door Window/Lock Switch Internals

Go down
+9
71gsx455-4spd
Abaddon
deekster_caddy
albertj
denim
Face
AA
NO 4 EVR
SoCal Riv
13 posters
Go to page : 1, 2  Next
AuthorMessage
SoCal Riv
Enthusiast
SoCal Riv


Joined : 2007-01-23
Post Count : 132
Merit : 0

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyThu Jan 25, 2007 4:43 pm

Here the internal workings and pieces of the driver's door switch assembly. Here's the deal: It is one hundred percent mechanical. You can reuse the existing switch after refurbishing a few parts. The failure occurs from wear of a spring-loaded white tab (there are four) that wears from friction due to lack of grease, and the contact points become burnt due to electrical arcing. The GM part is Made in Japan as is the new GM replacement part; both by the same manufacturer.

Write-Up: Driver's Side Door Window/Lock Switch Internals Switch_11
^All the sum parts.

Write-Up: Driver's Side Door Window/Lock Switch Internals Switch_10
^All the sum parts.

Write-Up: Driver's Side Door Window/Lock Switch Internals Switch_01
^The main board with the switch components: Rocker switches for the windows; micro-switches for the door lock and unlock.

Write-Up: Driver's Side Door Window/Lock Switch Internals Switch_06
^Bottom-side and base of switch assembly that plugs into the door wiring harness loom.

Write-Up: Driver's Side Door Window/Lock Switch Internals Switch_02
^Side view of the switch assembly main board.
Write-Up: Driver's Side Door Window/Lock Switch Internals Switch_03
^Window toggle switches in their respective switch saddles.

Write-Up: Driver's Side Door Window/Lock Switch Internals Switch_05
^The base of the rocker that houses the metal contacts where the rocker switch white tab toggles back-and-forth to activate the window.

Write-Up: Driver's Side Door Window/Lock Switch Internals Switch_04
^The window rocker switch comprised of spring-loaded tabs (white) that ride a curved metal contact. It is these white tabs that wear-out and thereby cause the failure to activate. This is a good switch as the half-moon shape at the right-side of the white tab is still as new; when this piece is gone, through wear, then the failure occurs.

Write-Up: Driver's Side Door Window/Lock Switch Internals Switch_09
^Metal contact that sits in the toggle switch saddle that makes contact with the white tab of the rocker switch.

Write-Up: Driver's Side Door Window/Lock Switch Internals Switch_07
^Top-side of the micro-switch board assembly that operates the door lock and unlock.

Write-Up: Driver's Side Door Window/Lock Switch Internals Switch_08
^Bottom-side of the micro-switch board assembly that operates the door lock and unlock. Note: This piece is not only held down by two snap-clips, but it is also soldered in place through three (3) leads. I only desoldered and removed this piece to show that there are no electronics components hidden on the backside of the board. DO NOT remove this piece if you are refurbishing the switch assembly, there is simply no need to do so.

The monetarily rocker switches consist of rocker metal contact straps that make contact in the means as the older ignition points setup of yesteryear. I also noticed that contact wells were black, and upon smelling the black substance noted a burnt smell. Further investigation yields heat discoloration on the rocker contacts which could mean the white plastic half-moon tabs failed from heat melting the tab down as the metal rocker contact strip is moved it looks at through they arced from electrical current. To help save future arching it might be advisable that you operate the switches in a definitive motion, and not a slow motion so as to allow arcing to occur. If you have a nervous tick, and like to play with the switches ever so slightly or you rest your forearm across the switches and wiggle them ever so slightly, you can be adding to the arcing. This all could mean that the as the contact points become burnt that more resistant is building up over time leading to imminent failure. I will learn more when I get the time.

The switches look to be initially intended to be lit, but as a cost saving measure GM decided to light the entire assembly from above with one light in the door handle pull. The switches are clear, and the assembly looks to be one that can accommodate a light bulb/led. Had GM simply gone with a different assembly then the design could have been simpler and less prone to failure. This is pure speculation on my part, but I'd bet I'm not too far off.
Back to top Go down
NO 4 EVR
Addict
NO 4 EVR


Name : Troy
Age : 38
Location : Sylvania, OH (Toledo)
Joined : 2007-01-26
Post Count : 645
Merit : 1

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyWed Jan 31, 2007 4:43 pm

SoCal, I want to see the pics you have been posting in the forum here but they all seem to be broken!

I really want to see them to, expecially the exhaust one.
Back to top Go down
AA
Administrator
AA


Name : Aaron
Age : 46
Location : C-bus, Ohio
Joined : 2007-01-13
Post Count : 18448
Merit : 251

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyWed Jan 31, 2007 7:02 pm

X
X
X
X
X

frown

_________________
'05 GTO 6.0L • 6-spd • 95k miles • 0-60: 4.8s • 16.9 avg MPG • Nelson Ledges Lap: 1:26

'95 Celica GT 2.2L • 5-spd • 165k miles • 0-60: yes

'98 SC Riviera • 281k miles • 298 HP/370 TQ • 0-60: 5.79s • ET: 13.97 @ 99.28 • 4087 lb • 20.1 avg MPG • Nelson Ledges Lap: 1:30
3.4" pulley • AL104 plugs • 180º t-stat • FWI w/K&N • 1.9:1 rockers • OR pushrods • LS6 valve springs • SLP headers • ZZP fuel rails
KYB GR2 struts • MaxAir shocks • Addco sway bars • UMI bushings • GM STB • Enkei 18" EV5s w/ Dunlop DZ101s • F-body calipers
EBC bluestuff/Hawk HP plus • SS lines • Brembo slotted discs • DHP tuned • Aeroforce • Hidden Hitch

^^^ SOLD ^^^ frown

'70 Ninety-Eight Holiday Coupe 455cid • 116k miles
^^^ SOLD ^^^ frown
Back to top Go down
http://www.cardomain.com/ride/657082/4
SoCal Riv
Enthusiast
SoCal Riv


Joined : 2007-01-23
Post Count : 132
Merit : 0

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyWed Feb 07, 2007 12:45 am

I am waiting for a device to arrive this coming Thursday so that I can finish the report. I'll elaborate further when the time comes as I do not know whether it will work (I am buying it used). Then I'll ask Aaron to clean this thread up with the final report.
Back to top Go down
Face
Rookie
Face


Name : Mike
Location : Long Island, NY
Joined : 2007-04-06
Post Count : 16
Merit : 1

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyThu May 31, 2007 2:55 pm

Still all x's.
Back to top Go down
denim
Junkie
denim


Name : Sean
Location : Albany, NY
Joined : 2011-08-27
Post Count : 925
Merit : 33

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyMon Sep 12, 2011 7:46 pm

Okay, here's a mystery...
On way to play 9 holes, driver's side window switch fails to respond. On way back, no problem.
Have had this car for a short period of time, maybe 3 weeks. Switch always seemed to work perfectly, as it does now.
Any thoughts?
Back to top Go down
albertj
Master
albertj


Name :
Location : Finger Lakes of New York State
Joined : 2007-05-31
Post Count : 8576
Merit : 180

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyMon Sep 12, 2011 9:53 pm

denim wrote:
Okay, here's a mystery...
On way to play 9 holes, driver's side window switch fails to respond. On way back, no problem.
Have had this car for a short period of time, maybe 3 weeks. Switch always seemed to work perfectly, as it does now.
Any thoughts?

check by pulling the drivers door panel and carefully checking first the wires that come from the controls, for internal breaks and for shorts from chafing.

Back to top Go down
denim
Junkie
denim


Name : Sean
Location : Albany, NY
Joined : 2011-08-27
Post Count : 925
Merit : 33

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyMon Sep 12, 2011 10:08 pm

Albert, you dog. You always have some insight!
I'll get to that when it happens again and ticks me off:)
Thanks.
Back to top Go down
albertj
Master
albertj


Name :
Location : Finger Lakes of New York State
Joined : 2007-05-31
Post Count : 8576
Merit : 180

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyMon Sep 12, 2011 11:26 pm

denim wrote:
Albert, you dog. You always have some insight!
I'll get to that when it happens again and ticks me off:)
Thanks.

Naah, it's memory.

There was a problem (and I think even a TSB for it) for some Rivs concerning chafing of the wires thru the drivers door jamb. If the common line that powers the window switches chafes thru then it shorts and you don't get window action.

You could have an issue with the switch (did you or a prior owner spill coffee or cola in it?!?) but that's actually rare.

Thinking about it, when you check those wires if you don't find a problem go after the window motor. The magnets in the OE motors are glued into place. The glue **will** let go after some number of years and when it does the motor will not run reliably, the magnets collapse against the armature. If the temp is just right and they are bumped just right they'll run and if not they won't.

Albertj
Back to top Go down
deekster_caddy
Master



Name : Derek
Age : 51
Location : Reading, MA
Joined : 2007-01-31
Post Count : 7717
Merit : 109

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyTue Sep 13, 2011 9:29 am

My drivers side switch wouldn't work occasionally when it was very hot. (closed car in sun all day etc). It would work after things cooled down. Then one day it stopped working altogether. I pulled the door panel, removed and completely disassembled the switch, cleaned up the contacts inside the switch with emery cloth, reversed the switches so the contacts were new, and reassembled. Haven't had a problem with it since! In general, the switch is unobtanium, but I did pick up a used one once, and never needed it. Not sure how well it works, but it could be reworked and then you don't have to deal with that part while the door is apart, just swap them out.

Heck maybe I could clean it up and then exchange it with someone who needs it.
Back to top Go down
Abaddon
Expert
Abaddon


Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4314
Merit : 185

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyTue Sep 13, 2011 9:57 am

deekster_caddy wrote:
My drivers side switch wouldn't work occasionally when it was very hot. (closed car in sun all day etc). It would work after things cooled down. Then one day it stopped working altogether. I pulled the door panel, removed and completely disassembled the switch, cleaned up the contacts inside the switch with emery cloth, reversed the switches so the contacts were new, and reassembled. Haven't had a problem with it since! In general, the switch is unobtanium, but I did pick up a used one once, and never needed it. Not sure how well it works, but it could be reworked and then you don't have to deal with that part while the door is apart, just swap them out.

Heck maybe I could clean it up and then exchange it with someone who needs it.



Autozone sells 'em via SPO. They're like $180 Just FYI.



My contacts burnt out and melted beyond repair. I even got another switch from a junkyard, and it had the same problem lol. I currently use a pocket screwdriver to operate my driver window Write-Up: Driver's Side Door Window/Lock Switch Internals 587517
Back to top Go down
71gsx455-4spd
Member



Name : Ken
Age : 62
Location : Connecticut
Joined : 2007-05-26
Post Count : 64
Merit : 3

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptySun Apr 27, 2014 7:12 pm

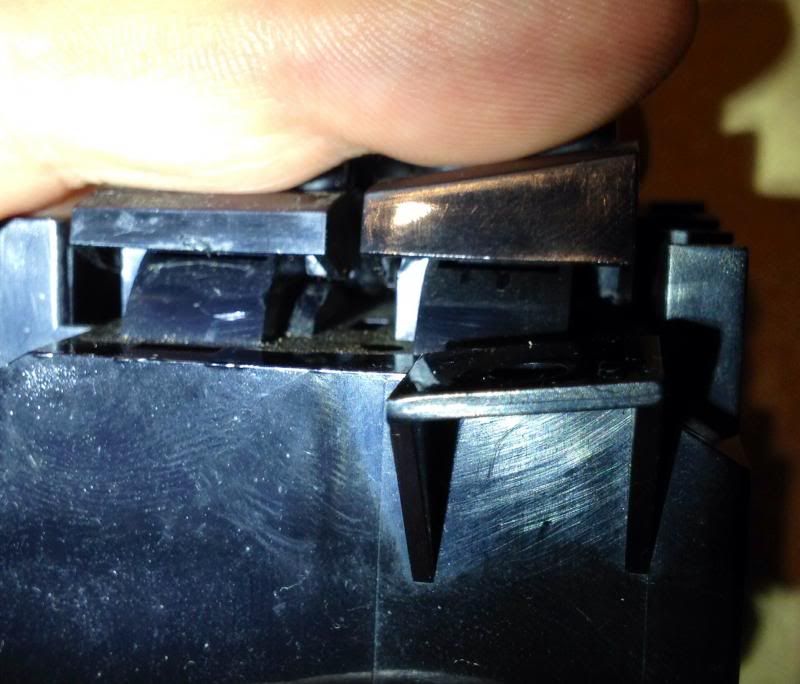

Old thread, but wondering how to get the rocker switches off. The pictures above are busted so if there was one that showed this, it's gone. I have the switch out but have been trying to gently get the switches pried off unsuccessfully. The drivers side window was intermittent and now is non functional. Even if it ends up being a motor, I still would like to R&R the switch.

Here's a pic that might help:

Write-Up: Driver's Side Door Window/Lock Switch Internals Imagejpg1_zps289ce281

Guidance, especially with a picture, would be greatly appreciated.

Thanks,

Ken
Back to top Go down
71gsx455-4spd
Member



Name : Ken
Age : 62
Location : Connecticut
Joined : 2007-05-26
Post Count : 64
Merit : 3

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyWed Apr 30, 2014 10:49 pm

Bumpity Bump Bump....
Back to top Go down
1998 Riv
Expert
1998 Riv


Name : Dave
Age : 63
Location : In The AZ Oven
Joined : 2007-01-17
Post Count : 4502
Merit : 44

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyWed Jun 04, 2014 4:54 pm

Ken, I need to deal with this soon as well. Did you ever resolve the problem? Now that my daughter is driving the Riv, I get to listen to her complain about the intermittent operation, instead of swearing at it myself.
Back to top Go down
Abaddon
Expert
Abaddon


Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4314
Merit : 185

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyWed Jun 04, 2014 5:03 pm

They pry off. VERY carefully. They clip on to two little pegs on either side. The rockers have 2 little holes with very thin plastic around them. I broke one of mine when I tried to repair it. I eventually made 1 complete working switch, but it inevitably failed within 2 weeks. I ended up getting a brand new one.....

EDIT: I got 2 switches from a junkyard and took all 3 of them apart. The contacts underneath the rockers turn black from dirt and the constant micro spark from initial contact. I took the passenger spring contact from one of the junkyard switches (neither one worked on the driver switch) and installed it on my driver switch. It would've probably worked forever had the main contacts in the switch itself not melted.
Back to top Go down
71gsx455-4spd
Member



Name : Ken
Age : 62
Location : Connecticut
Joined : 2007-05-26
Post Count : 64
Merit : 3

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyWed Jun 04, 2014 10:43 pm

I never did get them off, Dave. I get to hear about the whole door panel being off since I posted my question here, lol.

Scott, where did you get a new switch? Aftermarket? If I know that's an option, I may be a bit braver with the switch I have in trying to pry it apart!
Back to top Go down
Abaddon
Expert
Abaddon


Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4314
Merit : 185

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyThu Jun 05, 2014 8:17 am

71gsx455-4spd wrote:
Scott, where did you get a new switch? Aftermarket? If I know that's an option, I may be a bit braver with the switch I have in trying to pry it apart!

Autozone sells them
http://www.autozone.com/autozone/parts/1998-Buick-Riviera/Power-Window-Switch/_/N-ja115Z9cilb?filterByKeyWord=window+switch&fromString=search

I happened to get lucky and locate a new GM part here at work.
Back to top Go down
1998 Riv
Expert
1998 Riv


Name : Dave
Age : 63
Location : In The AZ Oven
Joined : 2007-01-17
Post Count : 4502
Merit : 44

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyThu Jun 05, 2014 9:21 am

RockAuto also lists Airtex switches for L & R for my 98. A bit over $100. I'm going to work on mine first though.
Back to top Go down
1998 Riv
Expert
1998 Riv


Name : Dave
Age : 63
Location : In The AZ Oven
Joined : 2007-01-17
Post Count : 4502
Merit : 44

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyThu Jun 05, 2014 9:23 am

It almost seems that it's not worth the time investment to "refurbish" the original switch. I may just order new instead and get it over with.
Back to top Go down
1998 Riv
Expert
1998 Riv


Name : Dave
Age : 63
Location : In The AZ Oven
Joined : 2007-01-17
Post Count : 4502
Merit : 44

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyThu Jun 05, 2014 9:49 am

Does this look right?  I hardly see my Riv's interior anymore...

http://www.rockauto.com/getimage/getimage.php?imageurl=http%3A%2F%2Fwww.rockauto.com%2Finfo%2FAirtex%2F1S10805.jpg&imagekey=2065160-0&width=500


Hmmm, it's only $78 at GMPD. But the $19 to ship it is crazy! Still less than RockAuto though.
Back to top Go down
matt270avian
Expert
matt270avian


Name : Matt
Age : 28
Location : Frederick, MD
Joined : 2012-01-15
Post Count : 2681
Merit : 54

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyThu Jun 05, 2014 10:16 am

There's tons of them on eBay for a lot cheaper.
Back to top Go down
1998 Riv
Expert
1998 Riv


Name : Dave
Age : 63
Location : In The AZ Oven
Joined : 2007-01-17
Post Count : 4502
Merit : 44

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyThu Jun 05, 2014 1:12 pm

Used... is what I saw on Ebay.


Found that my local dealer has it for $98, no shipping cost.
Back to top Go down
71gsx455-4spd
Member



Name : Ken
Age : 62
Location : Connecticut
Joined : 2007-05-26
Post Count : 64
Merit : 3

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyThu Jun 05, 2014 1:20 pm

Dave, that picture looks right to me.
Back to top Go down
1998 Riv
Expert
1998 Riv


Name : Dave
Age : 63
Location : In The AZ Oven
Joined : 2007-01-17
Post Count : 4502
Merit : 44

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptyThu Jun 05, 2014 4:21 pm

Yep, dealer confirmed I had the right p/n. smile
Back to top Go down
1998 Riv
Expert
1998 Riv


Name : Dave
Age : 63
Location : In The AZ Oven
Joined : 2007-01-17
Post Count : 4502
Merit : 44

Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals EmptySat Jun 07, 2014 3:30 pm

Spent about an hour swapping driver's door window switch, not too much trouble. Have to say I really dislike the sound, again, of little broken plastic pieces falling on the floor every time I lift the door panel off...  rolleyes
Back to top Go down
Sponsored content





Write-Up: Driver's Side Door Window/Lock Switch Internals Empty
PostSubject: Re: Write-Up: Driver's Side Door Window/Lock Switch Internals   Write-Up: Driver's Side Door Window/Lock Switch Internals Empty

Back to top Go down

Write-Up: Driver's Side Door Window/Lock Switch Internals
Back to top
Page 1 of 2Go to page : 1, 2  Next
 Similar topics
-
» 95 rivi driver side lock, passenger side window no ground!!!!!
» FAQ: Warm/Hot Air on Drivers Side, Cold on Passenger Side
» FAQ: Power Window Problems
» 98 has wind noise at drivers and passenger side window
» FAQ: Power Door Lock Problems

Permissions in this forum:You cannot reply to topics in this forum
Riv Performance ::   General Tech :: Interior-
Jump to:
