 Write-Up: SS Braided Fuel Lines

View previous topic View next topic Go down
AuthorMessage
BillBoost37
Junkie


Location : Enfield CT
Joined : 2007-11-28
Post Count : 769
Merit : 25

PostSubject: Write-Up: SS Braided Fuel Lines   Thu May 08, 2008 12:55 pm

Got all the parts from Summit. they seemed to have the best prices.
To go from hard metal lines to fuel rails.
EAR-165006ERL Fitting, -6 AN Male to 3/8 in. Tube, Aluminum, Red/Blue, Each 1 $9.25
EAR-165056ERL Fitting, -6 AN Male to 5/16 in. Tube, Aluminum, Red/Blue, Each 1 $9.25
EAR-981506ERL Fitting, Coupler, Straight, Male -6 AN to Male -6 AN, Aluminum, Blue, Each 2 $5.90
SUM-220687 Fitting, Hose End, 90 Degree, -6 AN Hose to Female -6 AN, Aluminum, Red/Blue Anodized, Each 2 $25.90
SUM-220690 Fitting, Hose End, Straight, -6 AN Hose to Female -6 AN, Aluminum, Red/Blue Anodized, Each 2 $9.76
SUM-230610 Hose, Braided Stainless Steel, -6 AN, 10 ft. Length, Each 1 $36.95
-------------------------------------------------------------------------------
Parts Total: $97.01
Handling Charge: $9.75

Total Order: $106.76
Total amount charged at this time: $106.76

I should have looked under my hood a little more and then I would have ordered one fitting differently. A straight piece instead of a bend for the supply line. Then the regulator would clear the line to the rail for supply. Either way.. it's fairly easy to do and looks amazing.

From this

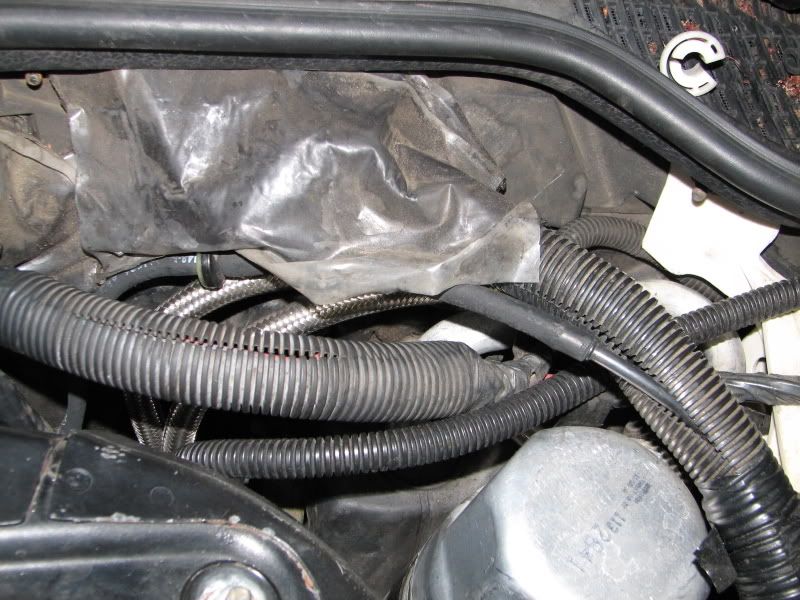

To this




Here's the cubby behind the strut that is enclosed by the AC drier


A couple hose connections



Cut a line or two


In the 96-99 B'ville the lines run back to the firewall, to the passenger side behind the strut (no f'n room there) and that is where they convert to metal lines. Unclipping a line holder at the back and lower area of the engine bay I was able to get enough movement to gently pull the lines out from behind the strut one at a time. This gave me enough room to cut the old plastic off, attached the tube to AN fittings and hook them to the braided line which I ran along the firewall before connecting to the new fittings. Pushed the line back in and pulled the excess SS line back toward the rails. Made the rail connections and hoped for the best when I pressurized it the first time.

No leaks and pressure is right where it was before. Only difference is no nylon lines to possibly kink.

Then the plug wires fell off


And due to Wylie Coyote ordering some plug wires from Acme Supply ... I was able to get them cheap off him after he crashed yet again.
