PostSubject: FAQ: Interior Lighting Questions (Dash/Guage Color)   Tue Mar 13, 2007 11:18 pm

I know I have been posting a lot of questions lately but I have been doing some srping cleaning while the weather is nice here in OH. I have found some things I am not sure about.

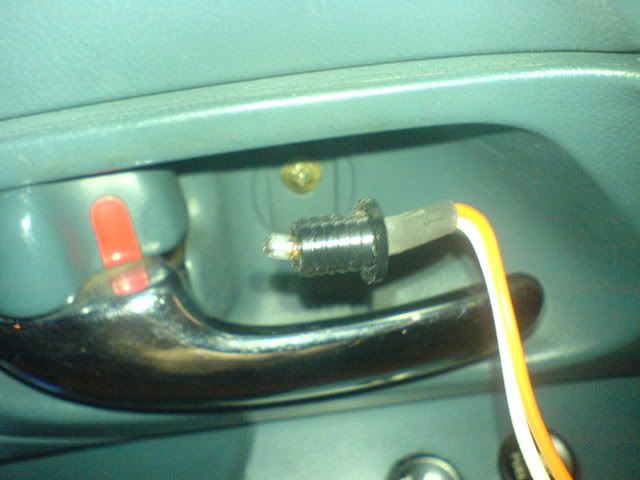

What is the number for this crazy light? It goes in the door handle part that you can see in the pic. It is very small and I have never seen it.

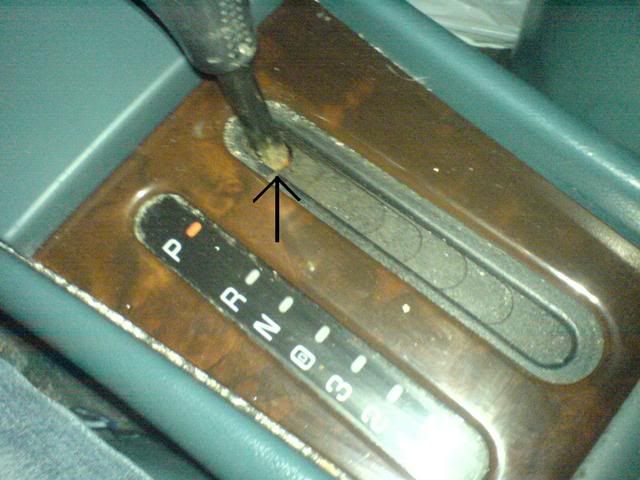

In this pic you can see the shifter and surrounding areas. Well I would imagine the letters P N R D etc should be lit up rather than the shifter itself (where the arrow points). I can see the shifter rod very well, but not the letters so much.


Can this be taken apart so I can reinstal this light?
Back to top Go down
Andysdorm
Aficionado
avatar

Name : Andrew
Age : 33
Location : Worcester, MA
Joined : 2007-01-17
Post Count : 1394
Merit : 6

PostSubject: Re: FAQ: Interior Lighting Questions (Dash/Guage Color)   Wed Mar 14, 2007 4:10 pm

my light on the driver's door handle went out. I only notice we had it when I noticed a glow at night fron the other handle. At first I thought it was a courtesy to the pessenger to find things but nope.
Back to top Go down
http://www.cardomain.com/ride/671386
NO 4 EVR
Addict
avatar

Name : Troy
Age : 31
Location : Sylvania, OH (Toledo)
Joined : 2007-01-26
Post Count : 645
Merit : 1

PostSubject: Re: FAQ: Interior Lighting Questions (Dash/Guage Color)   Wed Mar 14, 2007 4:40 pm

Yeah I don't even know the number for such a bulb. I will check walmart than some auto parts stores then the dealer if I have to. Now I am about to take out the console where the shifter is to find where to properly mount the light in the second pic.
Back to top Go down
racinfan
Addict
avatar

Name : Joe
Location : Cleveland, OH
Joined : 2007-02-05
Post Count : 567
Merit : 5

PostSubject: Re: FAQ: Interior Lighting Questions (Dash/Guage Color)   Wed Mar 14, 2007 4:55 pm

The bulb number should be in the FSM, I don't have mine with me right now but I'm sure someone else could look it up.

You could always try asking the dealership about it when they're fixing your tensioner and belt. wink
Back to top Go down
NO 4 EVR
Addict
avatar

Name : Troy
Age : 31
Location : Sylvania, OH (Toledo)
Joined : 2007-01-26
Post Count : 645
Merit : 1

PostSubject: Re: FAQ: Interior Lighting Questions (Dash/Guage Color)   Wed Mar 14, 2007 6:42 pm

Lol. for sure!
Back to top Go down
turtleman
Expert
avatar

Name : Codith
Age : 29
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3596
Merit : 123

PostSubject: Re: FAQ: Interior Lighting Questions (Dash/Guage Color)   Wed Mar 14, 2007 9:12 pm

I'm glad you posted on this. Both the grip light and the handle on my driver's side are out and these little things really bother me. (type A personality) I'll check the availability of these at work and see but these look like LED's from the picture NO 4 EVR posted so i really doubt it.

How did you take that one out in the picture?
It looks like youre just supposed to pry it out but i'm not about to do that without being sure..
Back to top Go down
NO 4 EVR
Addict
avatar

Name : Troy
Age : 31
Location : Sylvania, OH (Toledo)
Joined : 2007-01-26
Post Count : 645
Merit : 1

PostSubject: Re: FAQ: Interior Lighting Questions (Dash/Guage Color)   Wed Mar 14, 2007 10:28 pm

That one is very easy. Just use a flat head screw driver and some love (don't want to break or scratch anything!) and pry the little plastic cover off behind the door opener lever. Its right there in my pic. After that pull the whole piece out. It has one clip IIRC.

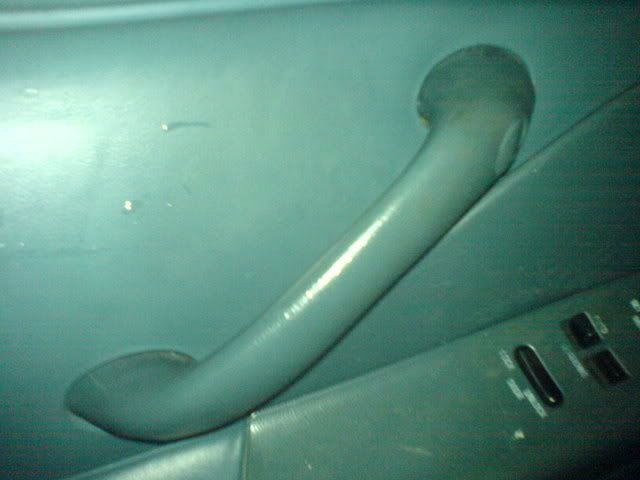

There is another one of those lights in the door handles (the ones you use to close the door from the inside) that you may have mentioned. That takes the same light bulb. However I don't know what that is supposed to light... Mine have a blue lense over all these lights for a blue tint, and as far as it looks, the blue lenses are stock. So my door handles light up blue.
