can someone do me a favor and take a picture of the wire harness that the cam sensor runs off of. its setting off the SES light. the guy in FLA put a bandaid on it and now when i start the car on any type of grade, it comes on. sometimes will come on while flat too. so if sum1 could take a pic of where it is and could go one step further and give me a link of where i can get one...that would be awesome. thanks guys
Back to top Go down
http://bodyspace.bodybuilding.com/xxsupergman25xx/
turtleman
Expert
turtleman


Name : Codith
Age : 36
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Wire Harness Help Empty
PostSubject: Re: Wire Harness Help   Wire Harness Help EmptyMon Jul 27, 2009 1:11 pm

The cam sensor wires go directly to the ignition control module. It would be a tricky thing to photograph on a fully dressed motor. Most of the harness is kind of hidden underneath the front accessories.
Back to top Go down
xxsupergman25xx
Aficionado
xxsupergman25xx


Name : Scotty
Age : 37
Location : Pittsburgh, PA
Joined : 2007-03-03
Post Count : 1251
Merit : 13

Wire Harness Help Empty
PostSubject: Re: Wire Harness Help   Wire Harness Help EmptyMon Jul 27, 2009 2:00 pm

ok..can u show me the wire harness i need to buy? i.e. at autoze, pepboys
Back to top Go down
http://bodyspace.bodybuilding.com/xxsupergman25xx/
deekster_caddy
Master



Name : Derek
Age : 52
Location : Reading, MA
Joined : 2007-01-31
Post Count : 7717
Merit : 109

Wire Harness Help Empty
PostSubject: Re: Wire Harness Help   Wire Harness Help EmptyMon Jul 27, 2009 2:20 pm

turtleman wrote:
The cam sensor wires go directly to the ignition control module. It would be a tricky thing to photograph on a fully dressed motor. Most of the harness is kind of hidden underneath the front accessories.

don't forget he's got a S1 engine - I have no idea what that harness looks like on a series I. I was about to answer your question then I realized it is for completely the wrong motor. frown Sorry.

Can any of the series 1 guys help out here??

I'm pretty sure if you can get a new harness, it will only be from GM. You are better off looking for used.
Back to top Go down
xxsupergman25xx
Aficionado
xxsupergman25xx


Name : Scotty
Age : 37
Location : Pittsburgh, PA
Joined : 2007-03-03
Post Count : 1251
Merit : 13

Wire Harness Help Empty
PostSubject: Re: Wire Harness Help   Wire Harness Help EmptyTue Jul 28, 2009 9:31 am

no1 can help me?
Back to top Go down
http://bodyspace.bodybuilding.com/xxsupergman25xx/
BillBoost37
Junkie



Location : Enfield CT
Joined : 2007-11-28
Post Count : 769
Merit : 26

Wire Harness Help Empty
PostSubject: Re: Wire Harness Help   Wire Harness Help EmptyTue Jul 28, 2009 9:51 am

Best thing is to probably hit up a junkyard. On the S2's GM used the same harness from ICM to crank and cam sensors. Not sure if they did that S1 or not, if they did...it should be easy to get one at a JY.
Back to top Go down
99Rivman
Aficionado
99Rivman


Name : Randall
Location : North Carolina
Joined : 2007-01-16
Post Count : 2009
Merit : 89

Wire Harness Help Empty
PostSubject: Re: Wire Harness Help   Wire Harness Help EmptyTue Jul 28, 2009 12:40 pm

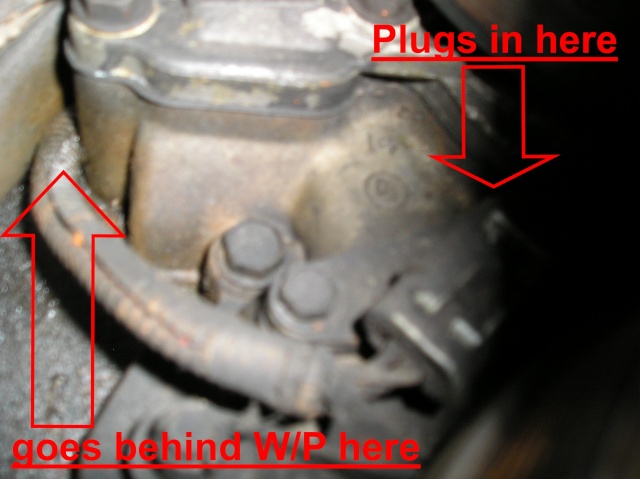

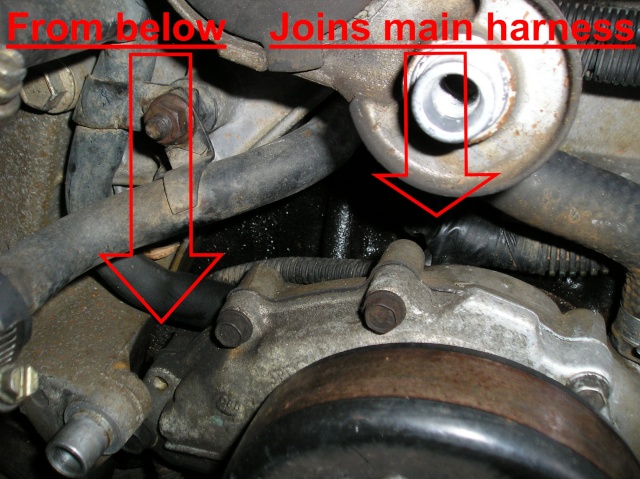

I just so happen to be putting pulleys on a friends ’95, I’ll give you what I can. thumbsup

Pictures are a little blurry but I think you can get the routing from them.

Wire Harness Help More_010

Wire Harness Help More_011

Best I can do, HTH cheers
Back to top Go down
http://www.cardomain.com/id/99Rivman
xxsupergman25xx
Aficionado
xxsupergman25xx


Name : Scotty
Age : 37
Location : Pittsburgh, PA
Joined : 2007-03-03
Post Count : 1251
Merit : 13

Wire Harness Help Empty
PostSubject: Re: Wire Harness Help   Wire Harness Help EmptyTue Jul 28, 2009 3:10 pm

that looks like a freakin pain lol

am i correct that i must do this from underneath the car? or all the pulleys and belts have to come off?


Last edited by xxsupergman25xx on Wed Aug 05, 2009 3:50 pm; edited 1 time in total
Back to top Go down
http://bodyspace.bodybuilding.com/xxsupergman25xx/
99Rivman
Aficionado
99Rivman


Name : Randall
Location : North Carolina
Joined : 2007-01-16
Post Count : 2009
Merit : 89

Wire Harness Help Empty
PostSubject: Re: Wire Harness Help   Wire Harness Help EmptyTue Jul 28, 2009 4:24 pm

Done from above, here is the Svs Man instructions:

The words "Remove or Disconnect" should be above where the red arrow points.
Wire Harness Help Fig_c110

Belts have to come off, and the water pump pulley.

Have fun with it thumbsup
Back to top Go down
http://www.cardomain.com/id/99Rivman
xxsupergman25xx
Aficionado
xxsupergman25xx


Name : Scotty
Age : 37
Location : Pittsburgh, PA
Joined : 2007-03-03
Post Count : 1251
Merit : 13

Wire Harness Help Empty
PostSubject: Re: Wire Harness Help   Wire Harness Help EmptyTue Jul 28, 2009 4:29 pm

thanks a ton randall. ill have to see when i have time to get on this. hopefully it wont die until thenn lol..hasnt yet.
