 Write-Up: Subframe/Cradle Mount Insulators & Bushings

View previous topic View next topic Go down
Go to page : Previous  1, 2, 3, ... 11, 12, 13  Next
AuthorMessage
Rickw
Guru


Name : Rick
Age : 58
Location : Lancaster, MA
Joined : 2008-09-13
Post Count : 6074
Merit : 104

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Wed Mar 17, 2010 1:23 pm

robotennis61 wrote:
just the fronts. the rears cant be done with pucks.
I remember now. You were going to have a custom rear cradle made. How has that worked out, any progress on that unit.
By the way, what is the rear cradle called...you had another name for it.?
Back to top Go down
BrianEsser
Enthusiast
avatar

Name : Brian Esser
Age : 41
Location : Ohio
Joined : 2010-01-22
Post Count : 168
Merit : 8

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Wed Mar 17, 2010 2:47 pm

I've always referred to them as cradles.
Back to top Go down
http://www.brianesser.com
Abaddon
Expert
avatar

Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4153
Merit : 169

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Wed Mar 17, 2010 3:01 pm

last I checked there are 6 cradle-to-body mounts.
Back to top Go down
ewolfe0050
Aficionado
avatar

Name : Eric
Location : Indianapolis, IN
Joined : 2007-07-31
Post Count : 1159
Merit : 27

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Wed Mar 17, 2010 3:10 pm

robotennis61- did you put the pucks on the top and bottem or just the bottom?

Abaddon- there are 6 mounts but each mount is made up of the upper and lower so 12 bushings total. Here's a photo of them (minus one).
Back to top Go down
robotennis61
Guru
avatar

Name : robotennis
Age : 55
Location : las vegas
Joined : 2007-12-17
Post Count : 5558
Merit : 142

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Wed Mar 17, 2010 4:10 pm

i put them top and bottom. the rear cradle is known as the Rear suspension support assembly. i did not do the rear. i tried it but it did not work. the rssa has to be bolted down to work. but only after the stock air suspension is deleted.
Back to top Go down
Abaddon
Expert
avatar

Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4153
Merit : 169

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Wed Mar 17, 2010 5:59 pm

ewolfe0050 wrote:
Abaddon- there are 6 mounts but each mount is made up of the upper and lower so 12 bushings total.

Well played..... suspect
Back to top Go down
rivparadise
Fanatic
avatar

Name : Samuel
Age : 44
Location : Niagara Co.
Joined : 2007-06-10
Post Count : 381
Merit : 11

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Fri Mar 19, 2010 6:17 am

Thanks guys! Going to stop today to get the part number. I will post it in case anyone else needs it!
Back to top Go down
http://myspace.com/theacetomato
turtleman
Expert
avatar

Name : Codith
Age : 29
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3596
Merit : 123

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Fri Apr 09, 2010 5:08 pm

My dealer finally gathered up all the pieces I requested. It took a bit for some of it since most of the pieces are technically discontinued.

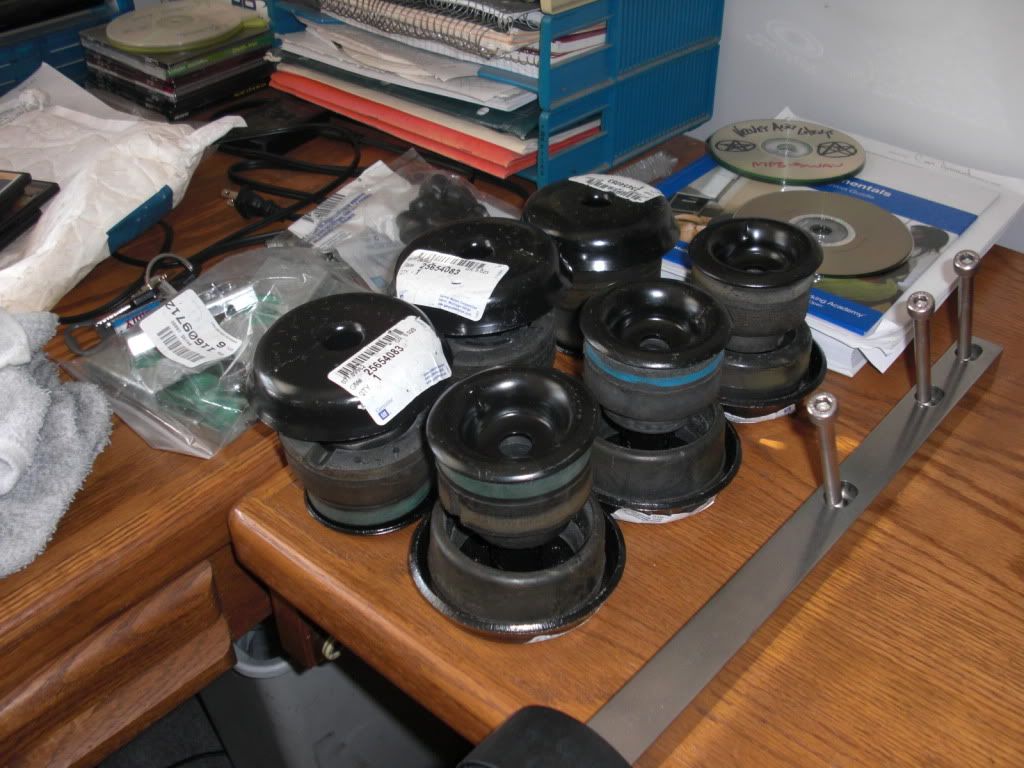

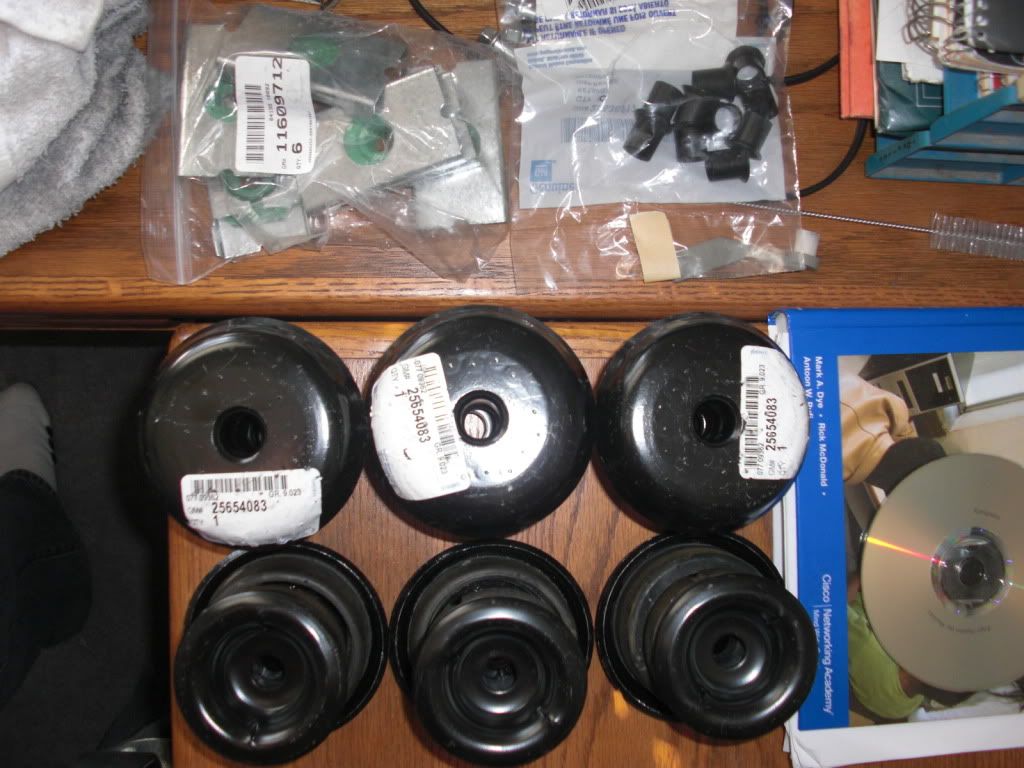

Here's are some pictures of the main pieces basically stacked as they are on the car.

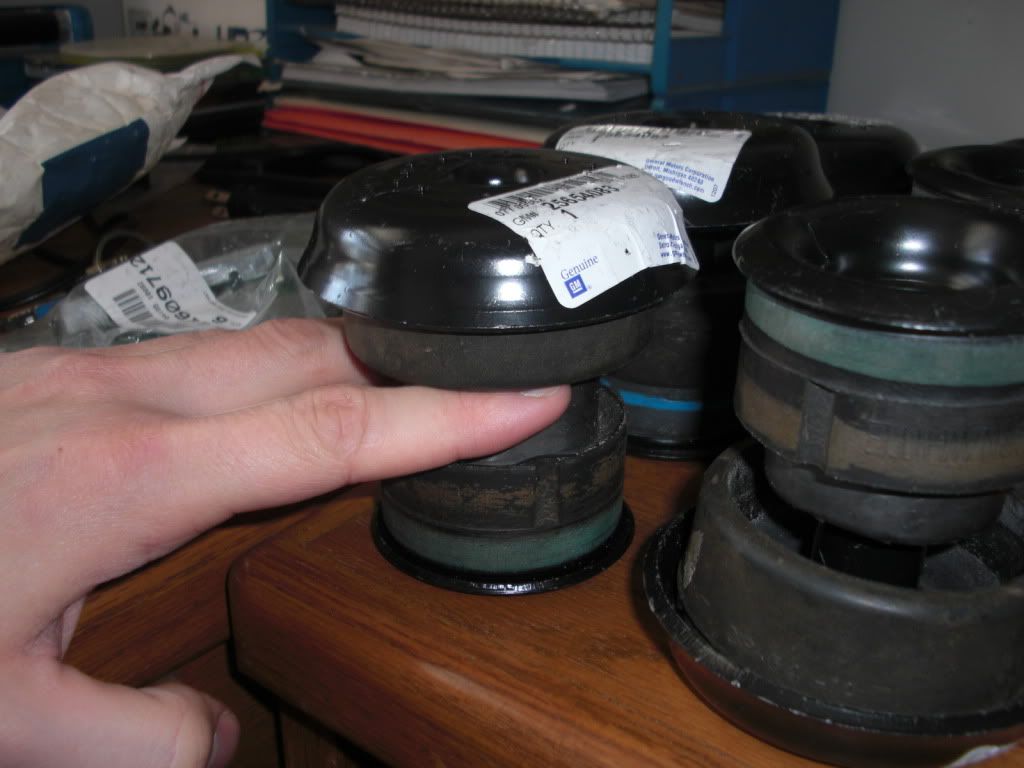

In this last picture, my fingers are basically where the subframe would be in relation to the retainers & insulators. The larger retainers go to the top.
In the bags are the nut plates that go all the way at the top and the plastic shanks that appear to fit into the top retainer. The only thing that I don't have here are the bolts. I didn't buy them because they are in perfect condition and appear to be practically resistant to corrosion.

As I said earlier, my car is actually missing the lower retainers and lower insulators on two of my rear mounts, I'm guessing due to the lower retainers rusting out and letting go. I have no desire to ever do this again so I just got everything - all stock pieces.
Back to top Go down
turtleman
Expert
avatar

Name : Codith
Age : 29
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3596
Merit : 123

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Fri Apr 09, 2010 5:23 pm

I suppose this could get it's own thread but I believe it can be very useful here for anyone that may be working on this.

I have for sale 4 (6 on the car) of the lower retainers new from the dealer. (I had to buy 10 - they come in packages of 5 WTF?)
BTW, these are the pieces that I lost two of on my car from age and essentially the reason I got everything else in the first place so they are a pretty good thing to have your hands on. I also have the little plastic shanks for the top for the same reason (had to buy 10)


I'll sell them for what I paid at the dealer with my discount.
$1.67ea for lower retainers
$1.67ea for plastic shanks
Basically $20paypal, I'll put the 8pieces in a flat rate box.
Back to top Go down
BrianEsser
Enthusiast
avatar

Name : Brian Esser
Age : 41
Location : Ohio
Joined : 2010-01-22
Post Count : 168
Merit : 8

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Fri Apr 09, 2010 8:40 pm

Man if I wasn't broke I'd be all over them. I just pulled this from mine tonight.

Back to top Go down
http://www.brianesser.com
7901mark
Enthusiast


Name : Mark
Joined : 2010-04-22
Post Count : 127
Merit : 6

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Wed Aug 04, 2010 12:26 pm

Gm dealer will have these, I replaced all 4 last weekend. Took about 4 hours. One bushing had completely rusted through the cradle. I had to fab some sheet metal and weld it up to hold the bushing.

I paid about $250 for parts to replace all 4 bushings.
Back to top Go down
AA
Administrator
avatar

Name : Aaron
Age : 40
Location : C-bus, Ohio
Joined : 2007-01-13
Post Count : 18306
Merit : 239

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Wed Aug 04, 2010 1:57 pm

Thanks Mark, do you have part numbers?

_________________
'98 SC Riviera 268k miles 298 HP/370 TQ 0-60: 5.79s ET: 13.97 @ 99.28 4087 lb 20.1 avg MPG Nelson Ledges Lap: 1:30
3.4" pulley AL104 plugs 180 t-stat FWI w/K&N 1.9:1 rockers OR pushrods LS6 valve springs SLP headers ZZP fuel rails
KYB GR2 struts MaxAir shocks Addco sway bars UMI bushings GM STB Enkei 18" EV5s w/ Dunlop DZ101s F-body calipers
EBC bluestuff/Hawk HP plus SS lines Brembo slotted discs DHP tuned Aeroforce Hidden Hitch


'05 GTO 49k miles 0-60: 4.8s 16.9 avg MPG Nelson Ledges Lap: 1:26
Because fun
Back to top Go down
http://www.cardomain.com/ride/657082/4
7901mark
Enthusiast


Name : Mark
Joined : 2010-04-22
Post Count : 127
Merit : 6

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Mon Aug 30, 2010 6:02 pm

AA wrote:
Thanks Mark, do you have part numbers?


Sry guys, I threw my receipt away. I think it was abt $250ish for 4 bushings, 4 bolts, 8 spacers....If you call GM parts dept, they will certainly give you the part numbers. Ill keep looking smile
Back to top Go down
albertj
Guru
avatar

Name :
Location : Finger Lakes of New York State
Joined : 2007-05-31
Post Count : 6643
Merit : 123

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Mon Aug 30, 2010 8:01 pm

AA wrote:
Thanks Mark, do you have part numbers?

they used to be posted on another thread, maybe AA can point to it for us I can't find it...

Albertj
Back to top Go down
turtleman
Expert
avatar

Name : Codith
Age : 29
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3596
Merit : 123

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Sun Oct 31, 2010 4:45 pm


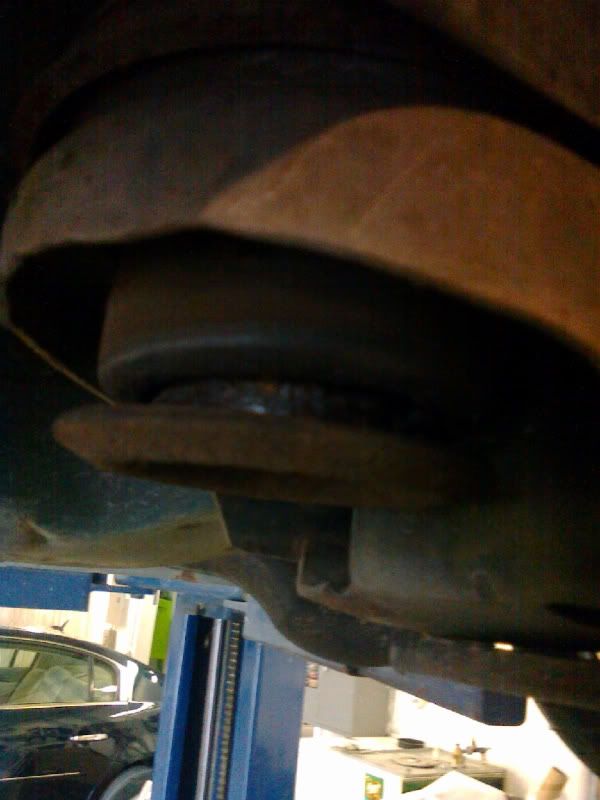

The cradle mount situation is getting worse. The two (out of 4) in the back have long since let go and it looks like the other on the rear passenger side is loose as hell. That would explain my noises.

I gotta get on this!
Back to top Go down
7901mark
Enthusiast


Name : Mark
Joined : 2010-04-22
Post Count : 127
Merit : 6

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Mon Nov 01, 2010 2:46 pm

Poping when turning? I had similar issues. One of the mounts was completely rusted out. I had to fab some sheet metal discs so the bushing had something to rest on.

The cradle will flex down, so make sure when you lift the car you also brace the cradle before replacing the bushings. To replace the top bushings you'll need to separate the cradle to fit them in. Hopefully they'll come off easier than mine did. All rusted up and shot. Even after replacing all 4 rear bushings, I still have some poping which might be failing due to more rust, which Im sure Ill eventually have to repair with more sheet metal . Very frustrating....
Back to top Go down
turtleman
Expert
avatar

Name : Codith
Age : 29
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3596
Merit : 123

PostSubject: Write-Up: Cradle Mount Insulators & Bushings   Fri Nov 05, 2010 9:34 pm

Well I put in the order from Morad for a fully dressed cradle from a 2000 Bonneville SSEI. It has the control arms and stuff on it still. I'm hoping the rear trans mount is either the same or swappable with mine. The front trans mount that the bonne uses is the straight up and down hockey puck style mount so I'm either going to switch to that since I already have the bracket for it or use the riv one if they have the front-to-back through hole for it on the frame. It actually looks like it does in the pics but I can't be sure until I look at it close.

The mounts on the passenger and driver side of the car are connected to the body, not the frame, so I'm not doing anything to those. I actually ordered a new riv rear mount on one of the GM parts sites new for fifty-something. If they actually have it, that'll be nice. Either way mine right now is completely shot. The sleeve that the bolt goes through is sitting all the way at the bottom. Whether I get that new one or used replacement, I'm going to fill it in with shore 85A hardness poly. That would stiffen it up a little and give the rubber additional support so at minimum it should last a while.

I wish I had more time to do research and figure things out more so as to reduce risk of this not working out but my front and rear mounts are in straight piss ass shape and I have 3 out of 6 cradle mounts functioning. It's not so much an issue of if but rather when I'm going to be driving along one day and the back of my cradle comes down.
Back to top Go down
Rickw
Guru


Name : Rick
Age : 58
Location : Lancaster, MA
Joined : 2008-09-13
Post Count : 6074
Merit : 104

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Fri Nov 05, 2010 11:11 pm

turtleman wrote:
Well I put in the order from Morad for a fully dressed cradle from a 2000 Bonneville SSEI. It has the control arms and stuff on it still. I'm hoping the rear trans mount is either the same or swappable with mine. The front trans mount that the bonne uses is the straight up and down hockey puck style mount so I'm either going to switch to that since I already have the bracket for it or use the riv one if they have the front-to-back through hole for it on the frame. It actually looks like it does in the pics but I can't be sure until I look at it close.

The mounts on the passenger and driver side of the car are connected to the body, not the frame, so I'm not doing anything to those. I actually ordered a new riv rear mount on one of the GM parts sites new for fifty-something. If they actually have it, that'll be nice. Either way mine right now is completely shot. The sleeve that the bolt goes through is sitting all the way at the bottom. Whether I get that new one or used replacement, I'm going to fill it in with shore 85A hardness poly. That would stiffen it up a little and give the rubber additional support so at minimum it should last a while.

I wish I had more time to do research and figure things out more so as to reduce risk of this not working out but my front and rear mounts are in straight piss ass shape and I have 3 out of 6 cradle mounts functioning. It's not so much an issue of if but rather when I'm going to be driving along one day and the back of my cradle comes down.
Turtle,
When you do this job will you take some measurements for me. I'm specifically interested in the dimensions of the hole spacing for the Steering Rack. I need to know the distance the bolt holes are apart from each other so I can try and determine if a Non-Magna-steer Rack will bolt to the Riv. Does the rack bolt to the cradle.? If so, you will be finding out if your using a Bonneville cradle and the Riv steering rack.
I've been wanting to change this over for the past couple of years but can't seem to get any of the Rack re-builders that I have contacted to tell me the mounting dimensions for either the Riv and a Bonny.
The Bonny came with or without Magna-steer as an option so it would be a good candidate to use for a swap.
I know someone local that has a SSEI that came with Magna-steer and he was able to install a non-Magna-steer as they list P/N's for both to fit that car. He finished the job and returned or got rid of the old rack before I had a chance to do any measuring. I can't go to the junk yards and crawl under cars to take measurements because of my back problems. As it is I will have to pay someone to swap the rack for me, if I can find one that fits.
The dude with the Bonny was irritated by the same highway vibrations that I and others, experience with the Riv's and he was able to eliminate it by eliminating the sensitivity by changing to non-magna-steer. All I have to do is find out if a certain year bonny or whatever will fit the Riv and I'll replace the pump as well and get rid of the over sensitive magna-steer.
Regardless of the vibration issue, I do not like the magna-steer and it's limited effect on the highway. I want a firmer steering input and feedback.
Thanks for any info you can provide.
Also, what was that front sway bar out of that I bought from you. I forget. Having that installed tomorrow hopefully along with some other work I cannot do.

If the cradle you get from the 00 Bonny has a steering Rack on it and it is non-electronic and you are not going to use it, let me know. I'll try it if it has any life left in it.

Rick

Back to top Go down
turtleman
Expert
avatar

Name : Codith
Age : 29
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3596
Merit : 123

PostSubject: temp   Sat Nov 06, 2010 3:33 pm

Rick, this cradle comes with the sway bar and control arms - no rack unfortunately. I'm interested in getting a non-magnasteer rack myself but right now I just need to fix what's broken. Once I have the cradle, I'll get everything everyone needs - no worries.

Back to top Go down
Rickw
Guru


Name : Rick
Age : 58
Location : Lancaster, MA
Joined : 2008-09-13
Post Count : 6074
Merit : 104

PostSubject: temp   Sat Nov 06, 2010 10:11 pm

turtleman wrote:

The cradle mount situation is getting worse. The two (out of 4) in the back have long since let go and it looks like the other on the rear passenger side is loose as hell. That would explain my noises.

I gotta get on this!
The first post on this issue from you was in Jun of 2008. Is this the same problem that you just let slide or this a recurring problem.????

If this is the same problem from 2008 then I don't need to be too concerned, although I do want to replace them VERY soon.

I need to know because Derek found my rear 2 washers rotted off today and the rest aren't that pretty either. Do you have any spares or should I just order from the dealer.?
Do you have any P/N's of the washers, they are all the same P/N aren't they.?

Thanks for any info you can provide.
Back to top Go down
turtleman
Expert
avatar

Name : Codith
Age : 29
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3596
Merit : 123

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Sun Nov 07, 2010 2:57 pm

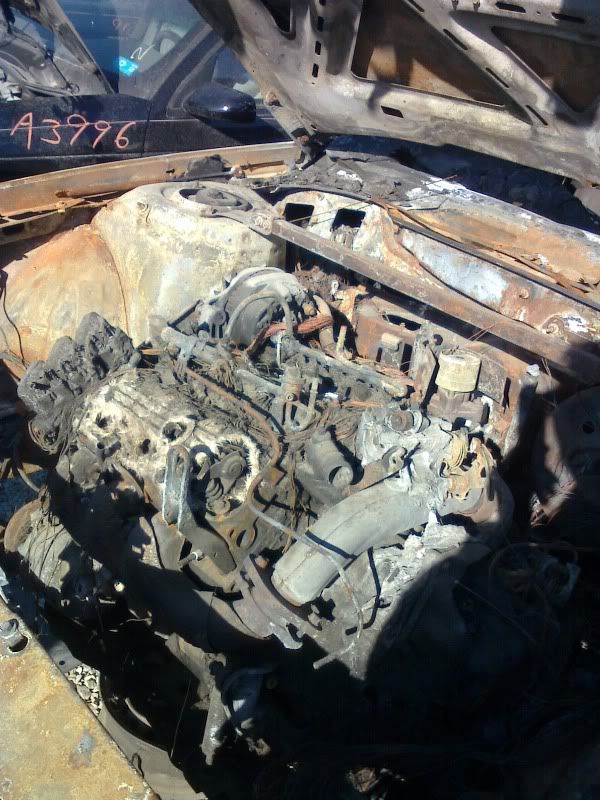

I went to one of the yards today for some other stuff for my friend's t-bird mainly and found a '99 aurora that pretty much had all the front bumper and fender liners off so I stopped and took a close look around the cradle mounts for access ways to the nuts. I don't really see anything other than what I already knew about. Here's some cell phone pics.


passenger side rear two mounts

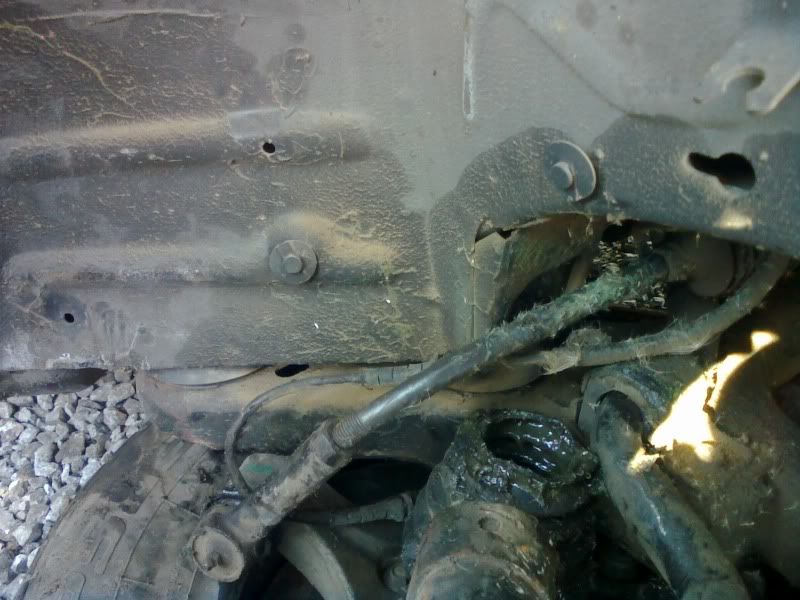

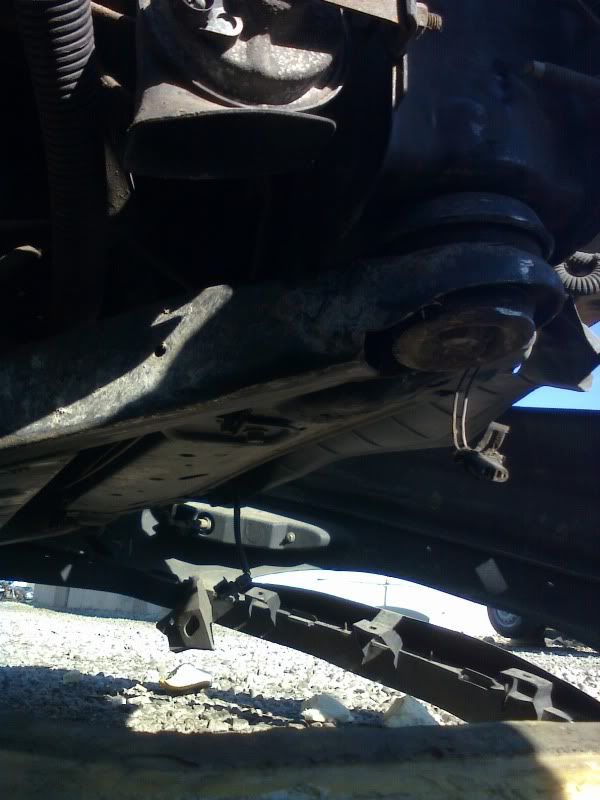

If you look right where the bent-to-shit inner tie rod is, you can see the access hole in the frame for the one cradle mount nut. That is on the driver and passenger sides.

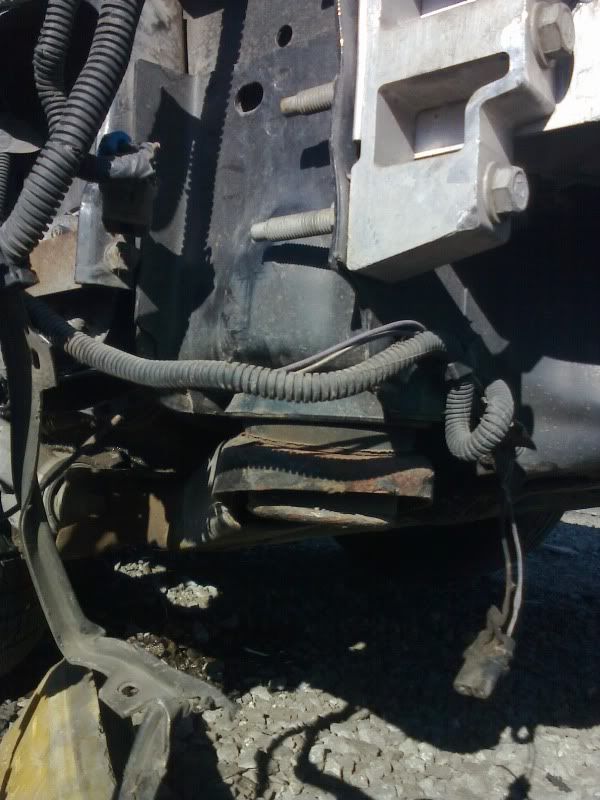

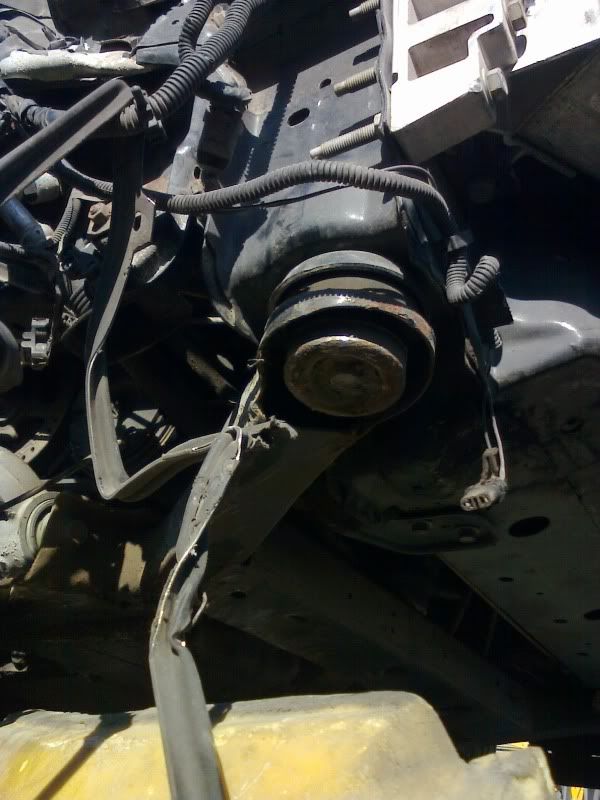

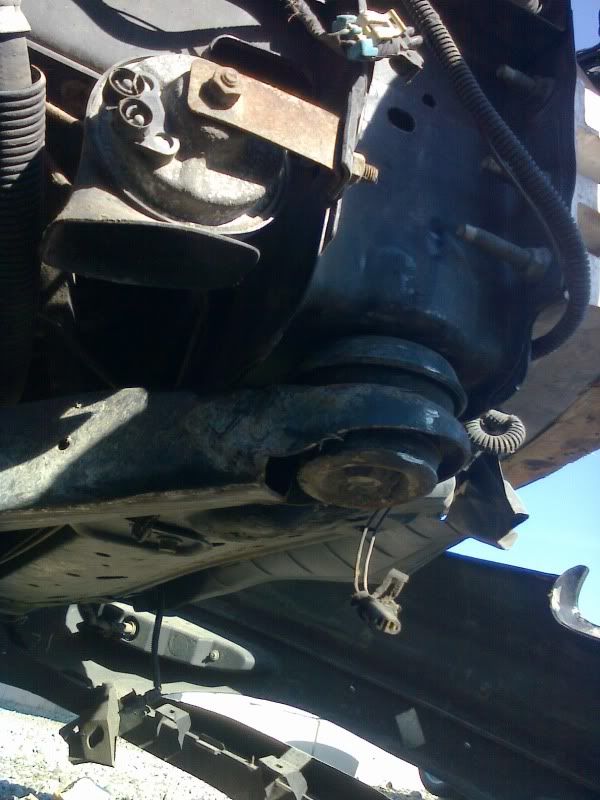

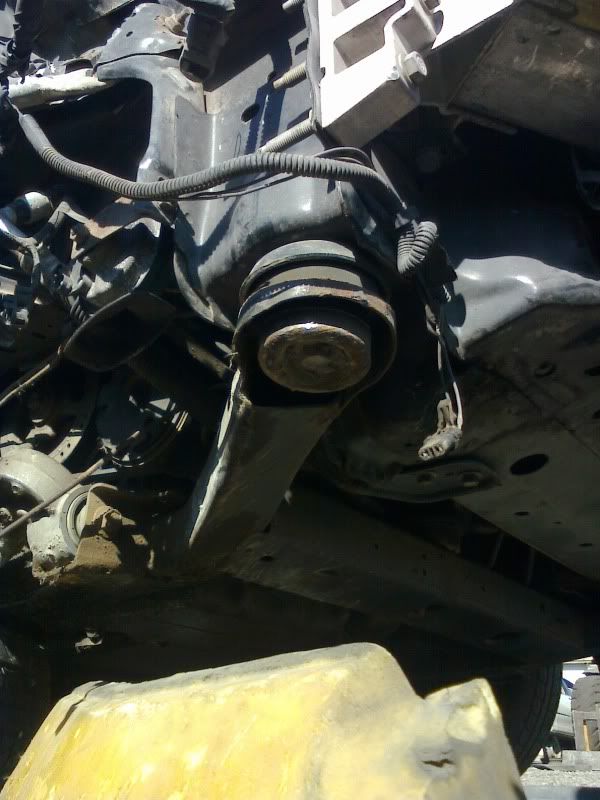

Here's a few shots of the front cradle mount and surroundings






Let's just hope those other 4 top nuts hold themselves together...


bonus pic from the yard...
Back to top Go down
flyineagle96
Junkie
avatar

Name : James E
Age : 48
Location : Dalton,Mass
Joined : 2009-12-21
Post Count : 914
Merit : 24

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Sun Nov 07, 2010 8:06 pm

I've tried getting them off, a number of times,they always brake.Maybe a hand held torch,heat them up then they will break free?
Back to top Go down
robotennis61
Guru
avatar

Name : robotennis
Age : 55
Location : las vegas
Joined : 2007-12-17
Post Count : 5558
Merit : 142

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Sun Nov 07, 2010 8:27 pm

the best thing to do with those bell shaped washers is to weld them to the cradle and hard mount the cradle to the frame. i just thought of that,and like an ass i threw them out along time ago before i had a welder. i bet you wouldn't experience a whole lot of difference anyway,the motor mounts are way soft and soak up alot of the jarring
Back to top Go down
Rickw
Guru


Name : Rick
Age : 58
Location : Lancaster, MA
Joined : 2008-09-13
Post Count : 6074
Merit : 104

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Sun Nov 07, 2010 9:19 pm

robotennis61 wrote:
the best thing to do with those bell shaped washers is to weld them to the cradle and hard mount the cradle to the frame. i just thought of that,and like an ass i threw them out along time ago before i had a welder. i bet you wouldn't experience a whole lot of difference anyway,the motor mounts are way soft and soak up a lot of the jarring
So what are you trying to say. Is it best to replace what i have with good OEM parts or do i need to have something made for a stock Riviera that isn't driven hard.
Or do I need to have something custom made that is driven hard.? i'm trying to figure all this out as well.
please provide some feedback on this subject, not smoke and mirror's.
Rick
Back to top Go down
robotennis61
Guru
avatar

Name : robotennis
Age : 55
Location : las vegas
Joined : 2007-12-17
Post Count : 5558
Merit : 142

PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Sun Nov 07, 2010 10:14 pm

well...if you want to replace all the cradle bushings(isolators) then its a good idea. but if your looking to get a little more handling performance out of the riv,then it would be best to take the bell shaped cupped washers in turtles photo and weld them to the cradle,cut down the bolts and hard mount the cradle to the frame. and just do away with the rubber isolators in between.
when the car corners hard,and along with the very soft control arm bushings,the entire cradle is allowd,by the isolators,to move around. to prove this,all you need to do is take a square piece of wood and at each corner place a small cylinder of rubber,doesnt matter what size,but big enough to visually analyze the movement the square of wood is subjected to. attach the rubber cylinders to the block and then attach the model to a table or something. now take the block in your hand and move it around. it moves for and aft and side to side.the control arms attached to the cradle are along for the ride too! this is movement that causes vague and downright scary handling at higher speeds. it was engineered into the system to isolate the driver from road shock. if you like to DRIVE then this is isolation that you can do without.
IMO.if one is satisfied with the stock riv ride and doesnt push the car to do things that it would need upgrading to do,then the riv is just fine. ive considered that hard mounting the front cradle to the chassis would transmit alot of vibration to the car and that the motor mounts can fail prematurlly. oh well. a mount here a mount there,as long as you have the ability to fabricate your own mounts then premature weare of the mounts should not be a worry. the surrounding components,rack,engine,suspension,should not get anymore stressed than they allready are. the next step in the plan is to replace the stock rubber bushings with poly or nylon. back and front. believe me. the riv will open your eyes to another world of handling and corner grip. dont forget to get a stiffer than front swaybar. (im working on it). hope that clears it up for anybody interested.


Last edited by robotennis61 on Sun Oct 07, 2012 4:59 pm; edited 1 time in total
Back to top Go down

Write-Up: Subframe/Cradle Mount Insulators & Bushings
View previous topic View next topic Back to top
Page 2 of 13Go to page : Previous  1, 2, 3, ... 11, 12, 13  Next
 Similar topics
-
» Write-Up: Stabillizer (Anti-Sway) Bar Link Upgrade
» Body Mount Bushings
» Montana 600 Amps Rugged Mount Thumb Screw Mod
» Write-Up: Hockey Puck & Casting Front/Side Motor Mounts
» 73-77 Monte body bushings

Permissions in this forum:You cannot reply to topics in this forum
Riviera Performance ::   General Tech :: Brakes & Suspension-
Jump to:
