I wanted to throw a newish and somewhat unique idea at you guys, and see what you thought. I worked yesterday most of the day and constructed a system to make my door sill 'Riviera' emblems light up! Except I didn't use the Riviera script.

I don't think I got enough pictures to describe what I did, but I'll explain as best I can!

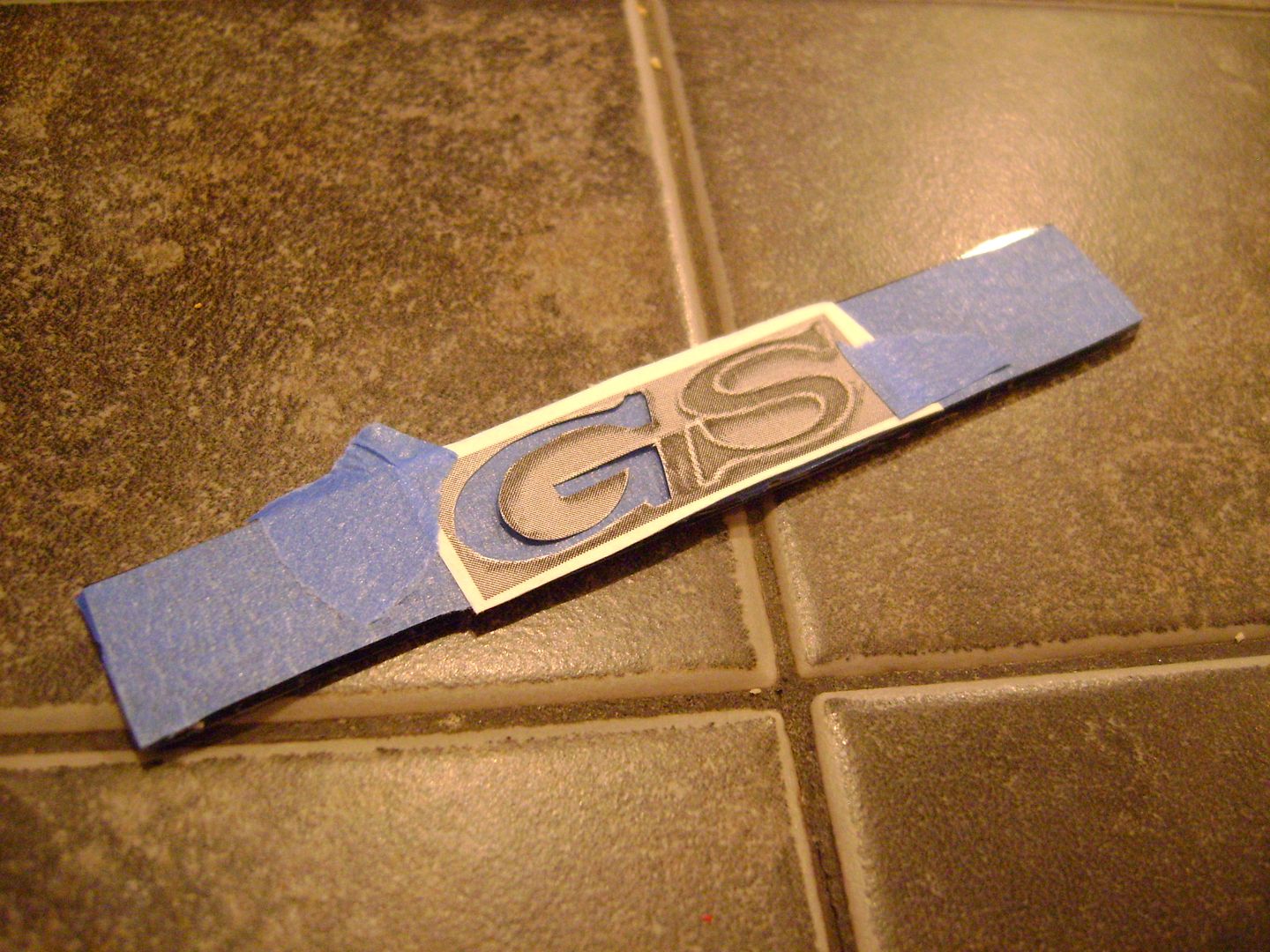

I first got some scrap vinyl material from my friend (he was too busy to create and cut decals at the time) and laid down some piece on some strips of acrylic I had already cut. I then covered them in masking tape to make a pattern to cut out by hand. Of course, I picked the old 'GS' script. I cut the design out of paper first so I could trace it onto the tape.
Lighted door sill panels! DSC05746

Once the design was traced onto the masking tape, I cut through it and the vinyl and there you have it!

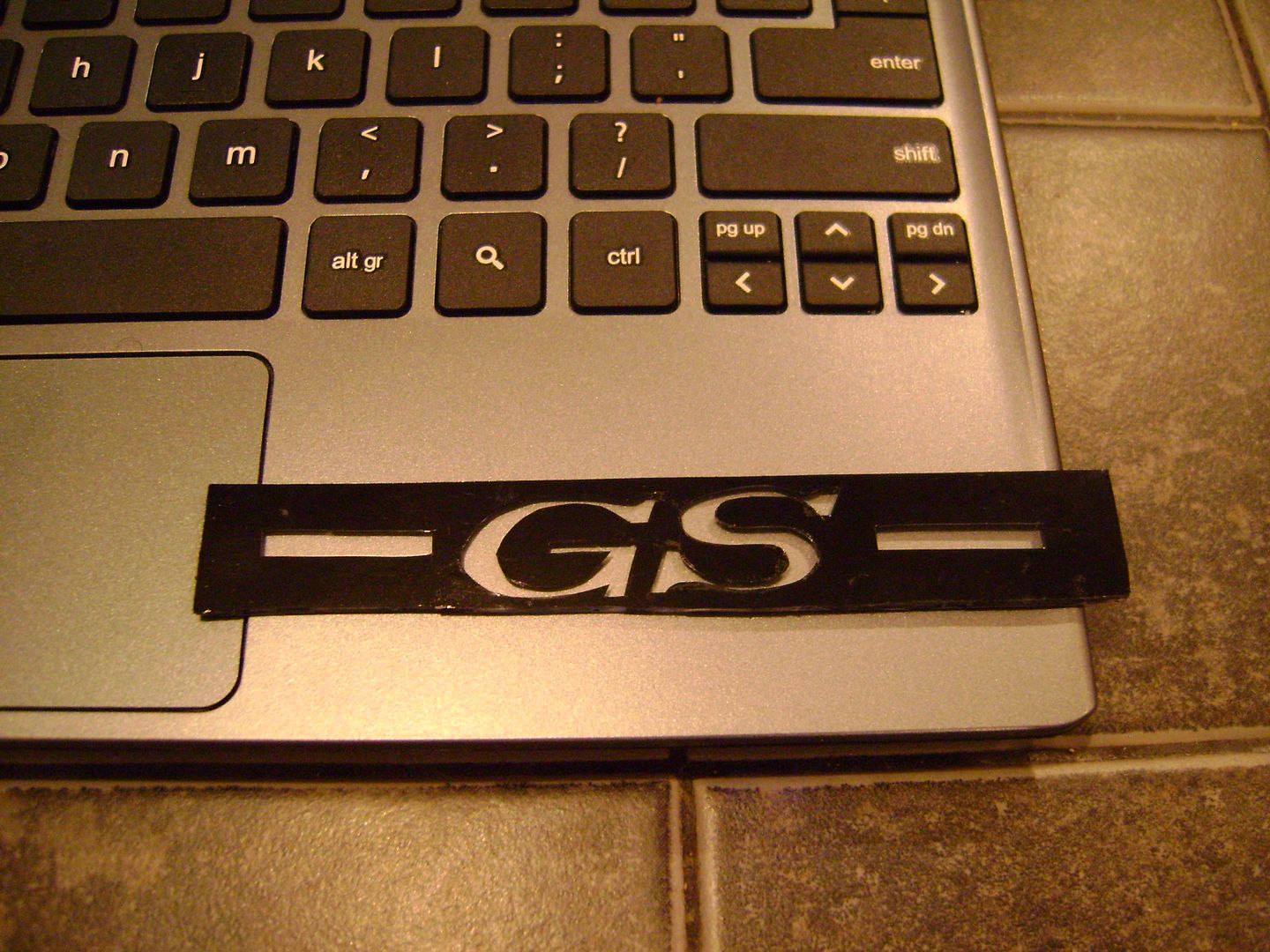

Lighted door sill panels! DSC05752

Since they're clear, I need to back them with something that would be see through when lit up from behind, but not from the top, so I shot them with a thin silver.
Lighted door sill panels! DSC05752

Lighted door sill panels! DSC05755

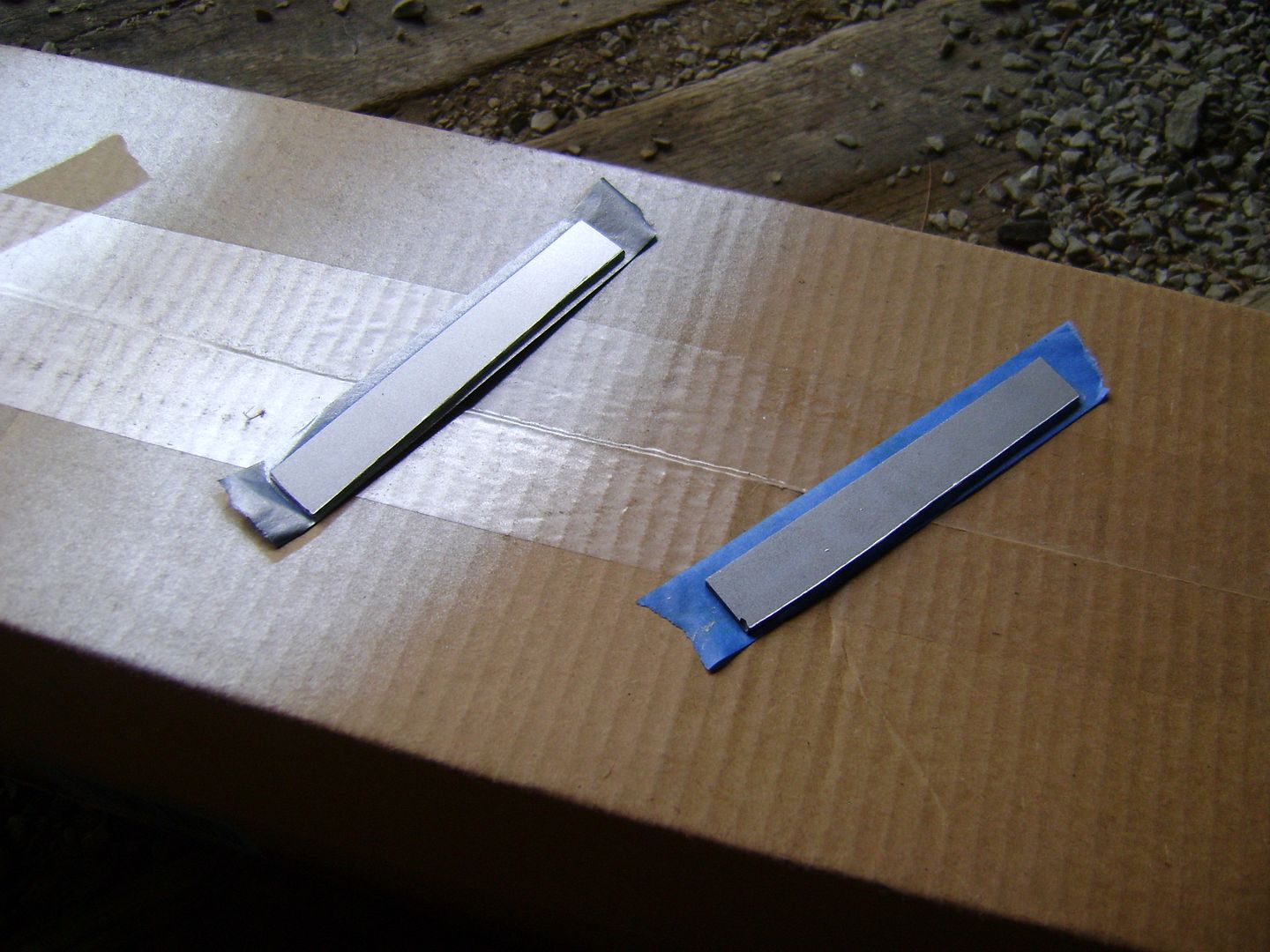

Then I airbrushed a teal mix I made onto the back as well, then a few more layers of silver.
Lighted door sill panels! DSC05760

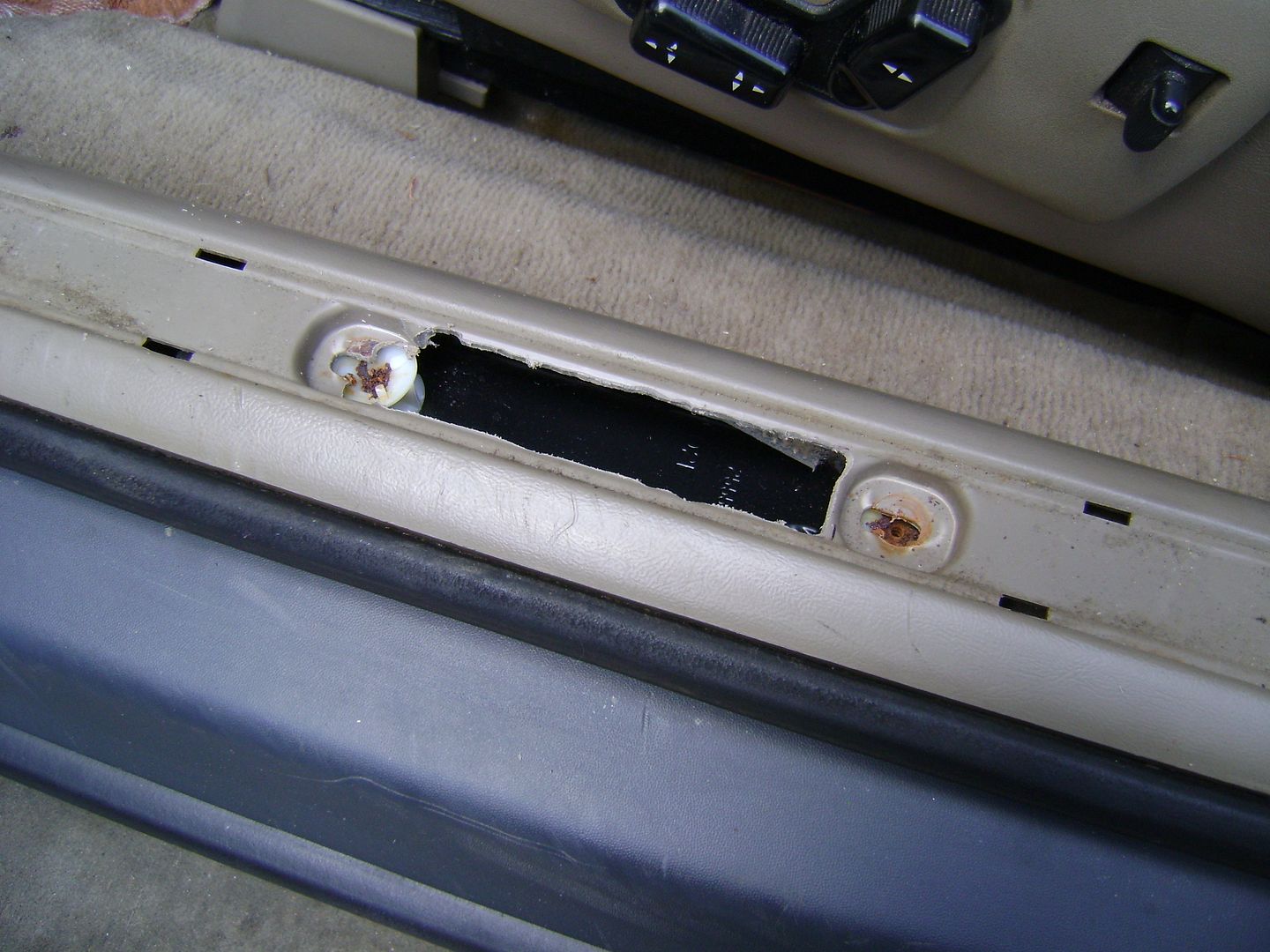

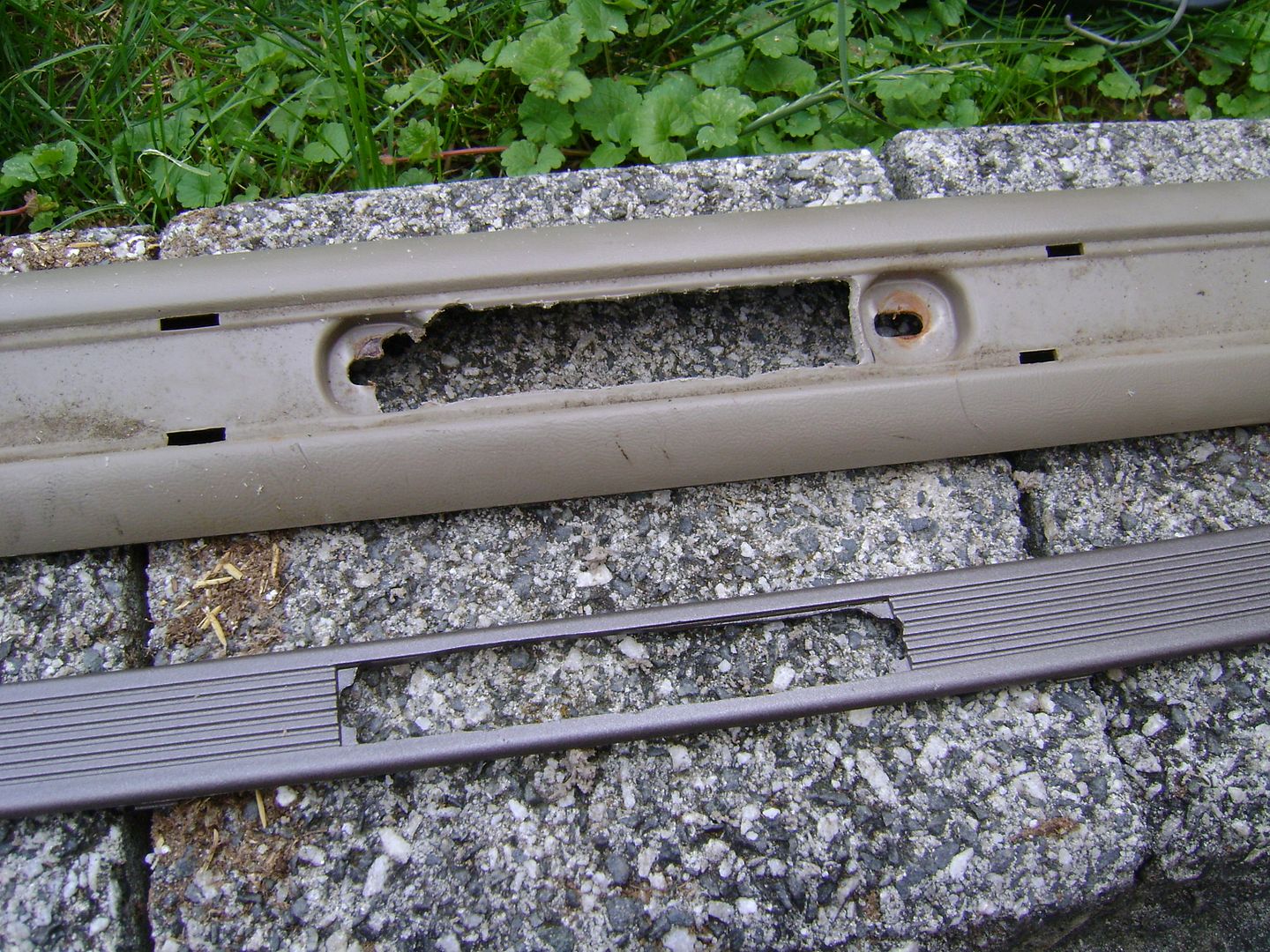

In the meantime, I cut out the area where the Riviera script used to be and the area beneath it in the door sill trim piece.
Lighted door sill panels! DSC05756

Like so - a hole. Also, my carpet appears to need cleaning again pretty badly.
Lighted door sill panels! DSC05757

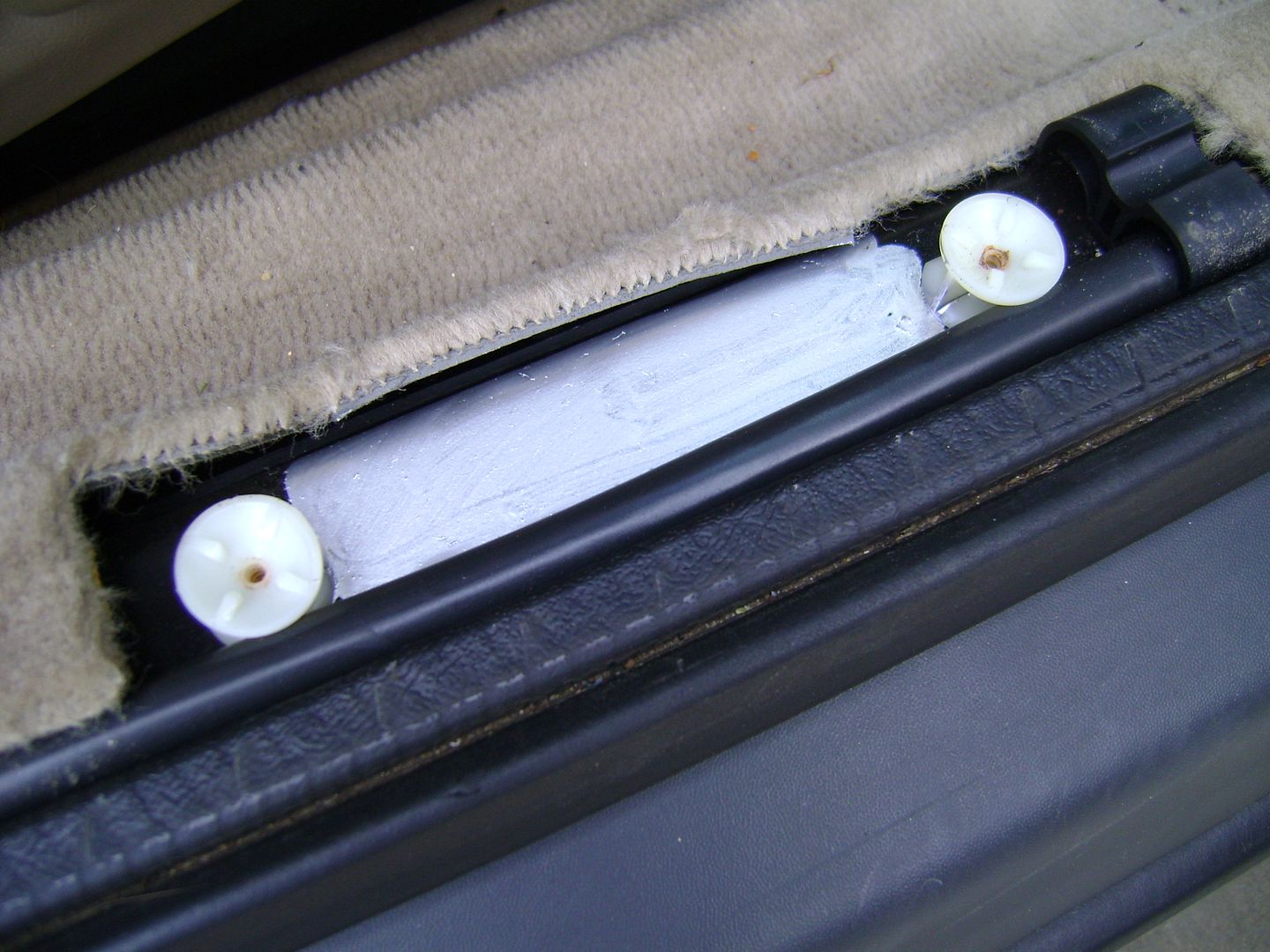

Then, where the lights were going I ended up painting a reflective silver (which I then later replaced with chrome tape for better light reflectivity).
Lighted door sill panels! DSC05758

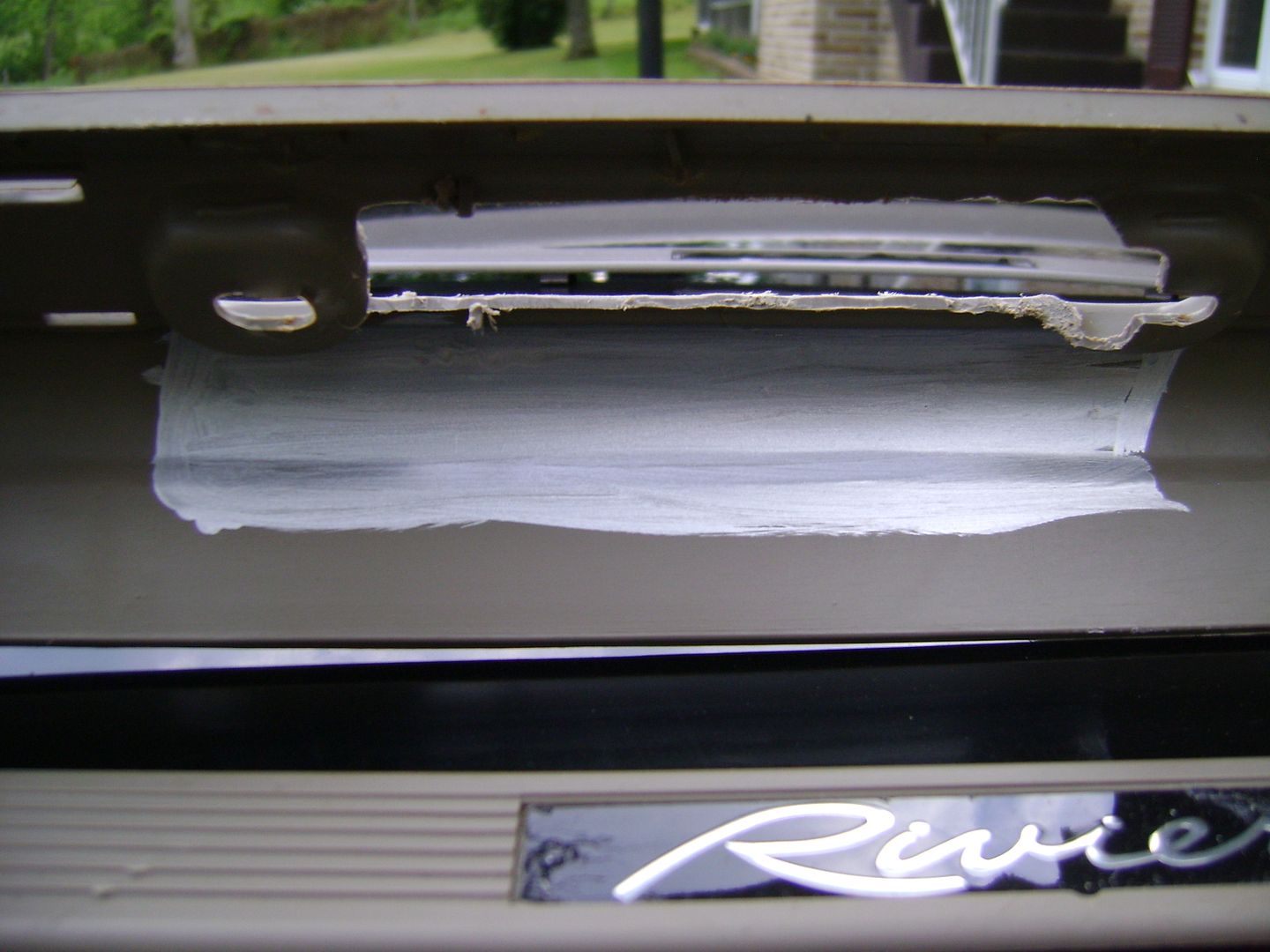

Same thing underneath the door sill trim.
Lighted door sill panels! DSC05759

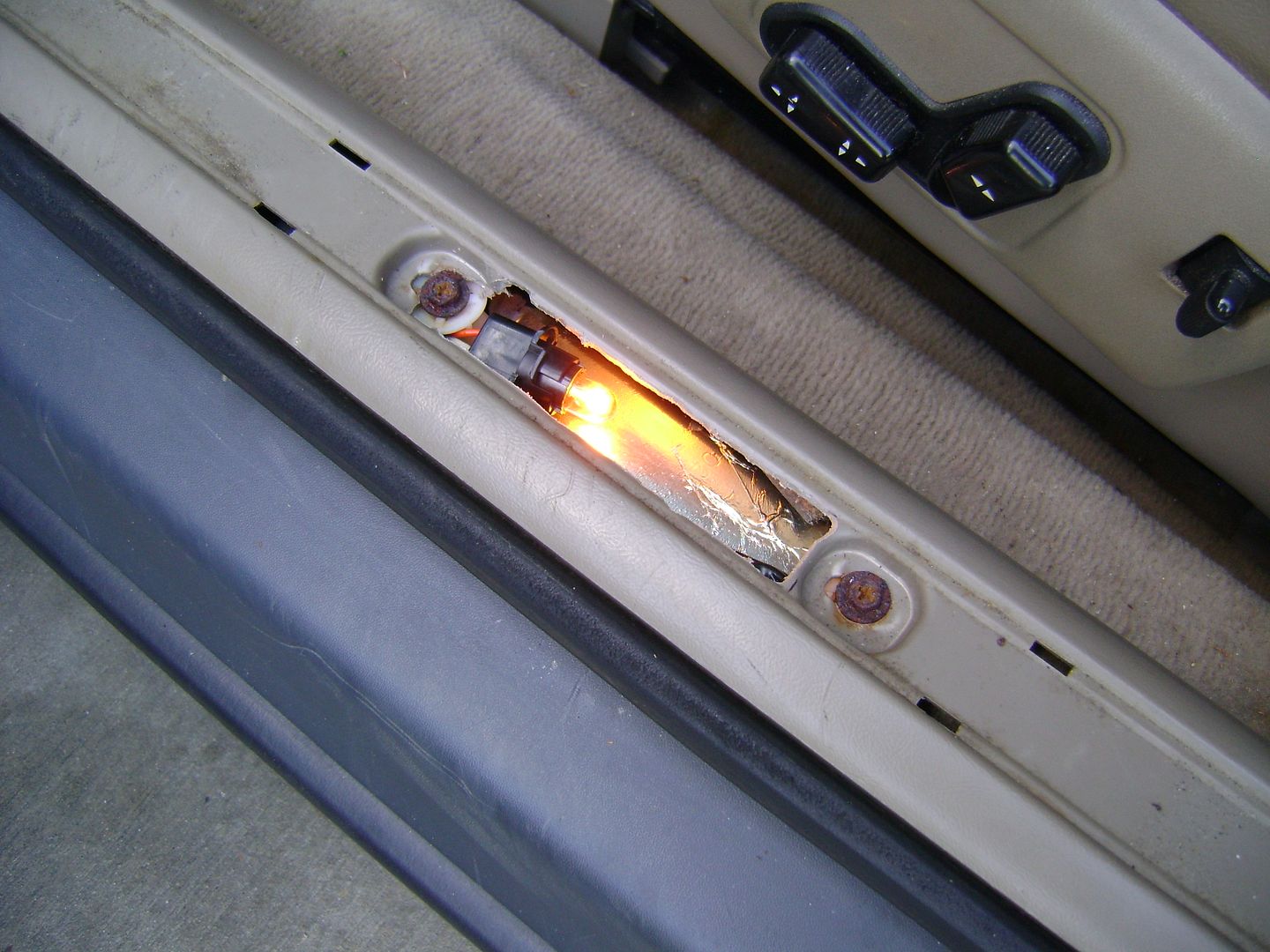

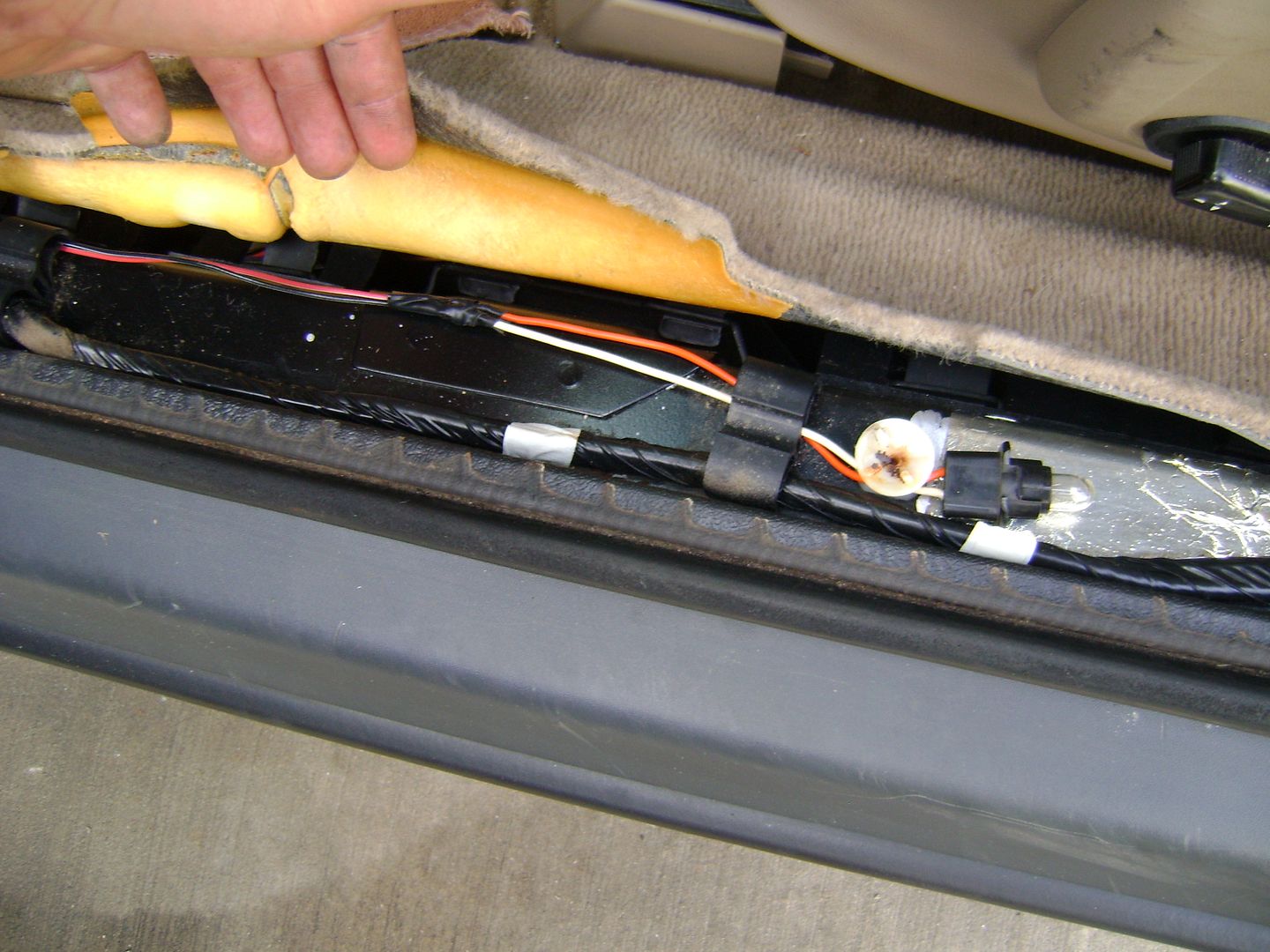

Then I found some old 168/194 bulbs and their holders from my parts Lesabre and wired them in to the floor courtesy lights, so they come on when you open the doors.
Lighted door sill panels! DSC05761

Ta da!
Lighted door sill panels! DSC05765

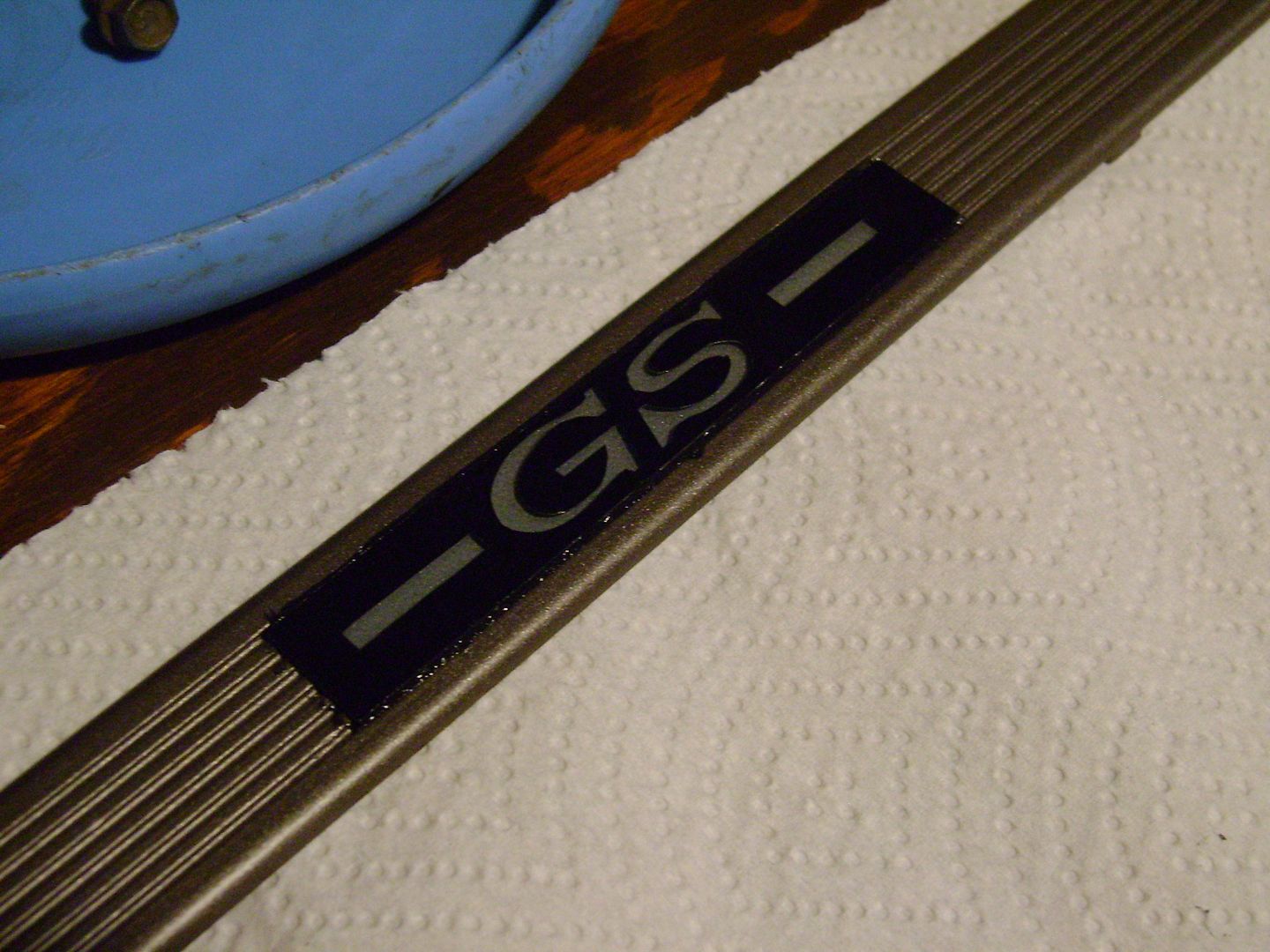

Finished GS emblem and top trim.
Lighted door sill panels! DSC05766

Now, before I show you the finished product I should let you know that I actually ended up going back and scrapping the way I did the light bulb layout. With one bulb, it was bright enough, but very centered. The light wasn't spreading enough and one side was dark because of the light holder. I ended up getting more 194's and soldering them to their wiring so the holders wouldn't be in the way, and added TWO per side, not just one. The light is very even now and looks great!

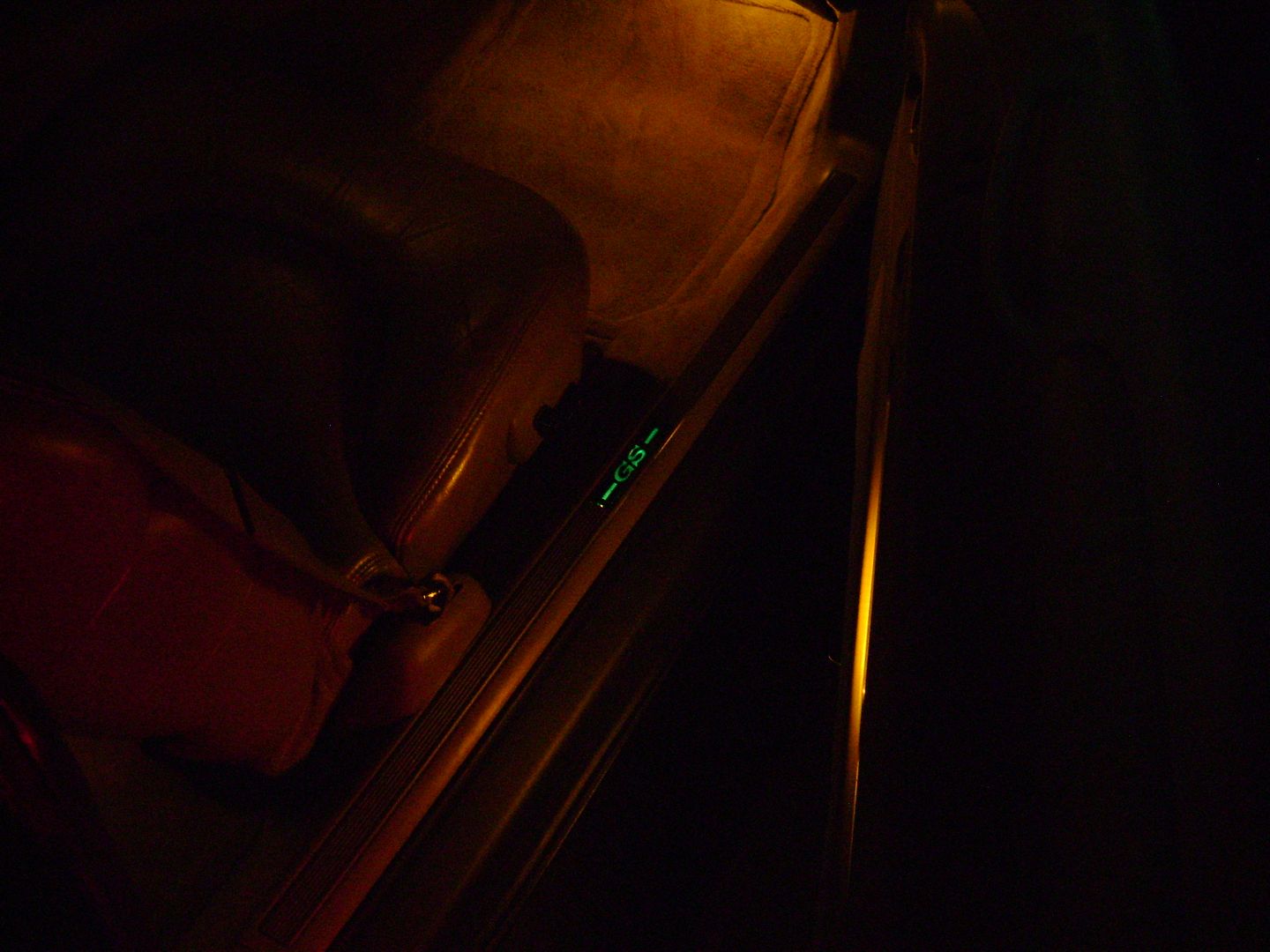

Here's a view when you open the door.
Lighted door sill panels! DSC05770

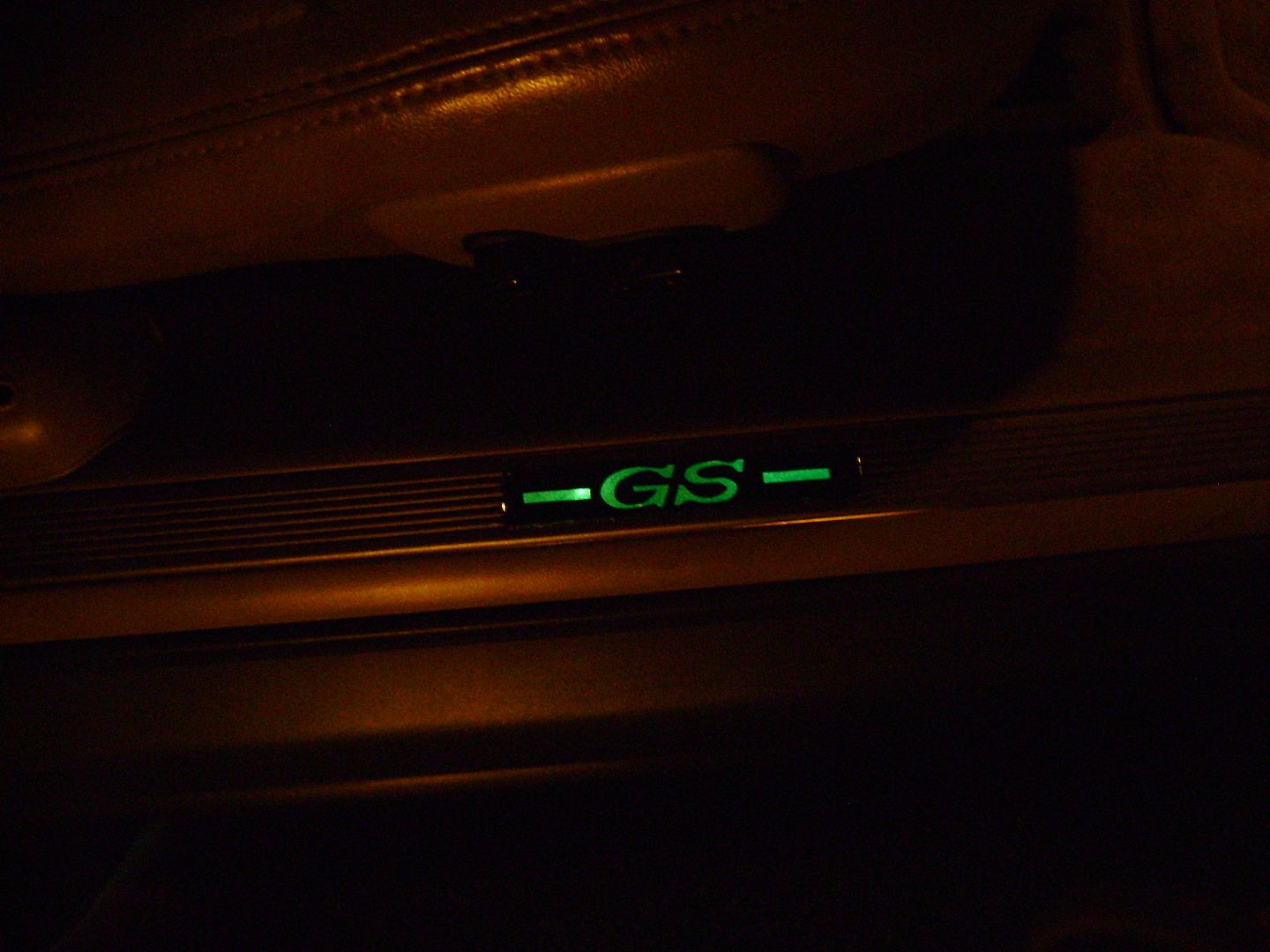

Closer look:
Lighted door sill panels! DSC05769



What do you think? I've very happy with it, it looks way cool in person.

Thanks for looking!
