 Write-Up: How to install an aftermarket SC pulley (Series I)

Go down
+10
1998 Riv
Karma
vendetta
TypetoHarry
deekster_caddy
TType_Riviera
oldsman105
jax95riv
AA
95_River
14 posters
Go to page : 1, 2  Next
AuthorMessage
95_River
Amateur
95_River


Name : Brandon
Location : Columbia, SC
Joined : 2007-01-23
Post Count : 32
Merit : 0

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyWed Jan 24, 2007 12:09 am

Through much research looking for a tensioner pulley, I figured out that the Series I has a much different pulley system. The Series II has 2 idler pulleys under the coil pack which is raised a bit. The Series I has no pulleys under the coil pac, so the belt coming from the supercharger feeds directly into the A/C compressor. Here are some pics of the Series I. I included 2 diagrams from the OEM manual for routing. Sorry, the manual dosent have install info.

Write-Up: How to install an aftermarket SC pulley (Series I) New001
Write-Up: How to install an aftermarket SC pulley (Series I) New002
Write-Up: How to install an aftermarket SC pulley (Series I) New003

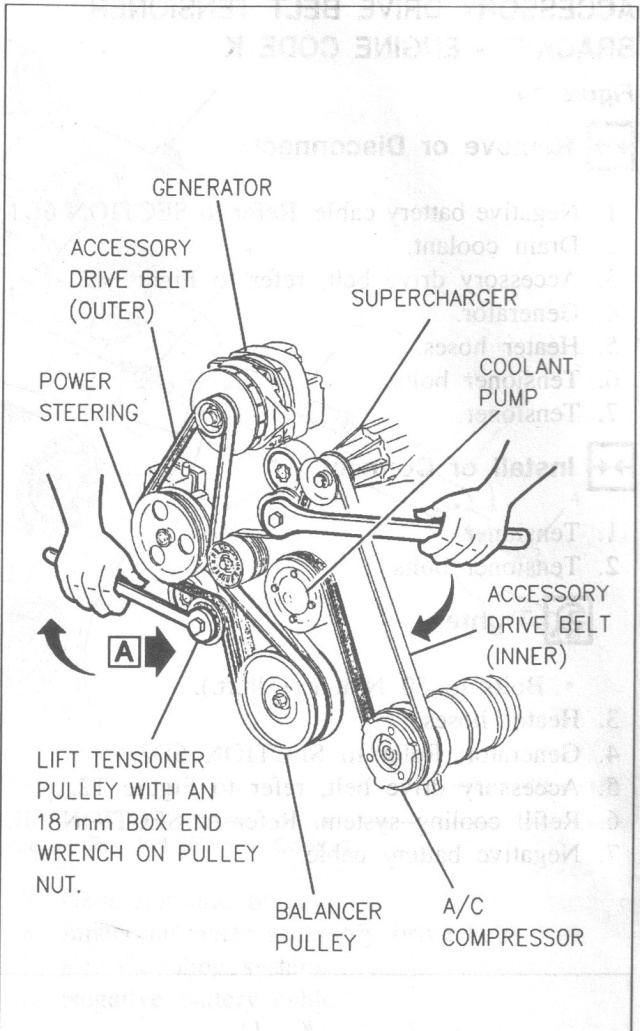

Write-Up: How to install an aftermarket SC pulley (Series I) Engine_Accessory_Belt
Write-Up: How to install an aftermarket SC pulley (Series I) 3800_Supercharged
To change the belts on the 95, I don't have to remove the motor mount like the later models. Just a little more info on the elusive 1995 Riv!
Back to top Go down
AA
Administrator
AA


Name : Aaron
Age : 47
Location : C-bus, Ohio
Joined : 2007-01-13
Post Count : 18452
Merit : 252

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyWed Jan 24, 2007 9:00 am

Thanks so much for this info! This is the kind of stuff we need to know about the Series I SC.

_________________
'05 GTO 6.0L • 6-spd • 95k miles • 0-60: 4.8s • 16.9 avg MPG • Nelson Ledges Lap: 1:26

'95 Celica GT 2.2L • 5-spd • 165k miles • 0-60: yes

'98 SC Riviera • 281k miles • 298 HP/370 TQ • 0-60: 5.79s • ET: 13.97 @ 99.28 • 4087 lb • 20.1 avg MPG • Nelson Ledges Lap: 1:30
3.4" pulley • AL104 plugs • 180º t-stat • FWI w/K&N • 1.9:1 rockers • OR pushrods • LS6 valve springs • SLP headers • ZZP fuel rails
KYB GR2 struts • MaxAir shocks • Addco sway bars • UMI bushings • GM STB • Enkei 18" EV5s w/ Dunlop DZ101s • F-body calipers
EBC bluestuff/Hawk HP plus • SS lines • Brembo slotted discs • DHP tuned • Aeroforce • Hidden Hitch

^^^ SOLD ^^^ frown

'70 Ninety-Eight Holiday Coupe 455cid • 116k miles
^^^ SOLD ^^^ frown
Back to top Go down
http://www.cardomain.com/ride/657082/4
jax95riv
Aficionado
jax95riv


Name : Jack
Age : 62
Location : Oklahoma City
Joined : 2007-01-14
Post Count : 1062
Merit : 6

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyTue Feb 13, 2007 9:31 am

Well I just found out there is no MPS pulley available for the series I no I know I need a puller to take the old one off...how to I press the new one on?
Back to top Go down
http://www.cardomain.com/ride/468780
95_River
Amateur
95_River


Name : Brandon
Location : Columbia, SC
Joined : 2007-01-23
Post Count : 32
Merit : 0

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyWed Feb 21, 2007 10:09 pm

I would guess a rubber mallet, or some sort of wood block & hammer. I'm about to try this myself. I'm not to worries, if I bend the shaft, I can get a rebuilt M62 charger on ebay for around $195. I'll write it up when I do the install.
Back to top Go down
AA
Administrator
AA


Name : Aaron
Age : 47
Location : C-bus, Ohio
Joined : 2007-01-13
Post Count : 18452
Merit : 252

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyWed Feb 21, 2007 10:45 pm

Uh, I'm pretty sure you can't hammer it in. It must be pressed on. There should be a tool available through the SC pulley vendor.

_________________
'05 GTO 6.0L • 6-spd • 95k miles • 0-60: 4.8s • 16.9 avg MPG • Nelson Ledges Lap: 1:26

'95 Celica GT 2.2L • 5-spd • 165k miles • 0-60: yes

'98 SC Riviera • 281k miles • 298 HP/370 TQ • 0-60: 5.79s • ET: 13.97 @ 99.28 • 4087 lb • 20.1 avg MPG • Nelson Ledges Lap: 1:30
3.4" pulley • AL104 plugs • 180º t-stat • FWI w/K&N • 1.9:1 rockers • OR pushrods • LS6 valve springs • SLP headers • ZZP fuel rails
KYB GR2 struts • MaxAir shocks • Addco sway bars • UMI bushings • GM STB • Enkei 18" EV5s w/ Dunlop DZ101s • F-body calipers
EBC bluestuff/Hawk HP plus • SS lines • Brembo slotted discs • DHP tuned • Aeroforce • Hidden Hitch

^^^ SOLD ^^^ frown

'70 Ninety-Eight Holiday Coupe 455cid • 116k miles
^^^ SOLD ^^^ frown
Back to top Go down
http://www.cardomain.com/ride/657082/4
oldsman105
Junkie
oldsman105


Name : Enrique Patino
Age : 39
Location : Queens, New York City
Joined : 2007-01-24
Post Count : 756
Merit : 10

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyThu Feb 22, 2007 1:29 am

No the series one you only have to use a regular 3 jaw pulley puller available at most locations.

1. Remove the two nuts (10mm) that hold the Coolant tank and move the tank out of the way a little. (this step may only be necessary depending on the size of your puller)

2. Grip the old pulley with a large pair of channel locks on the belt. Be careful not to damage the pulley. (use an OLD belt)

3. Loosen the center nut (14mm) and remove. Shouldn't take much torque. The nut is a locknut so it will not turn freely until the nut is half off the stud.

4. Loosen the idler by using a socket on the idler pulley bolt and rotating the idler counter clockwise to release the tension on the belt. Make sure you look at how the belt is threaded on the air Conditioning and other pulleys in case it comes off.

5. Use a 6" three jaw puller to remove the pulley from the SC shaft. Before removing the pulley, Rotate it back and forth to check for play in the coupler. if you feel some looseness you may want to change the coupler also. that will be covered in another segment. One nice thing about the Series 1 ... it doesn't require a special puller because it is not a heavy press fit.

6. Use a thin coating of grease or never seize to coat the shaft. Place the pulley on the shaft making sure you line uf the key and keyway. also make sure you put the pulley on in the same orientation that the old one came off. I can be put on either way but one way will misalign the belts.

7. You will need to lightly... and I mean lightly tap the pulley with a RUBBER HAMMER the start the pulley on the shaft.

8. Once you have a couple of threads showing replace the nut and tighten eith the socket to seat the pulle on the shaft.

9. Replace the belt, making sure thar the belt is on all of the pulleys correctly.

10. Use the Channel locks to hold the pulley and tighten the nut to I believe 37 ft/lbs.

11. Replace the coolant andt and tighten the two nuts.... finish beer and enjoy. 3gears

(stolen from bonnevilleclub)
Back to top Go down
TType_Riviera
Fanatic
TType_Riviera


Name : Rob
Age : 42
Location : ohio
Joined : 2007-03-05
Post Count : 422
Merit : 0

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyTue Mar 06, 2007 8:24 pm

yikes..please do not..beat it on..........thats as bad as beating a harmonic balancer on an engine.....ooof!!!!!
Back to top Go down
http://www.cardomain.com/ride/2131502/1
deekster_caddy
Master



Name : Derek
Age : 52
Location : Reading, MA
Joined : 2007-01-31
Post Count : 7717
Merit : 109

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyWed Mar 07, 2007 9:27 pm

AFAIK the series 1 uses a woodruff key, not a press fit. You should be able to take the retaining nut off and using opposing taps with a soft mallet work the pulley off with no damage. Pulley boys sells different sizes for the series 1.

Good luck!
-Derek
Back to top Go down
TypetoHarry
Amateur



Joined : 2007-09-12
Post Count : 42
Merit : 0

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptySat Feb 09, 2008 2:13 pm

I have a series 1, and I used a block of wood and a hammer.
Back to top Go down
vendetta
Enthusiast
vendetta


Name : Nick
Age : 115
Location : Shakopee, MN
Joined : 2008-09-26
Post Count : 219
Merit : 0

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: I need Specific s/c Pulley Removal Instructions   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyThu Nov 13, 2008 12:06 pm

I see there is a thread on the series 2 engine but nuttin for the series 1....

I was going to try getting my new pulley on the other day with no luck on figuring it out....

also!

it said the series one could be removed with no pulley puller, so if someone could explain that.

and do we have to remove that key in the center?

I took off the 18mm bolt(Or w/e size it was) and then it looked like there was another nut? or else that was part of the OE pulley. I could see the key in the center,

I just need directions, I guess if I gotta go rent a puller I will, but I dont wanna!
Back to top Go down
Karma
Aficionado
Karma


Name : Andrew
Age : 40
Location : Ontario, Canada
Joined : 2008-01-14
Post Count : 1949
Merit : 123

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyThu Nov 13, 2008 12:18 pm

just take the nut off the end. Use an old belt on the pulley with some vicegrips so it doesn't move. Then use a puller to take the pully off. I tried to do it with no puller, but the amount of force required to get the sucker off is alot. I'm not sure why people are talking about renting these pullers, mine cost 10$ to buy. The pulley is keyed, the key should stay on the shaft. And there is no key in the center, thats a centering hole for the pulley puller. If you want to wait, I think i still have the pics left from when i did mine and could put up a writeup when I get home...

_________________
Warning!
Back to top Go down
TypetoHarry
Amateur



Joined : 2007-09-12
Post Count : 42
Merit : 0

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyThu Nov 13, 2008 12:30 pm

1.Remove bolt
2.Get some wood and a hammer
3.Tap it off.

That's what I did.
Back to top Go down
1998 Riv
Expert
1998 Riv


Name : Dave
Age : 64
Location : In The AZ Oven
Joined : 2007-01-17
Post Count : 4502
Merit : 44

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyThu Nov 13, 2008 1:08 pm

You don't need the specialized puller that the Series II requires. Our pulley is pressed onto the shaft, with something like 3000 lbs of pressure. I've read a standard pulley puller from a parts store can be used on Series I if you need to use one to get it off.
Back to top Go down
Karma
Aficionado
Karma


Name : Andrew
Age : 40
Location : Ontario, Canada
Joined : 2008-01-14
Post Count : 1949
Merit : 123

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyThu Nov 13, 2008 2:47 pm

yup, thats what i used. Standard puller. If its never been taken off for the lif eof the car, you probally wont have much luck with a hammer and block of wood though. The first time its on TIGHT!

_________________
Warning!
Back to top Go down
TypetoHarry
Amateur



Joined : 2007-09-12
Post Count : 42
Merit : 0

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyThu Nov 13, 2008 9:40 pm

Mine was never messed with, I just got pissed off and it came off.
Back to top Go down
vendetta
Enthusiast
vendetta


Name : Nick
Age : 115
Location : Shakopee, MN
Joined : 2008-09-26
Post Count : 219
Merit : 0

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyFri Nov 14, 2008 4:35 pm

Well When I was pounding at it, it started to move, but I got scared and tapped it back.

so I wanna resort to the pulley puller way.

what kind of pulley puller should I ask for when I go,

anyone got part #'s or pics or sumn? I wanna make sure I get what I need
Back to top Go down
Karma
Aficionado
Karma


Name : Andrew
Age : 40
Location : Ontario, Canada
Joined : 2008-01-14
Post Count : 1949
Merit : 123

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyFri Nov 14, 2008 5:29 pm

its just a 3 or 4 jaw pulley puller. That can handle a pulley at 2.8" I got a 3" puller. I was going to take a pic and put it up, but it looks like I left my puller at the shop.

Edit: I found it!:
Write-Up: How to install an aftermarket SC pulley (Series I) Puller

_________________
Warning!
Back to top Go down
vendetta
Enthusiast
vendetta


Name : Nick
Age : 115
Location : Shakopee, MN
Joined : 2008-09-26
Post Count : 219
Merit : 0

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyTue Nov 18, 2008 11:30 am

Will I need a different size idler/Tensioner pulley with the use of a 2.5" Pulley?

I know on the pulleyboys website they mention a different size one for sale
Back to top Go down
Rickw
Guru



Name : Rick
Location : Lancaster, MA
Joined : 2008-09-13
Post Count : 6282
Merit : 119

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyTue Nov 18, 2008 11:54 am

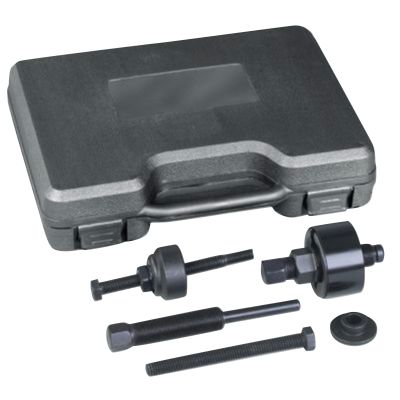

This is the proper tool for power steering pump pulley removal and installation.
I've seen these for as little as $15.00 (Chinese)
and this MATCO one for $70.00
http://www.matcotools.com/ProductImages/MST4530.jpg

I have both, cheapo from Harbor Freight and Matco. Is used for pulleys other than power steering on some GM's and other makes.
Back to top Go down
Karma
Aficionado
Karma


Name : Andrew
Age : 40
Location : Ontario, Canada
Joined : 2008-01-14
Post Count : 1949
Merit : 123

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyTue Nov 18, 2008 12:12 pm

vendetta wrote:
Will I need a different size idler/Tensioner pulley with the use of a 2.5" Pulley?

I know on the pulleyboys website they mention a different size one for sale

If the belt is new, and your tensioner is in good shape you can get away with not changing the idler/tensioner size when dropping to 2.5

_________________
Warning!
Back to top Go down
vendetta
Enthusiast
vendetta


Name : Nick
Age : 115
Location : Shakopee, MN
Joined : 2008-09-26
Post Count : 219
Merit : 0

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptyTue Nov 18, 2008 5:38 pm

^ mmk well ill hope for the best....

if it doesnt work out then ill prolly put the stock pulley back on, kuz I dont have money to throw at this car when im trying to buy some winter mods for the bird
Back to top Go down
robotennis61
Guru
robotennis61


Name : robotennis
Age : 63
Location : las vegas
Joined : 2007-12-17
Post Count : 5562
Merit : 143

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: belt routing diagram?   Write-Up: How to install an aftermarket SC pulley (Series I) EmptySat Jul 25, 2009 8:02 pm

uh..does anyone have a beltrouting diagram for a 95 s/c 3.8 riv? i cant find it in the stupid and tottaly usless piece of ass paper that is the mother f.....g crap ass piece of s...t garbage barf bag of a manual! aghhhh!!! please headbutt
Back to top Go down
99Rivman
Aficionado
99Rivman


Name : Randall
Location : North Carolina
Joined : 2007-01-16
Post Count : 2009
Merit : 90

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptySat Jul 25, 2009 9:31 pm

Write-Up: How to install an aftermarket SC pulley (Series I) Fig_1310
Figure 13 - Accessory Drive Belt Service
.................(Engine Code 1).......................
Page 6A8-13

HTH

Randall

Sorry about the delay. bow
Back to top Go down
http://www.cardomain.com/id/99Rivman
robotennis61
Guru
robotennis61


Name : robotennis
Age : 63
Location : las vegas
Joined : 2007-12-17
Post Count : 5562
Merit : 143

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptySat Jul 25, 2009 9:37 pm

thankya kindly good sir! smile
Back to top Go down
werdstrave
Enthusiast
werdstrave


Name : Drew
Joined : 2011-09-12
Post Count : 153
Merit : 1

Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) EmptySat Nov 29, 2014 1:48 am

Hey guys,
I think I might do this job with the 2.5'' Eaton style pulley from pulley boys for my M62 SC Series I. Was anyone getting a chirping sound from their SC pulley before doing this job? Did the problem go away when replaced? That's the only reason I'm doing this. I replaced belts and pretty sure I narrowed it down to this pulley.
- Drew
Back to top Go down
Sponsored content





Write-Up: How to install an aftermarket SC pulley (Series I) Empty
PostSubject: Re: Write-Up: How to install an aftermarket SC pulley (Series I)   Write-Up: How to install an aftermarket SC pulley (Series I) Empty

Back to top Go down

Write-Up: How to install an aftermarket SC pulley (Series I)
Back to top
Page 1 of 2Go to page : 1, 2  Next

Permissions in this forum:You cannot reply to topics in this forum
Riv Performance ::   Supercharged 3800 Tech :: Series I Engine & Transmission-
Jump to:
