 69GSColorado's dad's 2003 Regal GSX- New photoshoot!!!

Go down
+2
Z-type
69GSColorado
6 posters
AuthorMessage
69GSColorado
Fanatic
69GSColorado


Name : Jordon
Joined : 2011-07-16
Post Count : 406
Merit : 29

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Empty
PostSubject: 69GSColorado's dad's 2003 Regal GSX- New photoshoot!!!   69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! EmptySun Apr 05, 2015 3:49 pm

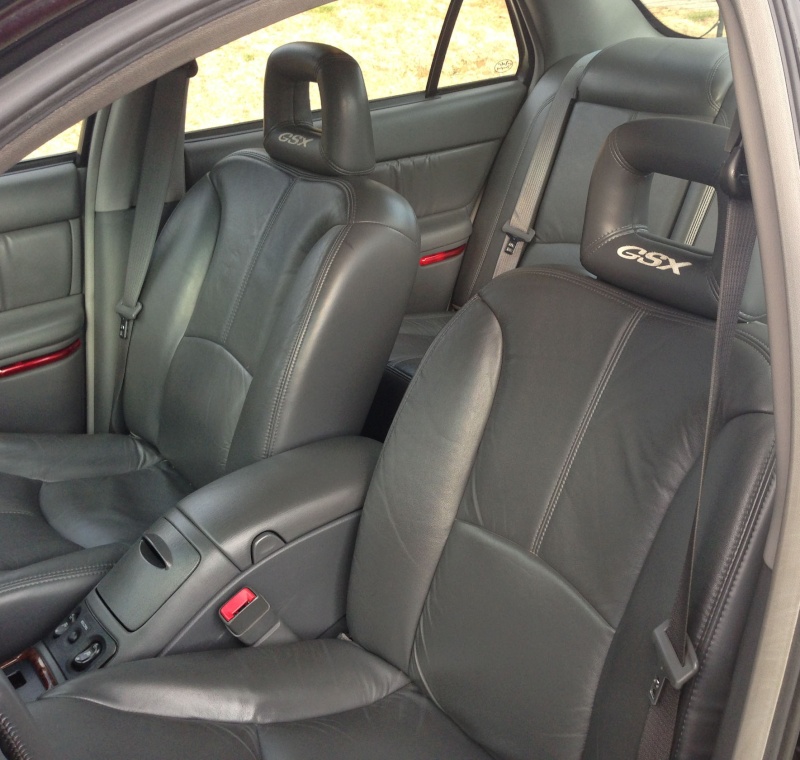

In spirit of Andrew's awesome Regal thread, I wanted to have a chance to show off my dad's GSX and the modifications we've done. It's a 2003 Regal GSX Stage 1 with the sought after dark gray interior.

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Gsx10

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Img_0312

This week I finally convinced Dad to take the plunge and finish upgrading the suspension. It already has the bigger GMPP sway bars and front and rear strut tower braces with Don Rome brackets. Just these simple changes has completely transformed the handling and makes it feel like a MUCH smaller and more nimble car.

Although the car originally came with the GSX lowering springs, the previous owner replaced the front struts with a monroe quick strut/spring assembly and threw away the old springs. Such a pity..

The original springs are still in the rear paired with KYB GR2 struts, but they're not that great for performance. The uneven ride height and unmatching suspension has been driving us crazy since we bought it, but we had other upgrades we wanted to get to first.

I've heard that the Vogtland Springs are very close to the original springs that came on the GSXs, and we both like the subtle 1" drop they provide. The AGX is the only performance strut for W-Body cars, but I hear great things about them when paired with Vogland springs. I scored a killer deal on a new set of Vogtland Springs for $150 shipped and found the struts on sale on Amazon for $402 shipped. KYB is currently running a $40 mail in rebate if you purchase four of their struts, so that will bring the total to $362. Not bad considering it's hard to find them for less than $500 anywhere else.

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Kyb_ag11

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Vogtla11

The only thing left to really upgrade on the suspension is the weak factory rear trailing arms. When we purchased the GMPP handling upgrade kit, it didn't include the upgraded tubular trailing arms. It looks like we will eventually go with the BMR or UMI arms with poly bushings.

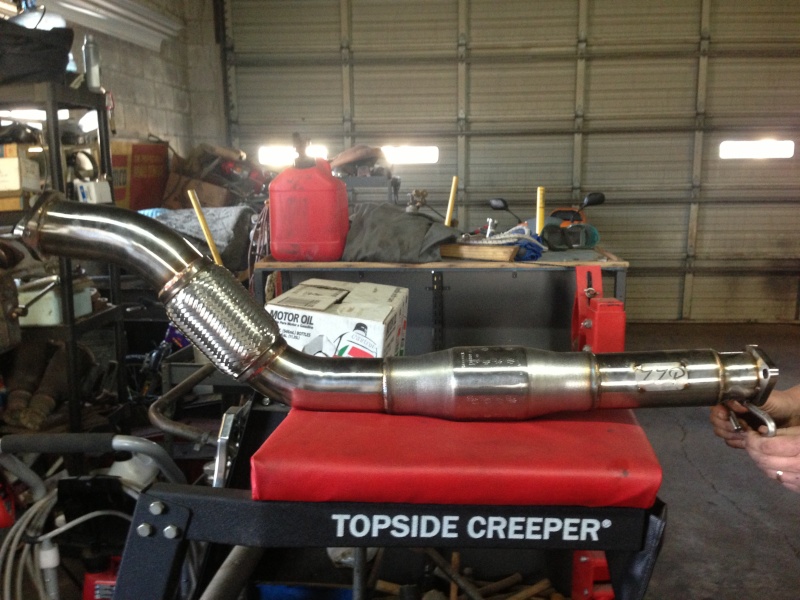

As far as performance goes, the car has the original SLP catback exhaust and SLP cold air intake that came with the Stage 1 upgrade. However, we wanted to take it a step further. We added the Thrasher 3.4" SC pulley that came on the Stage 3s, 180 degree thermostat and Automate 104 copper plugs. Then we purchased a ZZP 1.0 PCM, ZZP 3" catted downpipe and a front PLOG. Just look at that factory U-Bend! It's awful!

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Img_0310

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Img_0311

I simply can't believe how much harder it pulls and it's amazing how much quicker it is than a factory Stage 1. I know the ZZP 1.0 PCM gets a bad rap by some, but we haven't had any issues at all. We're seeing better gas mileage and the improvements made to the transmission shifts and throttle input are simply phenomenal. Let's just say I'm a little jealous, as I've ran the Riv against it on several occasions and I'm always left staring at his tail lights.

As for the factory breaks, they left a lot to be desired. Last Christmas I bought dad a set of red powder coated Impala SS dual piston calipers and 12" zinc coated drilled and slotted rotors. The same company also sold a kit of matching powder coated rear calipers and rotors, so he later bought those as well.

As far as exterior upgrades go, we were able to track down a set of extremely nice GSX wheels and center caps. The original owner apparently tossed the wheels after the chrome started peeling. Again, this guy apparently didn't know what he had. They look absolutely wicked with the brake setup!

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Img_2910

The factory headlights weren't much to look at either, and I found a guy selling a tinted set that was absolutely pristine! Brand new OEM housings and a top notch tint job that looked factory.

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Headli10

I can't wait to feel the handling improvement from the AGX/Vogtland setup. I imagine it's going to make it feel like a completely different car!

I'll work on getting better pictures, but this is all I have at the moment. One is next to his GN and another is beside my Riv. Dad was pretty proud when it took home a trophy this summer at its first car show!

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Img_3010

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Gsgn10

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Twins10


Last edited by 69GSColorado on Thu Jul 23, 2015 4:10 pm; edited 1 time in total
Back to top Go down
Z-type
Aficionado
Z-type


Name : Andrew Zamiska
Age : 37
Location : Cecil, PA - 25 miles south of Pittsburgh
Joined : 2009-06-29
Post Count : 1429
Merit : 63

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Empty
PostSubject: Re: 69GSColorado's dad's 2003 Regal GSX- New photoshoot!!!   69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! EmptySun Apr 05, 2015 4:34 pm

I can't say I've ever seen the dark gray in person. It looks pretty cool! And has to be really rare. Especially on a GSX, no less.

The car looks great...I can't believe all the stuff the previous owner did to it though. What a shame. At least it's in good shape!

My friend Dave had Grand Prix GXP Bilsteins on his 2003 JA Regal. That thing could take hairpin turns at 50mph, I swear. I hope the same for yours!
Back to top Go down
69GSColorado
Fanatic
69GSColorado


Name : Jordon
Joined : 2011-07-16
Post Count : 406
Merit : 29

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Empty
PostSubject: Re: 69GSColorado's dad's 2003 Regal GSX- New photoshoot!!!   69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! EmptyThu Jul 23, 2015 4:10 pm

I recently completed a small photoshoot with the GSX as I was asked to write an article about it in the Buick Bugle. After 10 hours of buffing, polishing and waxing, my hand was stuck in a claw formation for a week straight!

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Dsc_0124

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Dsc_0125

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Dsc_0126

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Dsc_0127

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Dsc_0128

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Dsc_0129

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Dsc_0210

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Dsc_0130

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Dsc_0131
Back to top Go down
Abaddon
Expert
Abaddon


Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4316
Merit : 185

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Empty
PostSubject: Re: 69GSColorado's dad's 2003 Regal GSX- New photoshoot!!!   69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! EmptyThu Jul 23, 2015 4:14 pm

Put your Riv wheels on the Regal.....that thing would look SICK sick

Cool car, dad! I'm jealous.
Back to top Go down
charlieRobinson
Expert
charlieRobinson


Name : Charlie
Age : 39
Location : Knoxville, TN
Joined : 2011-05-17
Post Count : 3924
Merit : 31

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Empty
PostSubject: Re: 69GSColorado's dad's 2003 Regal GSX- New photoshoot!!!   69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! EmptyThu Jul 23, 2015 4:28 pm

Beautiful. Just. Beautiful. bow
Back to top Go down
matt270avian
Expert
matt270avian


Name : Matt
Age : 28
Location : Frederick, MD
Joined : 2012-01-15
Post Count : 2681
Merit : 54

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Empty
PostSubject: Re: 69GSColorado's dad's 2003 Regal GSX- New photoshoot!!!   69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! EmptyThu Jul 23, 2015 5:53 pm

Not a huge fan of the wheels, but the car is so stupid clean that it doesn't even matter.
Back to top Go down
AA
Administrator
AA


Name : Aaron
Age : 47
Location : C-bus, Ohio
Joined : 2007-01-13
Post Count : 18452
Merit : 252

69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! Empty
PostSubject: Re: 69GSColorado's dad's 2003 Regal GSX- New photoshoot!!!   69GSColorado's dad's 2003 Regal GSX- New photoshoot!!! EmptyThu Jul 23, 2015 6:19 pm

Nice car! Wheels are sweet if you like chrome!

_________________
'05 GTO 6.0L • 6-spd • 95k miles • 0-60: 4.8s • 16.9 avg MPG • Nelson Ledges Lap: 1:26

'95 Celica GT 2.2L • 5-spd • 165k miles • 0-60: yes

'98 SC Riviera • 281k miles • 298 HP/370 TQ • 0-60: 5.79s • ET: 13.97 @ 99.28 • 4087 lb • 20.1 avg MPG • Nelson Ledges Lap: 1:30
3.4" pulley • AL104 plugs • 180º t-stat • FWI w/K&N • 1.9:1 rockers • OR pushrods • LS6 valve springs • SLP headers • ZZP fuel rails
KYB GR2 struts • MaxAir shocks • Addco sway bars • UMI bushings • GM STB • Enkei 18" EV5s w/ Dunlop DZ101s • F-body calipers
EBC bluestuff/Hawk HP plus • SS lines • Brembo slotted discs • DHP tuned • Aeroforce • Hidden Hitch

^^^ SOLD ^^^ frown

'70 Ninety-Eight Holiday Coupe 455cid • 116k miles
^^^ SOLD ^^^ frown
Back to top Go down
