Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Sentinal sensor   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptySat Apr 04, 2009 5:51 pm

I want to change the sentinal sensor which controls my headlights turning on at dusk. My question is what is the proper way to remove the vent grill on top of the dash? help
Back to top Go down
albertj
Master
albertj


Name :
Location : Finger Lakes of New York State
Joined : 2007-05-31
Post Count : 8687
Merit : 181

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptySun Apr 05, 2009 12:50 am

If you are going to keep the car any length of time and work on it yourself... please get a manual if you can. Usually can find on Ebay for $50 or less the set, nowadays.

That said -- If you search you will find instructions for talking the dash apart elsewhere on this site. There are some snap in fasteners under the dash pad, and screws on each end.
Back to top Go down
pearlwhite91
Amateur



Name : Kris Carpenter
Age : 45
Location : Sherwood Park Alberta
Joined : 2009-05-25
Post Count : 28
Merit : 2

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: twilight   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptySun Jun 28, 2009 9:28 am

Seeing as how I was given my 91' Riv with no manuals, what does the twilight switch below the panel light dimmer do?
Back to top Go down
deekster_caddy
Master



Name : Derek
Age : 52
Location : Reading, MA
Joined : 2007-01-31
Post Count : 7717
Merit : 109

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptySun Jun 28, 2009 9:31 am

If it's the slider, it should control how long the lights stay on after you shut the car off at night. People who set it to max generally are trying to get themselves to the front door and find their house keys before the lights turn off... Other than that it's all up to your preferences.
Back to top Go down
pearlwhite91
Amateur



Name : Kris Carpenter
Age : 45
Location : Sherwood Park Alberta
Joined : 2009-05-25
Post Count : 28
Merit : 2

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptySun Jun 28, 2009 9:34 am

Cool, thanks! smile
Back to top Go down
Rivlanta
Member
Rivlanta


Name : Craig
Location : Atlanta, GA
Joined : 2009-07-19
Post Count : 60
Merit : 22

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptySat May 08, 2010 8:03 am

Anyone know the photo cell part number for the twilight sentinel (97 Riv)? I've searched through my Service Manuals and can't seem to find it listed. Checked out Ed Morad, AC Delco part suppliers, ebay, etc. with no luck. I would appreciate any suggestions. Thanks!
Back to top Go down
Rickw
Guru



Name : Rick
Location : Lancaster, MA
Joined : 2008-09-13
Post Count : 6282
Merit : 119

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptySat May 08, 2010 4:48 pm

Derek,
Do you know if the 2 Sunload Temp Sensors, that you replaced recently, tie into the twilight sentinel at all.?
Those are the only sensors other than the single Ambient Temp Sensor that are in the forward dash panel.
Or does the sensor in the Rear View mirror have something to do with the twilight sentinel.?

I can't seem to find the info either.
Back to top Go down
Abaddon
Expert
Abaddon


Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4316
Merit : 185

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptySat May 08, 2010 10:00 pm

Rivlanta wrote:
Anyone know the photo cell part number for the twilight sentinel (97 Riv)? I've searched through my Service Manuals and can't seem to find it listed. Checked out Ed Morad, AC Delco part suppliers, ebay, etc. with no luck. I would appreciate any suggestions. Thanks!

The P/N is 914032. I confirmed it also. It's $40 (www.monsterpartsonline.com)
Back to top Go down
Rickw
Guru



Name : Rick
Location : Lancaster, MA
Joined : 2008-09-13
Post Count : 6282
Merit : 119

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptySat May 08, 2010 10:03 pm

Do you know where on the vehicle the sensor is installed.
Back to top Go down
albertj
Master
albertj


Name :
Location : Finger Lakes of New York State
Joined : 2007-05-31
Post Count : 8687
Merit : 181

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptySat May 08, 2010 10:19 pm

it's in GMPD as 'sentinel sensor' their price $34.53, their number 914032 (yes it's 6 digits), with shipping $50.48. Monster shows it for $38.18, also shows picture. Sensor plugs into same harness as the HVAC sunlight sensor. I did not check the price with shipping from Monsterpartsonline.com; the 914032 number works on Monster and brings up the correct part.

Not sure why you could not find it but I have my suspicions:

1) it's not a Ford (Ford puts P/Ns in the service manuals, I don't know who else does
2) you asked others (Morad, Delco, eBay) who have no reason to know the # in the first place
3) you are not aware of how to make GMPD cough up part numbers. What you do is: do the search for the part; when you find it then put it in the cart, then proceed to check out. GMPD actually moves the items to *another* cart and shows the part numbers. You can then see the PNs before you commit to buy.

hope this helps

Albertj

PS: Hi RIck - the sensor is in the upper dishboard and looks like the sun sensor for the HVAC. The HVAC sensor is leftmost and the 'twilite sentinel" is to the right of it as you face front of car.

If you put the P/N 914032 into the lookup box on monster.com you can get to a drawing. The following does NOT work: On the home page put the P/N into the Search By Part Number box, select Buick on the dropdown list, then the parts will come up as listed but no drawings.

WHat works - To see drawings from the home page select the year make and model (say 1998 Buick Riviera) from the dropdown lists, When the catalog comes up THEN put the P/N into the lookup box on the top RIGHT side of the page. 2 listings will come up, one says 'headlight control' and has a View Illustration box in it. CLick that box, you'll get a picture with an index to the cutaway that tells you what's what.
Back to top Go down
BrianEsser
Enthusiast
BrianEsser


Name : Brian Esser
Age : 48
Location : Ohio
Joined : 2010-01-22
Post Count : 168
Merit : 8

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptySat May 08, 2010 10:31 pm

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Ambient_Light_Sensor_Location

Full wiring schematics as well, these are for a 96' but they should be the same...

http://brianesser.com/tech/96/LIGHTING/Twilight_Sentinel_Headlamps_1.JPG

http://brianesser.com/tech/96/LIGHTING/Twilight_Sentinel_Headlamps_2.JPG

http://brianesser.com/tech/96/LIGHTING/Lamp_Control_Module_Connector_Pinout.JPG

http://brianesser.com/tech/96/LIGHTING/Headlight_Switch_Pinout.JPG
Back to top Go down
http://www.brianesser.com
Rickw
Guru



Name : Rick
Location : Lancaster, MA
Joined : 2008-09-13
Post Count : 6282
Merit : 119

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptySat May 08, 2010 10:33 pm

Thanks for the Tip Albert.
Back to top Go down
albertj
Master
albertj


Name :
Location : Finger Lakes of New York State
Joined : 2007-05-31
Post Count : 8687
Merit : 181

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptySat May 08, 2010 10:37 pm

U R Welcome, and a tip of the hat to Brian for posting the real nice drawing.

Albertj
Back to top Go down
Rickw
Guru



Name : Rick
Location : Lancaster, MA
Joined : 2008-09-13
Post Count : 6282
Merit : 119

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptySat May 08, 2010 10:37 pm

What had me confused is my parts book shows the center sensor as "Ambient Temp Sensor" instead of "Ambient Light Sensor".
I need to make a correction to this listing I have.
Thanks for the pictures. I like pictures. At least the ones that are correct.


Last edited by Rickw on Sun May 09, 2010 1:51 pm; edited 1 time in total
Back to top Go down
BrianEsser
Enthusiast
BrianEsser


Name : Brian Esser
Age : 48
Location : Ohio
Joined : 2010-01-22
Post Count : 168
Merit : 8

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptySat May 08, 2010 10:54 pm

All those schematics and pictures are from Alldata.
Back to top Go down
http://www.brianesser.com
Rivlanta
Member
Rivlanta


Name : Craig
Location : Atlanta, GA
Joined : 2009-07-19
Post Count : 60
Merit : 22

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptySun May 09, 2010 6:38 am

Thanks to all...this is the information I needed!
Back to top Go down
deekster_caddy
Master



Name : Derek
Age : 52
Location : Reading, MA
Joined : 2007-01-31
Post Count : 7717
Merit : 109

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptyMon May 10, 2010 12:13 pm

I bought the sensor from Monster, and it seemed very difficult to change at first, then when I actually got the old sensor out I realized just how easy it was to change.

Basically you pull the sensor out through the top and plug the new one in. It's that easy. The hard part is grabbing the sensor to lift it out. The sensor itself is tiny, like changing a 194 light bulb - it just plugs in. If you pull the defrost grille up, you can twist and release the sensor holder, then pull the sensor out the top of it a little easier. There is no easy way to disconnect the wires like with the heat load sensors, and you don't want to.

I was surprised at how easily it went. Sorry I didn't take pics along the way.
Back to top Go down
Rivlanta
Member
Rivlanta


Name : Craig
Location : Atlanta, GA
Joined : 2009-07-19
Post Count : 60
Merit : 22

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptyMon May 10, 2010 6:45 pm

Derek...thanks for the heads-up on this. Are you saying that it is possible to do the replacement without removing the defroster grill, but just a little harder to align the photocell into its socket? If I don't have to remove the defroster grill, I would rather not as my upper dash pad is brittle already from age and I suspect the defroster grill would be as well (I don't want it to crack).
Back to top Go down
deekster_caddy
Master



Name : Derek
Age : 52
Location : Reading, MA
Joined : 2007-01-31
Post Count : 7717
Merit : 109

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptyMon May 10, 2010 8:30 pm

You might. After doing it I thought you would be able to do it right from the top without pulling the grill. Give it a try. The hard part is getting any leverage with the windshield right above the sensor...
Back to top Go down
robotennis61
Guru
robotennis61


Name : robotennis
Age : 63
Location : las vegas
Joined : 2007-12-17
Post Count : 5562
Merit : 143

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptyMon May 10, 2010 9:53 pm

twilight sentinel
i just love that name. reminds me of my old avengers comics...off topic..sorry AA
Back to top Go down
Rivlanta
Member
Rivlanta


Name : Craig
Location : Atlanta, GA
Joined : 2009-07-19
Post Count : 60
Merit : 22

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptyWed May 26, 2010 3:05 pm

Just finished replacing the twilight sentinel photocell on my 97 Riv and thought I would provide a few tips-and-pics for someone else that may need to do this:

1. The part number for the replacement photocell is 914032. (I purchased it from shopgmparts.com for $38.18 plus $9.95 shipping.)
Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 New_photocell

2. To prevent tools and parts from accidentally disappearing down the defroster grill, cut two pieces of cardboard to fit around the front and sides of the photocell, making sure they fit all the way forward butting-up against the windshield.
Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Cardboard

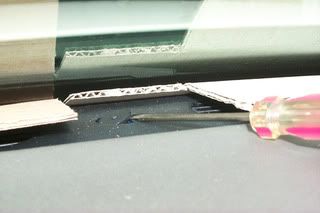

3. With a small flat-tip screw driver placed just under the lip of the cell’s top hat, very gently and evenly pry-up the defective photocell from its socket. (When I did this, the photocell was so old and brittle that it cracked the top hat portion off and I had to use a sharp-pointed tool to pull what remained, out of the socket.)
Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Pry_photocell
Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Broken

4. Note the orientation of the exposed photocell socket terminals.

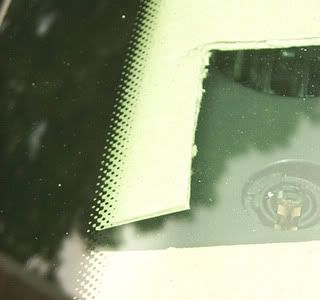

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Socket

5. Using long needle-nose pliers, place the new photocell over the socket making sure the photocell terminals line up with the socket terminals. (The photocell is not polarity-sensitive and can go either way.)

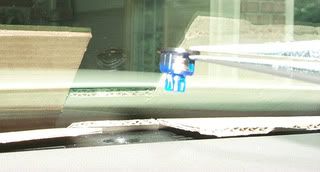

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Insert_new

6. Once the photocell is aligned in the socket, release it and press down on the top hat portion with your finger to make sure the photocell is fully seated.

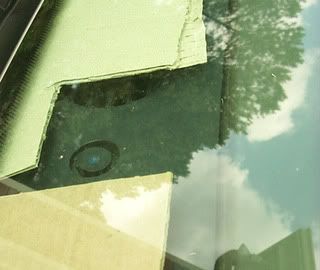

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Installed

7. If testing the twilight sentinel system during the day, place a piece of cardboard over the new photocell to fool it into thinking it is dark outside.

8. Start up your Riv, and with the interior headlight switch pushed-in (OFF), note the headlights, etc. and the interior instrument panel lights should come ON.

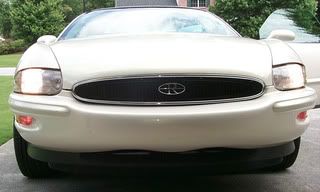

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Headlights_on

9. Remove the cardboard and note that very shortly your headlights and instrument panel lights go OFF.

10. Now have someone assist you by placing your Riv in NEUTRAL (or any gear other than PARK) and note that your headlights are OFF and your daytime running lamps (actually your bright headlights only) are ON.

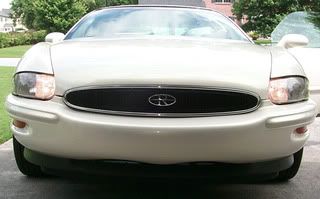

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Daylight

11. Hopefully now your twilight sentinel system is as good as new. If it's still giving you problems, check the Lamp Control Module and/or instrument panel Headlight Switch.

Hope this helps!


Last edited by Rivlanta on Sat Feb 26, 2011 2:36 pm; edited 1 time in total
Back to top Go down
Eldo
Expert
Eldo


Name : Mark
Age : 59
Location : West Salem, Oregon... FINALLY
Joined : 2009-04-09
Post Count : 3176
Merit : 104

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptyWed May 26, 2010 3:44 pm

Rivlanta wrote:


2. To prevent tools and parts from accidentally disappearing down the defroster grill, cut two pieces of cardboard to fit around the front and sides of the photocell, making sure they fit all the way forward butting-up against the windshield.
Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Cardboard


Now THAT is uncommonly common sense! thumbsup

Great writeup, Craig, deserving of the coveted "Green Ribbon" (+) wink
Back to top Go down
MTRiviera
Rookie



Name : Rick
Age : 67
Location : Montana
Joined : 2010-10-06
Post Count : 16
Merit : 1

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Need some headlight help   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptyWed Oct 06, 2010 11:33 pm

New guy here. The Riv. is my wifes' ride, but I get to drive it now and then 'cause I get to maintain it. Lately (last 5-6 months) the headlights have been acting up. The lights would progressively take longer than normal to come on in the evening. Then, driving under lit up portions of the road they would shut off. The dash lights would remain on, but I would have to pull the light switch to get the headlights to come back on. Last Saturday, coming back from a trip, on a pitch black night, on a two lane hi-way, dodging deer, going around a curve, everything went black, headlights,and interior lights. Seemed like forever as I hit the brakes and went for the switch. Got lights back on while luckily staying on the road. My searching shows that it could be a few things, with the Light Contol Module being one possible place to look. Any suggestions, trouble-shooting ideas or any help woiuld be greatly appreciated! I am just glad that my wife wasn't behind the wheel.
Regards, Rick
Back to top Go down
Abaddon
Expert
Abaddon


Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4316
Merit : 185

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptyWed Oct 06, 2010 11:37 pm

Sounds like your Ambient Light sensor might be going (is) bad. It's that little bulb lookin thing in the middle of the dash pad. That lil guy is responsible for detecting proper lighting conditions for the Auto lights to go on and off; The LCM turns 'em on and off via that sensors' input.
Back to top Go down
MTRiviera
Rookie



Name : Rick
Age : 67
Location : Montana
Joined : 2010-10-06
Post Count : 16
Merit : 1

Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 EmptyWed Oct 06, 2010 11:41 pm

Abaddon, if it is the culprit, what does the r&r entail?
Back to top Go down
Sponsored content





Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty
PostSubject: Re: Write-Up: Replacing Twilight Sentinel Photo Cell   Write-Up: Replacing Twilight Sentinel Photo Cell - Page 2 Empty

Back to top Go down

Write-Up: Replacing Twilight Sentinel Photo Cell
Back to top
Page 2 of 4Go to page : Previous  1, 2, 3, 4  Next
 Similar topics
-
» Looking for a headlight twilight sentinel photo cell.
» FAQ: Interior Lighting Questions (Dash/Guage Color)
» Random Hood light and twilight sentinel issue
» Write-Up: Replacing Alternator
» Write-Up: Replacing Injectors (Series I)

Permissions in this forum:You cannot reply to topics in this forum
Riv Performance ::   General Tech :: Interior-
Jump to:
