 PCV system - modification options

Go down
+5
albertj
deekster_caddy
Hometown Hero
Karma
turtleman
9 posters
AuthorMessage
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

PCV system - modification options Empty
PostSubject: PCV system - modification options   PCV system - modification options EmptySun Jan 30, 2011 6:32 pm

I looked but didn't see any dedicated thread on this. The focus of this thread are: How exactly does the PCV system work on an unmodified 3800 S/C, What can be done to overcome issues like blocked passageways due to other modifications like throttle bodies and intercoolers, and what can we do to improve the PCV system?

PCV function

Just to start out, the PCV system does one thing. It allows the crankcase vapors produced to be circulated and extracted from the crankcase in controlled currents within a closed circuit. The PCV circuit is very simple. What makes it seem confusing is its spacial configuration.

PCV system - modification options 3800pcv

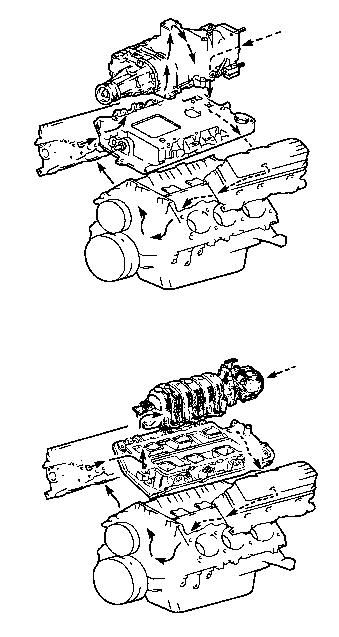

Here's a diagram of the PCV circuit flow.

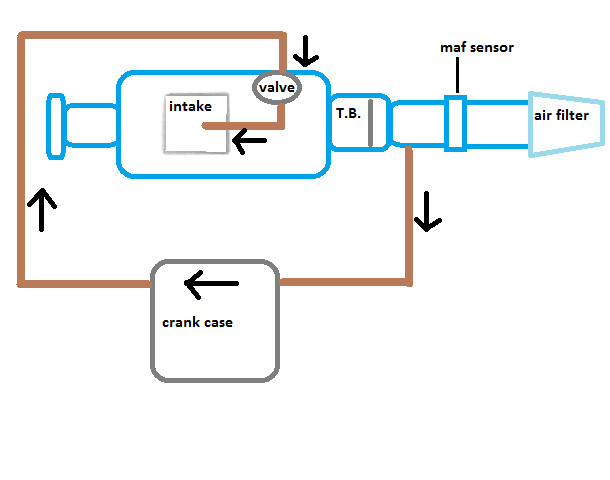

PCV system - modification options PCVcircuit
Here's another I made for the sake of understanding the PCV circuit.
Under typical driving conditions, that is what's going on.

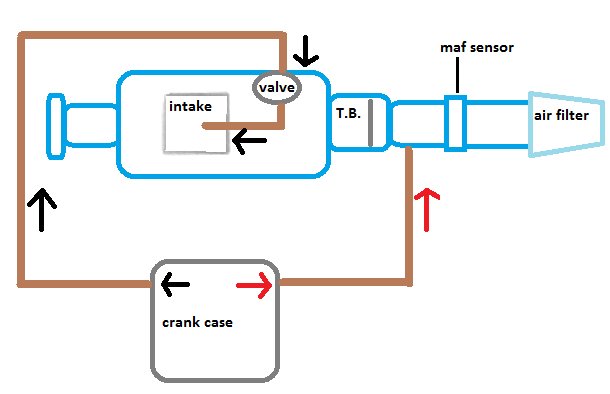

PCV system - modification options PCVcircuitunderboost
Here's what starts to happen when the intake manifold is in ambient pressure and more so with boost. The PCV valve bleeds the pressure some but there's probably almost as much air going backwards through the inlet side into the intake again. Many people that have turbo cars actually put another oil catch can at that spot to manage the vapors on both sides of the circuit since you have two vulnerable spots.

I'll add more later.


Last edited by turtleman on Sun Jan 30, 2011 7:48 pm; edited 1 time in total
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

PCV system - modification options Empty
PostSubject: Re: PCV system - modification options   PCV system - modification options EmptySun Jan 30, 2011 7:36 pm

PCV circuit obstructions

There's a few common modifications that can obstruct the PCV circuit and if you don't do something about it, the crank case will be basically air-tight, that is until something lets go. That would cause things like oil starvation, sludge buildup, etc. What you would likely notice right away on this motor is the high-pitched noise and an intake gasket or oil seal busting in a hurry.

The modifications that block the circuit are:
*some throttle body adapters - blocks the PCV inlet on gen III superchargers
*some intercooler cores - blocks the passageway between the supercharger and the lower intake in one or two places

Basically, this issue can be overcome by either reconnecting the blocked area by adding a new passage for it either externally or internally, or use a breather. The breather is going to virtually eliminate the PCV system and simply give the crankcase a free two-way path to the atmosphere. Something else to understand is that you can have slightly different things going on depending on exactly where the blockage is in the PCV circuit. For example, if you have the PCV inlet blocked off on a gen III blower because of a throttle body adapter, you have a totally sealed crank case at idle (bad) but under boost, the PCV valve is actually opening slightly and letting air bleed out of the crank case into the intake manifold. In this case, if you use a breather, your PCV valve actually still works like stock. On the other hand, if you are running an intercooler core that blocks both passages between the blower and the lower intake manifold (my WBS gen V core does this) and then you add a breather, your crankcase will be safe with a breather but the PCV valve will not work at all. The point is you want to be aware of exactly what is going on before you mess with it.

The breather idea is the safe and simple way but definitely not ideal for a couple reasons. Firstly, if you refer back to the diagram I drew, you can see the PCV inlet is situated after the maf sensor so that tells you the PCV airflow is metered air. By using a breather and making no other changes, you are introducing unmetered air to the engine's intake which will throw off the tune (mostly during idle) a tiny bit. It's not a big deal but something to consider, especially if you're really trying to tweak your tune in. The other concern with running a breather in place of a closed PCV system is that you're just keeping the crank case at pretty much atmospheric pressure under all conditions. It's better to have a slight vacuum in the crank case in order to do a better job of evacuating these vapors more quickly and reduce oil foaming and sludge buildup. The PCV valve does the job of maintaining this ideal crank case pressure. Another issue to note is that a breather is not necessarily emissions compliant since it's just going to be throwing crank case vapors (hydrocarbons, etc) into the atmosphere any time you're in boost.
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

PCV system - modification options Empty
PostSubject: Re: PCV system - modification options   PCV system - modification options EmptySun Jan 30, 2011 8:22 pm

Improving the PCV system

The PCV system has the inherent problem of circulating oil vapors from the crank case into the engine's air intake. This sucks for a few different reasons. Oil accumulates all over the intake tract and dirties things up. If you have an intercooler, this oil also builds on the core fins making it more restrictive and less affective in cooling. A bigger problem is that once oil gets into the combustion chambers, it acts like a very low octane fuel potentially causing spontaneous detonation, and can cause hot spots which causes the same problem.

There is a lot on the internet and a lot of opinions about how you can improve the PCV system for high performance engines but for now, I just want to get to reducing the oil consumption as it is indisputably bad. The most popular way to try to control the amount of oil getting into the intake via the PCV system is using an oil-separator aka an oil catch can. These can be purchased from lots of different places but basically it's a small canister that connects in-line with your PCV circuit and it condenses the PCV air so that the oil collects at the bottom and the cleaner air moves on to the engine's intake. The design varies from product to product but the better ones usually have media baffles to pick up the oil better. IMO a bigger can is better and the cooler it stays, the better. Since a catch can is basically a resovoir collecting oil all the time, you have to drain it from time to time. I would imagine this additional maintenance, although easy, might be one reason why most cars don't have PCV oil separators from the factory.

PCV system - modification options PCVcircuitwith1can

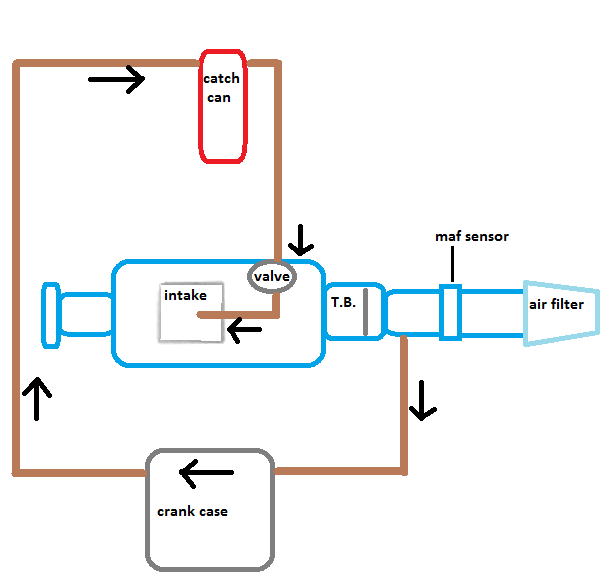

Here's my diagram modified with a catch can. If you actually do this on your car, it is a bit trickier to do than the diagram makes it out to be because of the location of the PCV valve on the 3800. It all depends on your setup though.
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

PCV system - modification options Empty
PostSubject: Re: PCV system - modification options   PCV system - modification options EmptyMon Feb 21, 2011 6:41 pm

Just posting one option for a PCV can location

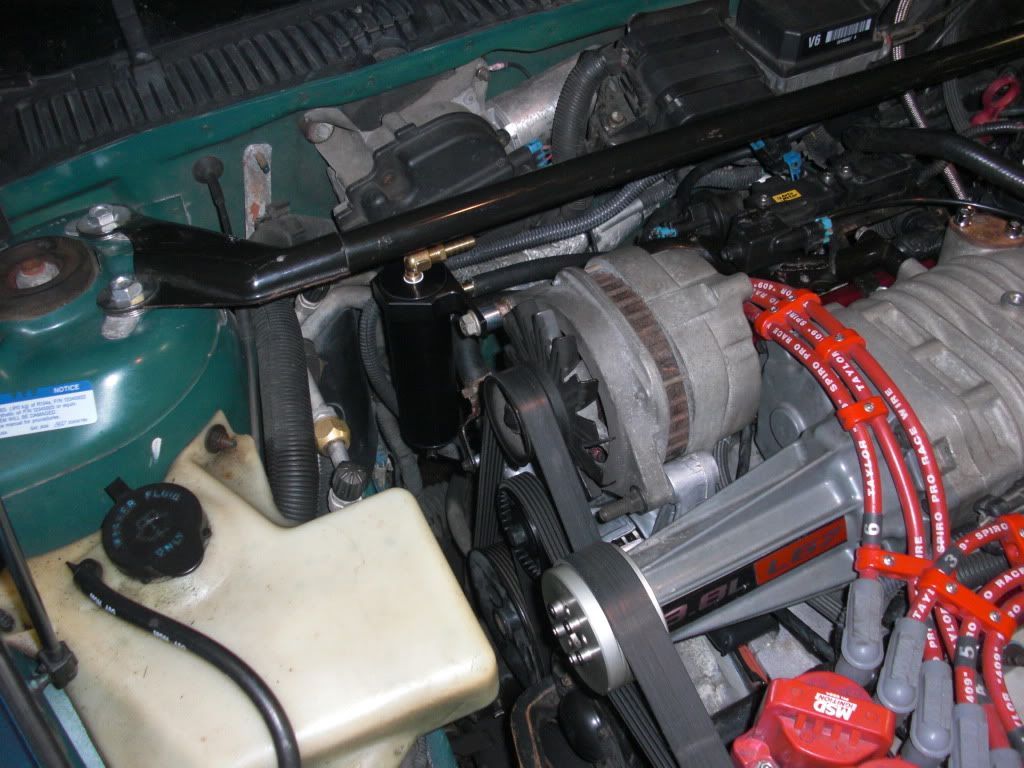

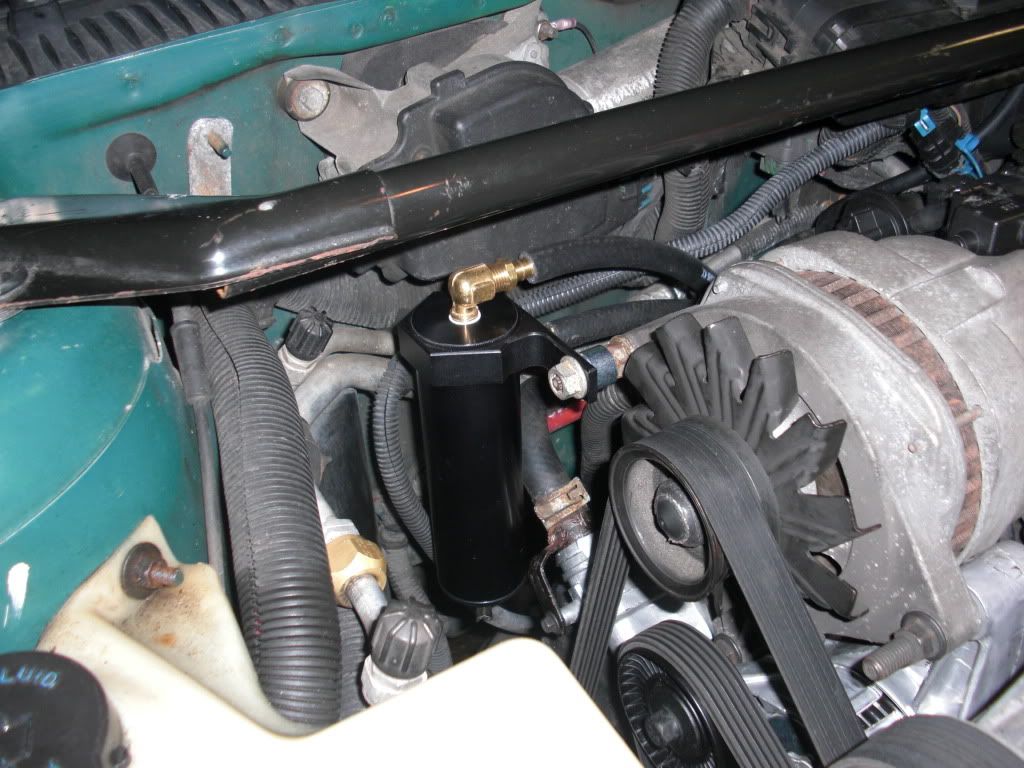

This is where I'm putting mine.
I got this one.

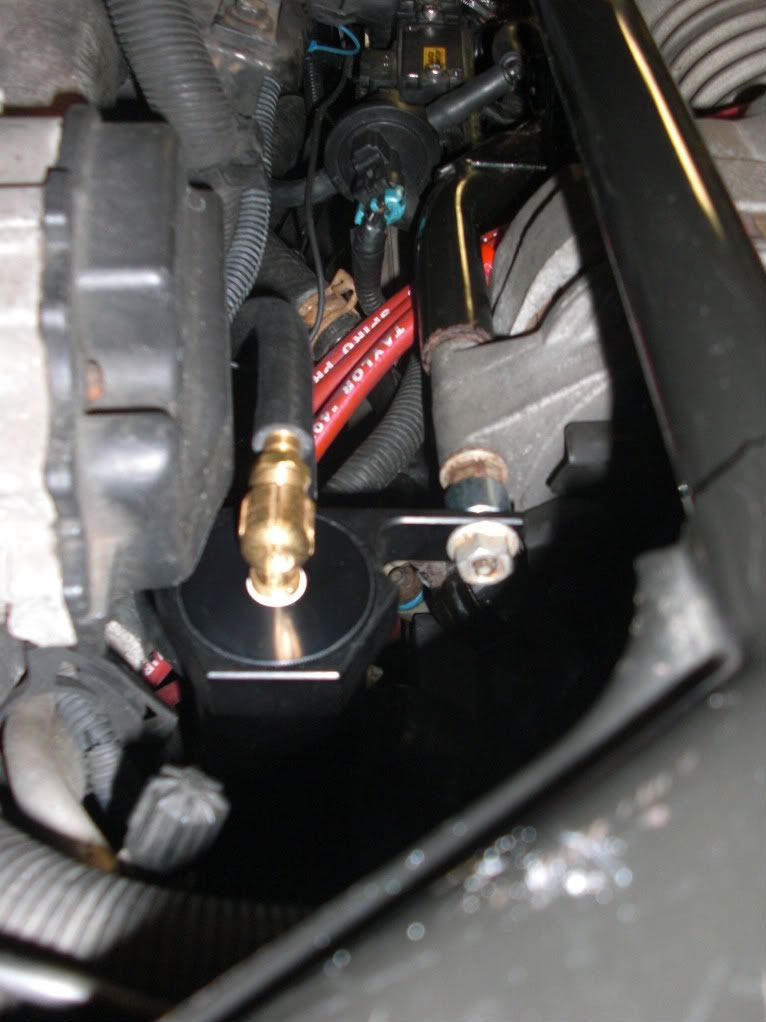

PCV system - modification options CIMG2939
PCV system - modification options CIMG2941
PCV system - modification options CIMG2942
PCV system - modification options CIMG2943
You can see it but it really doesn't stick out at all and it's super easy to get to the drain plug or remove it for rear spark plug changes and stuff. It's also in a relatively cool area which is a good thing for the oil condensation happening in the can.

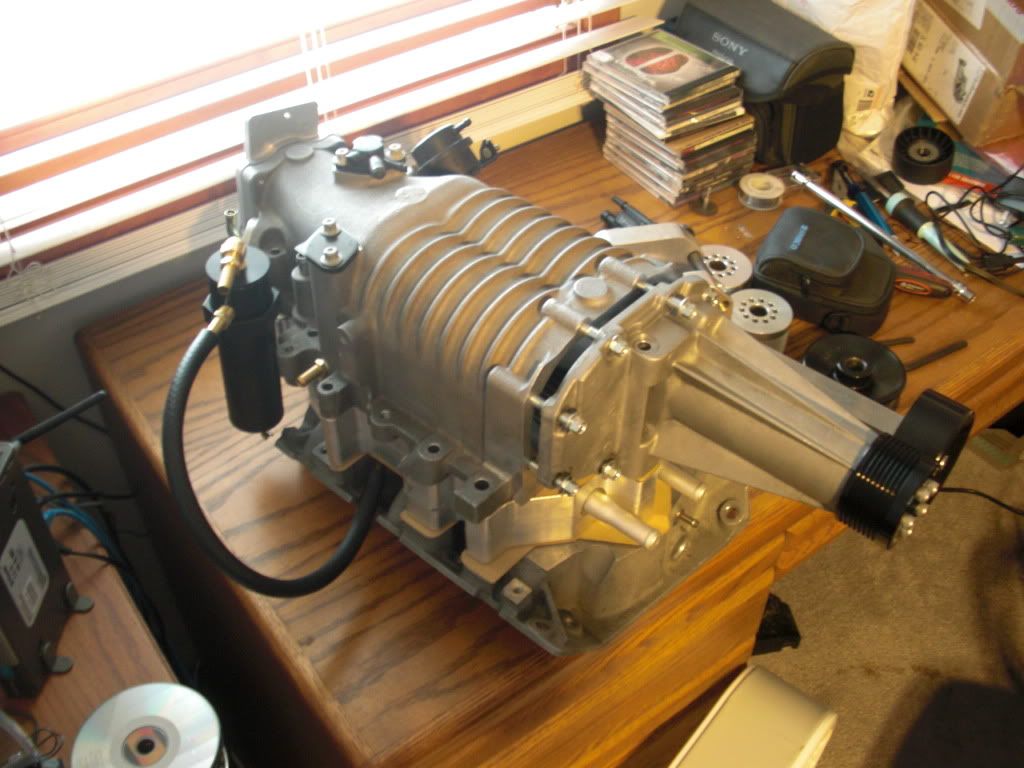

PCV system - modification options CIMG2932
In this picture, you can see how the catch can is being connected to the engine. The hose in the picture is sitting on the LIM fitting and the other fitting on the s/c is not connected. Also that might be another mounting option for someone that's running a genV and no EGR but I haven't 100% checked fitment. The bracket is mounted to the EVAP port.
Back to top Go down
Karma
Aficionado
Karma


Name : Andrew
Age : 40
Location : Ontario, Canada
Joined : 2008-01-14
Post Count : 1949
Merit : 123

PCV system - modification options Empty
PostSubject: Re: PCV system - modification options   PCV system - modification options EmptyMon Aug 29, 2011 2:45 pm

X-post from my showroom since its related info and will show up in searches here.

The PCV breather is pretty interesting. I wanted something to keep the oil vapor out of the intake and also wanted something that can bolt right into the stock location. My prototype is made with Delrin and works very very well. Basically, it replaces the normal PCV cover, and routes out a line out to a filter/catch-can and then back in again.
PCV system - modification options IMGP4521

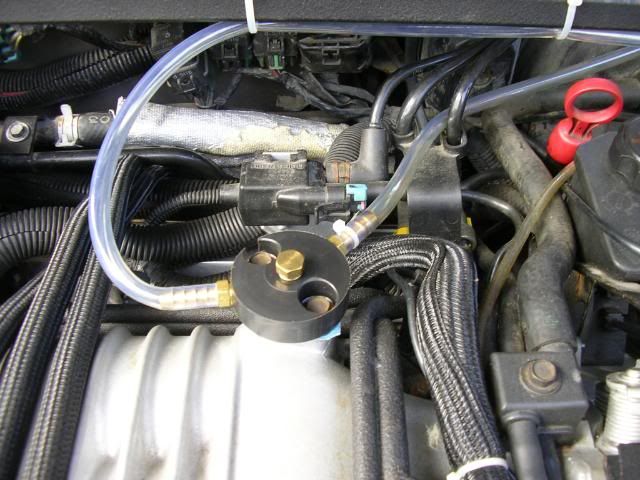

Here we see the new cap. The next version I think I would have the hose barb both facing to the right. I did it on both sides at first because I was going to have the catch can in the middle at the back, but then decided that an oil can right over the rear exhaust manifolds might not be the best way to do things. So i moved it to the side.
PCV system - modification options IMGP4524

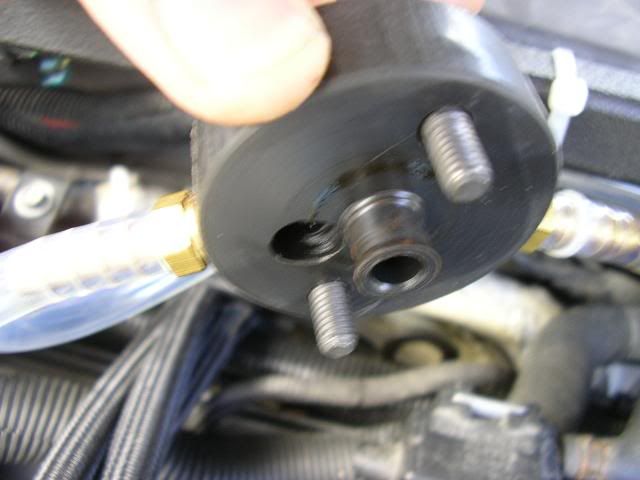

The underside has a machined nub for the bit of hose that connects to the outlet of the PCV valve. Clearances make this almost touching the valve when the spring is fully compressed.
PCV system - modification options IMGP4528

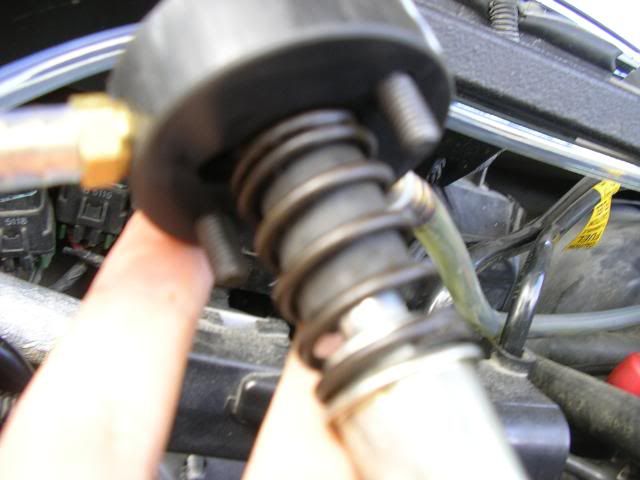

The whole assembly looks like this. The hose slides a bit tighter when the spring compresses and the cap is screwed down.
PCV system - modification options IMGP4527

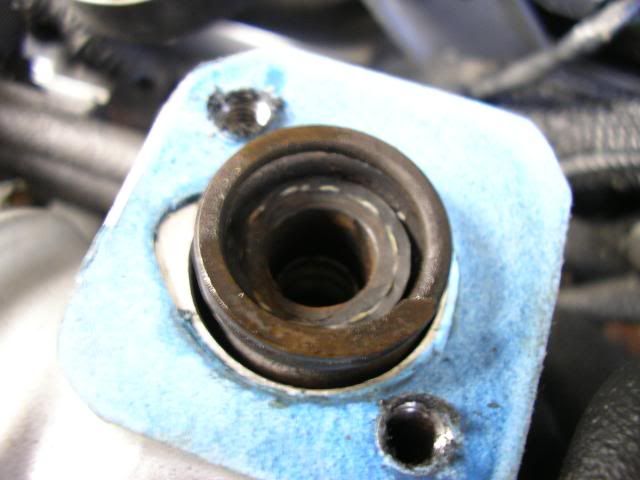

A wee bit of cutout gasket maker, with the PCV in and hose on it.

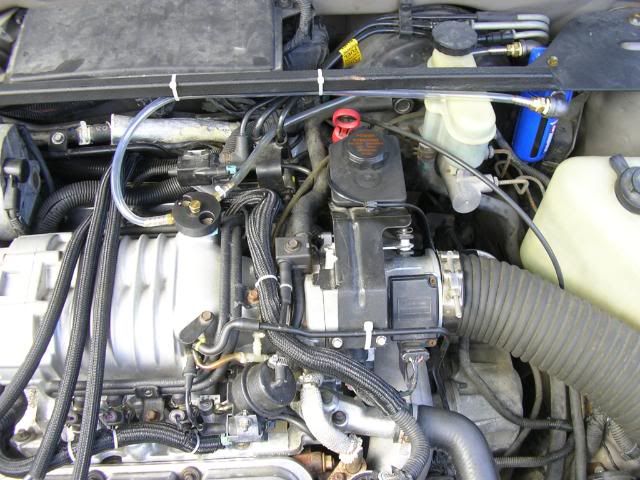

PCV system - modification options IMGP4523
And the whole assembly. Eventually I'll change the clear tubing to some nice thick black vacuum line.
PCV system - modification options IMGP4522
It actually intercepts a good amount of oil. There is almost a 1/4" of oil in the filter. I've done one 2 hour drive, and maybe 4 in town trips since installing.(usually pretty spirited driving..well ok, tons of WOT..)

Overall I'm thrilled with the results. It bolts right in, and does its job. I might do a future version with the barbs both facing the same direction, no plug in the top, and do some nicer chamfering on the edges. This was really just a quick prototype. So who else wants one? They only take a couple of hours to make.
Back to top Go down
Hometown Hero
Junkie
Hometown Hero


Name : Klix
Age : 46
Location : Barrhead, Alberta Canada
Joined : 2009-11-18
Post Count : 807
Merit : 16

PCV system - modification options Empty
PostSubject: Re: PCV system - modification options   PCV system - modification options EmptyMon Aug 29, 2011 2:52 pm

ME WANT 1! Let me know when your ready to ship/sell.
Back to top Go down
Karma
Aficionado
Karma


Name : Andrew
Age : 40
Location : Ontario, Canada
Joined : 2008-01-14
Post Count : 1949
Merit : 123

PCV system - modification options Empty
PostSubject: Re: PCV system - modification options   PCV system - modification options EmptyMon Aug 29, 2011 4:08 pm

I'll make you one next time I'm back at the machine shop. Probably within a few weeks. You supply your own oil filter/separator and barbs. I'll tap the Delrin for 1/8" NPT. Personally I'm using 1/8"NPT thread-to-1/4" barbs and 1/4" ID hose. Runs well with no strange sucking or whistling sounds.

I'm thinking this one will look like above, but with no brass top plug, hose barbs both facing to the right, nicer finishing of the machining, and proper bolt counter-sinks.

You will probably want to make some kind of gasket, or just RTV. Also depending on what oil separator you use, you might have to plug off the bottom drain. You're on you own for that part. And don't torque the cap too tight, since Delrin is a softer composite and will dent a bit.

Its yours for the price of shipping.
Back to top Go down
Hometown Hero
Junkie
Hometown Hero


Name : Klix
Age : 46
Location : Barrhead, Alberta Canada
Joined : 2009-11-18
Post Count : 807
Merit : 16

PCV system - modification options Empty
PostSubject: Re: PCV system - modification options   PCV system - modification options EmptyMon Aug 29, 2011 6:43 pm

Sounds like a bargain to me!
Back to top Go down
Karma
Aficionado
Karma


Name : Andrew
Age : 40
Location : Ontario, Canada
Joined : 2008-01-14
Post Count : 1949
Merit : 123

PCV system - modification options Empty
PostSubject: Re: PCV system - modification options   PCV system - modification options EmptyThu Nov 03, 2011 4:07 pm

So I have an update on my PCV modification.

3 months with it on, usually driving 20 minutes a day, in-town, lots of hooning, and WOT.

Picked up about 1/3 of the canister. o_0

PCV system - modification options P1030348

I have nothing to compare it to, but I've read that on other engines that are under boost people are always very surprised how much gets picked up. Its also not too inconceivable that an engine with as many miles, years, and boost as mine would be experiencing blow-by.

PCV system - modification options P1030350

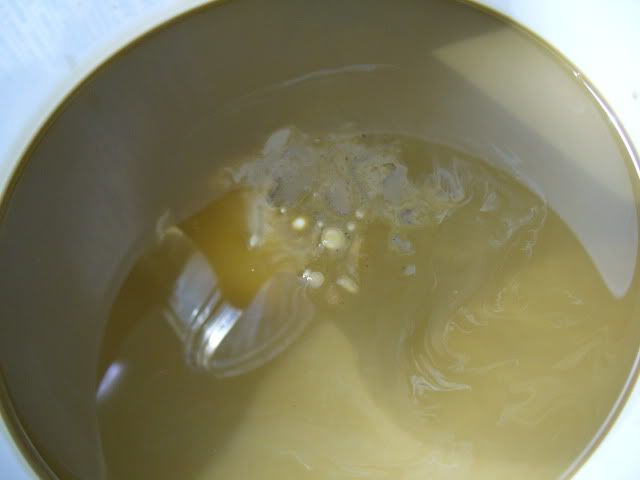

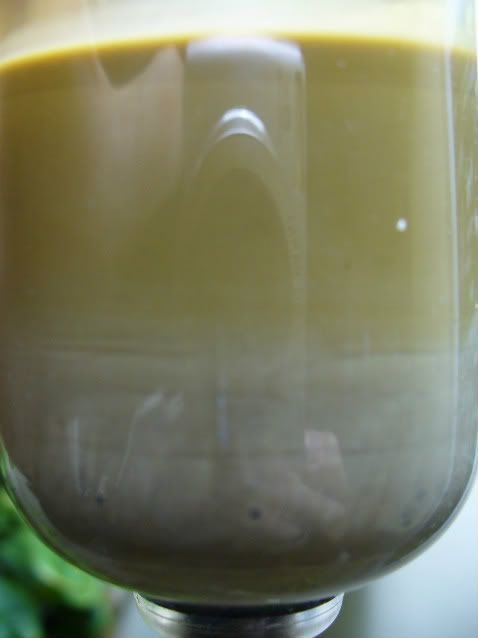

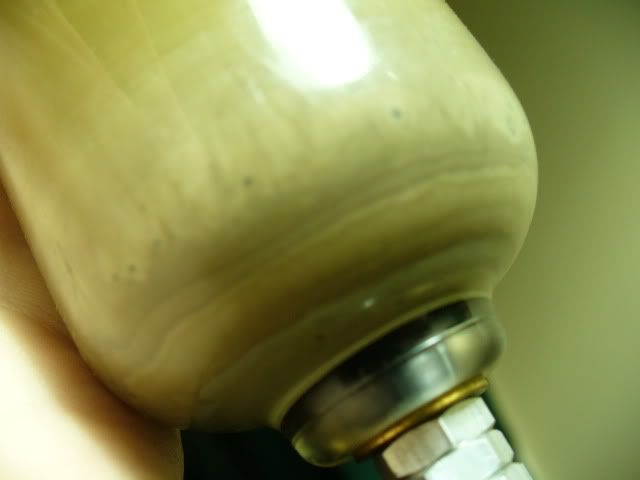

What was also interesting is the "stuff." Not really oil, not water, not dirt, but all at the same time. You could see layers where the different densities have settled over the time there.
