Calling those with a 1999 FSM - data link connector pinout Empty
PostSubject: Calling those with a 1999 FSM - data link connector pinout   Calling those with a 1999 FSM - data link connector pinout EmptySat Aug 29, 2015 5:18 pm

I'm just trying to figure out where I got the whole idea that the '98+ cars have an additional data bus lead that 97 down doesn't have. It might just have been from what Aeroforce's documentation for general OBD-II equipment said (because the older cars need the separate turn-on wire for those gauges to work).

This is from my books. Wondering if maybe you guys can post or at least say if you have anything different at all in that 'Data Link Connector Diagnosis' circuit for 1996 and 1999. I guess 1995 is kind of irrelevant since it's OBD-I but if you have that, post away. I'm curious.

1997
Calling those with a 1999 FSM - data link connector pinout 20150829_160205

1998
Calling those with a 1999 FSM - data link connector pinout 20150829_160105


Last edited by turtleman on Tue Sep 01, 2015 10:59 am; edited 1 time in total
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Calling those with a 1999 FSM - data link connector pinout Empty
PostSubject: Re: Calling those with a 1999 FSM - data link connector pinout   Calling those with a 1999 FSM - data link connector pinout EmptySat Aug 29, 2015 7:16 pm

I'm just gonna start throwing stuff in here for reference as I try to unravel this.
My DLC has 8 wires going to it. Bold is what the aeroforce scan gauge actually uses. The fourth wire that they use I have to go back and find because I eliminated mine since my car does not support it. That's the one I'm most interested in right now but I also need to confirm whether or not hptuners/dhp uses any wires besides the basic stuff the aeroforce scangauge uses (so I can make my harness for them without leaving out any wires).

TAN [800] - UART serial data -- PCM,SDM,HVAC programmer,instrument cluster to EBTCM
PPL [1807] - CLASS 2 serial -- PCM,RFA module
ORN [40] - hot at all times power
BLK [150] - ground
BLK/WHT [451] - ground
DK GRN [835] - E&C serial -- HVAC programmer,radio
WHT [1787] - for magnasteer
other BLK [1455] - RFA (for programming keyless entry)
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Calling those with a 1999 FSM - data link connector pinout Empty
PostSubject: Re: Calling those with a 1999 FSM - data link connector pinout   Calling those with a 1999 FSM - data link connector pinout EmptySat Aug 29, 2015 8:13 pm

Calling those with a 1999 FSM - data link connector pinout ODBII%20Master%20Pinout
In this diagram, the actual pins that the aeroforce scangauge use are 5, 16, 2, 10

Calling those with a 1999 FSM - data link connector pinout 20150829_185437
Pin 10 [J1850 bus (-) ] is empty in my DLC. This is primarily what I'm interested in knowing for certain if 98 or 99 rivs might have.
Back to top Go down
matt270avian
Expert
matt270avian


Name : Matt
Age : 28
Location : Frederick, MD
Joined : 2012-01-15
Post Count : 2681
Merit : 54

Calling those with a 1999 FSM - data link connector pinout Empty
PostSubject: Re: Calling those with a 1999 FSM - data link connector pinout   Calling those with a 1999 FSM - data link connector pinout EmptySun Aug 30, 2015 4:27 pm

I hope one of these is what you're looking for... (96)

Calling those with a 1999 FSM - data link connector pinout 2015-010

Calling those with a 1999 FSM - data link connector pinout 2015-011

Calling those with a 1999 FSM - data link connector pinout 2015-012

Calling those with a 1999 FSM - data link connector pinout 2015-013
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Calling those with a 1999 FSM - data link connector pinout Empty
PostSubject: Re: Calling those with a 1999 FSM - data link connector pinout   Calling those with a 1999 FSM - data link connector pinout EmptyTue Sep 01, 2015 11:13 am

Thanks Matt! 96 looks to be exactly the same as 97. In my 97 book, they leave out the internal module circuit layouts but otherwise it's exactly the same. I so badly wish I had a techII and could communicate with all those other modules connected.

Now for 99...
Anyone with a 99 want to even just check your DLC to see if you have a pin at cavity 10 or just take a picture of it?
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Calling those with a 1999 FSM - data link connector pinout Empty
PostSubject: Re: Calling those with a 1999 FSM - data link connector pinout   Calling those with a 1999 FSM - data link connector pinout EmptyTue Sep 01, 2015 12:02 pm

Calling those with a 1999 FSM - data link connector pinout DA15pinout
DHP uses the top connection for the cable to the DLC.

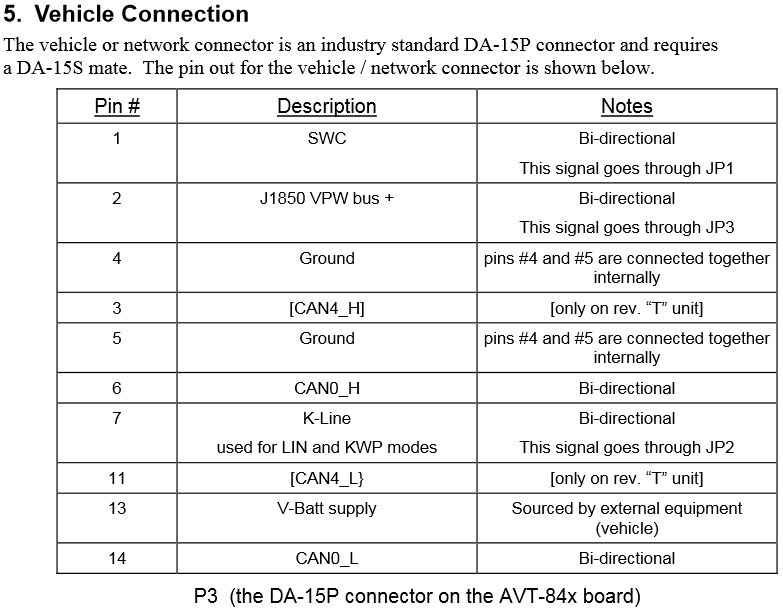

Calling those with a 1999 FSM - data link connector pinout Connector%20pinout%20for%20dhp
Here's the pin assignment for the AVT-84x DHP (don't see any J1850 bus - ) hmmm I'm starting to wonder if that is unrelated to the optional pin on the aeroforce gauge
Back to top Go down
Abaddon
Expert
Abaddon


Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4316
Merit : 185

Calling those with a 1999 FSM - data link connector pinout Empty
PostSubject: Re: Calling those with a 1999 FSM - data link connector pinout   Calling those with a 1999 FSM - data link connector pinout EmptyTue Sep 01, 2015 12:12 pm

I cannot save the picture for some reason. It comes up as MetaWeb Viewer...GM must've locked it out for some reason, but here's the DLC pinouts for a '99 Riv if it helps you at all.

Pin
Wire Color
Circuit No.
Function

1
ORN/BLK
1061
UART Serial Data Signal (Oldsmobile)

2
PPL
1807
Class 2 Serial Data Line

3


Not Used

4
BLK
150
Ground

5
BLK/WHT
451
Ground

6-7


Not Used

8
BLK/WHT
1455
Keyless Entry Program Enable Signal

9
TAN
800
UART Serial Data Signal

10


Not Used

11
WHT
345
Magnetic Steering Variable Assist Motor Feed – Low Effort

12-13


Not Used

14
DK GRN
835
Diagnostic Signal E & C

15


Not Used

16
ORN
40
Fused Output – BAT
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Calling those with a 1999 FSM - data link connector pinout Empty
PostSubject: Re: Calling those with a 1999 FSM - data link connector pinout   Calling those with a 1999 FSM - data link connector pinout EmptyThu Sep 03, 2015 1:44 pm

Aeroforce Interceptor User Manual wrote:
This power wire is not needed on most vehicles.  The 2005-2007 Cobalt SS
and 2005-2006 Redline Ion require this connection, as do some early Ford
Powerstroke vehicles made from 1996-2000, as well as most Pontiacs made
from 1996-2003.   If the gauge is not turning on or off properly on these or
any vehicle, you can force it on and off at the proper time by removing the
small 2-pin jumper on the rear of the gauge and connecting the red wire to
switched 12v as described above.



I just took another look at the user manual (for v2.8) from Aeroforce. It says that most Pontiacs from 96-03 need the added power wire (presumably meaning they would be missing pin10 on the DLC) so maybe I'm remembering the thing between 97 and 98 in error. They say the vehicles that need that turn on lead are in the minority though so I dunno. I gotta do some more research on the actual communication protocols.
Back to top Go down
charlieRobinson
Expert
charlieRobinson


Name : Charlie
Age : 39
Location : Knoxville, TN
Joined : 2011-05-17
Post Count : 3924
Merit : 31

Calling those with a 1999 FSM - data link connector pinout Empty
PostSubject: Re: Calling those with a 1999 FSM - data link connector pinout   Calling those with a 1999 FSM - data link connector pinout EmptyFri Sep 04, 2015 10:19 pm

what do you need? A pic of the 99 OBDII port?
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Calling those with a 1999 FSM - data link connector pinout Empty
PostSubject: Re: Calling those with a 1999 FSM - data link connector pinout   Calling those with a 1999 FSM - data link connector pinout EmptyFri Sep 04, 2015 11:20 pm

Yeah take one just to lay my pin 10 idea to rest
Back to top Go down
Abaddon
Expert
Abaddon


Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4316
Merit : 185

Calling those with a 1999 FSM - data link connector pinout Empty
PostSubject: Re: Calling those with a 1999 FSM - data link connector pinout   Calling those with a 1999 FSM - data link connector pinout EmptySat Sep 05, 2015 10:28 am

turtleman wrote:
Yeah take one just to lay my pin 10 idea to rest


Um...I put the '99 pin-outs up. Pin 10 is empty. Or am I missing something scratch
The pin layouts are in the same order as the others as far as pin #'s are concerned.
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Calling those with a 1999 FSM - data link connector pinout Empty
PostSubject: Re: Calling those with a 1999 FSM - data link connector pinout   Calling those with a 1999 FSM - data link connector pinout EmptySat Sep 05, 2015 12:51 pm

Abaddon wrote:

turtleman wrote:
Yeah take one just to lay my pin 10 idea to rest



Um...I put the '99 pin-outs up. Pin 10 is empty. Or am I missing something scratch
The pin layouts are in the same order as the others as far as pin #'s are concerned.

Yeah I just wanted to satiate my perverted fantasy of seeing deep into Zachs port
Back to top Go down
Abaddon
Expert
Abaddon


Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4316
Merit : 185

Calling those with a 1999 FSM - data link connector pinout Empty
PostSubject: Re: Calling those with a 1999 FSM - data link connector pinout   Calling those with a 1999 FSM - data link connector pinout EmptySat Sep 05, 2015 1:04 pm

Lol
