 More non-start - my Riv's specialty!

Go down
+5
flyineagle96
albertj
Abaddon
Jason
Jack the R
9 posters
Go to page : Previous  1, 2, 3, 4, 5  Next
AuthorMessage
Jack the R
Master
Jack the R


Joined : 2007-01-16
Post Count : 8070
Merit : 105

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyMon May 23, 2016 5:26 pm

albertj wrote:


Sorry for your troubles.

Why? scratch You didn't do anything but help. yay



Back to top Go down
albertj
Master
albertj


Name :
Location : Finger Lakes of New York State
Joined : 2007-05-31
Post Count : 8685
Merit : 181

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyThu May 26, 2016 5:37 am

Jack the R wrote:

albertj wrote:


Sorry for your troubles.


Why?  scratch   You didn't do anything but help.  yay




Because instead of using a wire bail or other gadget to secure that relay, the engineers did what they did. Cost less, and lasted for the design lifetime, but makes a mess out of repair. My guess would be they did not like that they had to do it that way.
Back to top Go down
Jack the R
Master
Jack the R


Joined : 2007-01-16
Post Count : 8070
Merit : 105

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyThu May 26, 2016 6:11 am

I'm more upset that it failed @ 93,000 miles, and wasn't designed to throw a code beforehand. I got a code for an 02 sensor failure and a warning light for low windshield washer fluid, neither of which will leave me stranded. That's insane.
Back to top Go down
albertj
Master
albertj


Name :
Location : Finger Lakes of New York State
Joined : 2007-05-31
Post Count : 8685
Merit : 181

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyThu Jun 02, 2016 9:57 am

Jack the R wrote:
I'm more upset that it failed @ 93,000 miles, and wasn't designed to throw a code beforehand.  I got a code for an 02 sensor failure and a warning light for low windshield washer fluid, neither of which will leave me stranded.  That's insane.

It represents the politics of privilege. Driving is a privilege, and thus subject to political control in the form of licensure and regulation.
Back to top Go down
Jack the R
Master
Jack the R


Joined : 2007-01-16
Post Count : 8070
Merit : 105

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptySun Feb 18, 2018 9:28 pm

It's that time again! headshot headbutt

Well at least I've gotten two more years out of it, but I bet I've driven it less than twenty times.

Same symptoms as before, except this time jumping C1 to A2 on the starter relay does nothing, so I assume the starter relay is still good.

I put in a new Optima battery a few days ago.

I have no error codes, and the fuses are good.

I pulled on the SC belt to make sure the starter wasn't jammed.

With the ignition in the "run" position, the SES light is on and there's a red light in the temp guage.

With the ignition in the "start" position, there's a "click," the anti-lock light comes on and the traction control light temporarily comes on.

That's all I've done for now, I haven't tried jumping the starter yet.

Who wants to guess what the problem will be this time?
Back to top Go down
Jack the R
Master
Jack the R


Joined : 2007-01-16
Post Count : 8070
Merit : 105

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyMon Feb 26, 2018 3:22 am

I've picked up one of these (Innova Equus 3320)-

More non-start - my Riv's specialty! - Page 3 2HL46qO

The new battery reads 12.27 volts with the cables connected and 12.49 with them disconnected.

Somebody tell me what settings to use on the DVM to probe the other stuff on the car, like the starter relay for instance.
Back to top Go down
Abaddon
Expert
Abaddon


Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4315
Merit : 185

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyTue Feb 27, 2018 2:10 pm

Jesus.

Sounds like a ton of fun. The SES light will always be on in the "RUN" position without the car running. Once you start it, it goes out (given there isn't a problem). As for the other lights coming when you try to start it, they shouldn't be there.

What I would do first....
Put the meter on the same setting you used for the battery (voltage). Ground the negative to frame, or bolt, or transmission. If memory serves me right, there's a ground stud on the trans near the starter. Put the positive lead on the small terminal of the starter solenoid (it's either a purple or yellow wire going to it). Have somebody try and crank the car. If you've got 12V at that wire and the car doesn't start, the starter is bad. If you DON'T end up with 12V, or any voltage, you have a wiring problem that we need to chase.
Back to top Go down
Jack the R
Master
Jack the R


Joined : 2007-01-16
Post Count : 8070
Merit : 105

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyWed Feb 28, 2018 4:07 pm

I got nothing on the purple wire. Is there any other test to confirm it's the starter motor? I remember jumping it, but I can't remember what I did. If the problem is the starter, which replacement do you like?

Incidentally I noticed that my coolant is low. The reservoir is totally drained. We had a few below zero days, but I don't see any leaks under the car. I don't recall what the red light in the temp gauge is for, but this seems like a possible candidate. I wonder where my coolant has gone scratch
Back to top Go down
Abaddon
Expert
Abaddon


Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4315
Merit : 185

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyWed Feb 28, 2018 4:13 pm

Nothing at the purple wire? That wire is only hot while trying to crank, not in RUN.

If that's the case, it puts you back at the relay.....or that little wire is corroded/broken somewhere between the starter and the fuse block.
Back to top Go down
Jack the R
Master
Jack the R


Joined : 2007-01-16
Post Count : 8070
Merit : 105

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyWed Feb 28, 2018 4:13 pm

Abaddon wrote:
As for the other lights coming when you try to start it, they shouldn't be there.

BTW maybe I should mention that the previous owner had this thing called a "Safelok" installed. I don't know what it wires into, but it basically gives you a second key that the car won't start without (I assume, I haven't tried starting the Riv without the Safelok key plugged in).
Back to top Go down
Jack the R
Master
Jack the R


Joined : 2007-01-16
Post Count : 8070
Merit : 105

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyWed Feb 28, 2018 4:14 pm

Abaddon wrote:
Nothing at the purple wire? That wire is only hot while trying to crank, not in RUN.


Nothing while trying to crank, with the key in the start position.
Back to top Go down
LARRY70GS
Aficionado
LARRY70GS


Name : Larry
Age : 68
Location : Oakland Gardens, NY
Joined : 2007-01-23
Post Count : 2193
Merit : 150

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyWed Feb 28, 2018 4:22 pm

If you jump between the main battery connection on the solenoid to the solenoid terminal (purple wire), the starter should crank the engine. If you do that with the ignition key in the run position, the engine should start if everything else is good. I used to do it with a flat bladed screwdriver, just sparks a bit.

_________________
98 Riviera SC3800  All stock except gutted air box.
1970 Buick GS455 Stage1, TSP built 470BBB, 602HP/589TQ
Best MPH, 116.06 MPH, Best ET, 11.54
https://www.youtube.com/watch?v=UHCda-t_Jls
https://www.youtube.com/watch?v=sfT2tEO4XcU
Back to top Go down
Abaddon
Expert
Abaddon


Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4315
Merit : 185

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyWed Feb 28, 2018 4:22 pm

Well now. I wonder wonder wonder if that "Safelok" thing might be screwing up finally. I find it hard to believe that you'd have a recurring issue like this. Aside from a corroded wire here or there, these cars usually don't have this problem. I'd be back at the relay terminals testing voltage again (page1) if there's nothing on the purple wire. That's the circuit that a lot of aftermarket "theft deterrent" systems attach to.
Back to top Go down
Jack the R
Master
Jack the R


Joined : 2007-01-16
Post Count : 8070
Merit : 105

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyThu Mar 01, 2018 3:40 am

LARRY70GS wrote:
If you jump between the main battery connection on the solenoid to the solenoid terminal (purple wire), the starter should crank the engine.  If you do that with the ignition key in the run position, the engine should start if everything else is good.  I used to do it with a flat bladed screwdriver, just sparks a bit.

Bridge the positive and negative connections on the starter solenoid?
Back to top Go down
Jack the R
Master
Jack the R


Joined : 2007-01-16
Post Count : 8070
Merit : 105

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyThu Mar 01, 2018 3:46 am

Abaddon wrote:
Well now. I wonder wonder wonder if that "Safelok" thing might be screwing up finally. I find it hard to believe that you'd have a recurring issue like this. Aside from a corroded wire here or there, these cars usually don't have this problem. I'd be back at the relay terminals testing voltage again (page1) if there's nothing on the purple wire. That's the circuit that a lot of aftermarket "theft deterrent" systems attach to.

It's a possibility, and I'll probe the relay again. Replacing the starter relay solved the problem the last time though, and there were a couple times where I let the security system run the battery down before I figured out what a booger it is. So I don't think the Safelok has caused a problem so far, but it could be now.

I also need to check under the passenger kickpanel where I tried to disable >something< under there, many years ago, thinking it was the source of a non-start problem. Maybe I've got a wire loose.

Back to top Go down
Abaddon
Expert
Abaddon


Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4315
Merit : 185

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyThu Mar 01, 2018 8:36 am

Jack the R wrote:
Bridge the positive and negative connections on the starter solenoid?

No. If you jump the big positive battery cable to the small purple wire, the starter should turn over. There is no ground wire on the starter. It uses the block as a ground. That's how the starter works. It always has constant B+. That little purple wire is the CRANK feed from the ignition cylinder.
Back to top Go down
Jack the R
Master
Jack the R


Joined : 2007-01-16
Post Count : 8070
Merit : 105

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyThu Mar 01, 2018 1:39 pm

Today I went out to run more tests, and just for fun decided to try starting it again, and it started.

Then I tried again, and it didn't start.

Then I pulled the key from the anti-theft system, and put in the other key, and it started.

Then I put the first key back in, and it started.  It started a few times after that too, and it started really well.

So ATM it's starting again.

Here is the anti-theft system I've got -

More non-start - my Riv's specialty! - Page 3 Safelok_a_by_jrxtin-dc4n45e

More non-start - my Riv's specialty! - Page 3 Safelok_b_by_jrxtin-dc4n46d

On the far left we have a key fob, which has a switch on it.  The switch appears to do nothing.

In the middle is the key that's normally in the car.

On the far right is a second key.  It has a button on it, and an LED.  I can't guess what the button does.

The company that made this has gone out of business, and all I've been able to find out about it comes from a couple of short forum threads (Link, Link.)  This is the most pertinent piece of advice -




Quote :
Ok, I hate these things.

Look, removing these is a huge gamble. If not done right, it might prevent your car from starting ever again. If I were you I would just leave it in there




As you can see, my situation is just full of win.

I'm in the process of figuring out what I messed with in the passenger foot well a few years ago, the first time I had a no-start issue.  I know I cut a wire and spliced it back together later, maybe that's working loose.  Abaddon may be right about the Safelok aging out though, and I guess that means my 94,000 mile Riv is somewhere between permanently unreliable and bricked.
Back to top Go down
Jack the R
Master
Jack the R


Joined : 2007-01-16
Post Count : 8070
Merit : 105

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyMon Mar 05, 2018 9:18 pm

More non-start - my Riv's specialty! - Page 3 Cut_wire_under_glovebox_by_jrxtin-dc52jx3

Here's the wire I cut under the glove box, apparently I never bothered to splice it back together because the car runs like this.  I suppose that rules out the possibility that the cut wire was causing my no-start, because it starts great with the wire cut.

So now we're back to the Safelok, or something else entirely.

Here's the guts of the Safelok -

More non-start - my Riv's specialty! - Page 3 Safelok_device_by_jrxtin-dc52l5m

On one end there are a bunch of black wires that go to ground, and on the other are a bunch of wires that go to the keyport -

More non-start - my Riv's specialty! - Page 3 Ground_and_keyport_by_jrxtin-dc52lm8

There's also a few wires that tap into the Riv's ignition system.  In this first pic, a yellow wire on the Riv has been cut and tapped with green and black wires to the safelok.

More non-start - my Riv's specialty! - Page 3 Tap_into_yellow_wire_by_jrxtin-dc52m8t

There's also a red Safelok wire that taps into an orange Riv wire, with a connector type I haven't seen before.  What's going on under the blue bit?

More non-start - my Riv's specialty! - Page 3 Tap_into_orange_wire_by_jrxtin-dc52mmu

There's a similar connection from the Safelok (grey wire) to a green Riviera wire-

More non-start - my Riv's specialty! - Page 3 Tap_into_green_wire_by_jrxtin-dc52mzy

It doesn't look like it would be very hard to remove the Safelok.  Am I missing something?
Back to top Go down
Abaddon
Expert
Abaddon


Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4315
Merit : 185

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyThu Mar 08, 2018 8:52 am

That big "bundle" in the 2nd pic. Is that a relay underneath the shrink tube?
Back to top Go down
Jack the R
Master
Jack the R


Joined : 2007-01-16
Post Count : 8070
Merit : 105

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyThu Mar 08, 2018 9:36 am

Abaddon wrote:
That big "bundle" in the 2nd pic. Is that a relay underneath the shrink tube?

It's the starter relay we replaced a couple years ago. I pulled it down to test it and haven't put it back yet, in case we need to do more testing.
Back to top Go down
Abaddon
Expert
Abaddon


Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4315
Merit : 185

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyThu Mar 08, 2018 1:28 pm

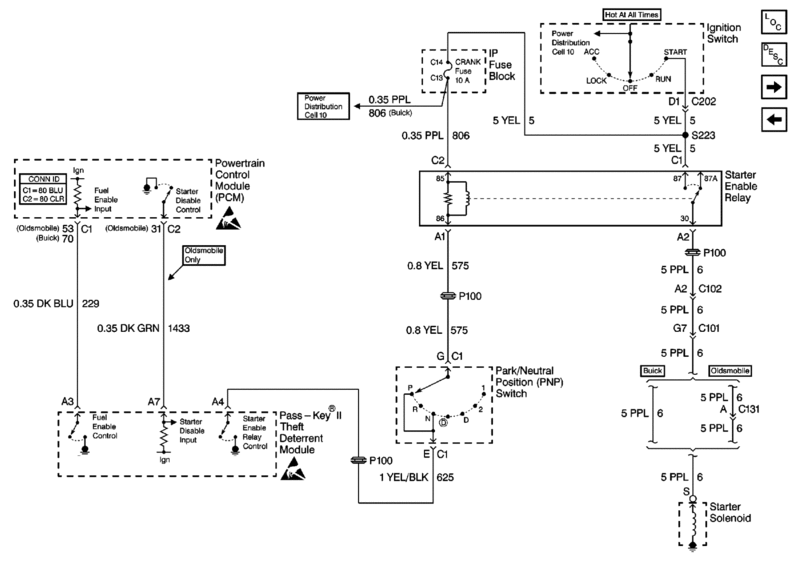

The Yellow wire that's cut. It appears that they've bypassed either the PNP switch, or the START input from the Ignition Switch (makes more sense). That would give control to the SafeLok to energize the relay.

More non-start - my Riv's specialty! - Page 3 98_riv11

The Orange wire is nothing more than B+ voltage. That's why it's tapped and not cut.....it powers other things.
I'm trying to find what the green wire is.
Back to top Go down
Jack the R
Master
Jack the R


Joined : 2007-01-16
Post Count : 8070
Merit : 105

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyThu Mar 08, 2018 9:46 pm

Sounds like this could be as simple as soldering the yellow wire back together.

Looking at the pics again though, I wonder if that is some kind of shrink wrap over a connector, and maybe if the safelok was unplugged, the connectors on the yellow wire would plug in to each other? But it might be better to cut them off and solder the yellow wire together.
Back to top Go down
Abaddon
Expert
Abaddon


Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4315
Merit : 185

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyFri Mar 09, 2018 1:09 pm

That big shrink wrapped bundle appears to be another relay. That's what I was asking about. I'll bet that they wired in its own relay, and just needed the START wire? I'd cut that shrink wrap open and have a look around.
Back to top Go down
Jack the R
Master
Jack the R


Joined : 2007-01-16
Post Count : 8070
Merit : 105

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyFri Mar 09, 2018 2:18 pm

You mean I've got TWO starter relays?  What's the angriest emoticon on this board?

I'll cut the shrink wrap open and get pics.

Any thoughts on the white wire under the glovebox?
Back to top Go down
Jack the R
Master
Jack the R


Joined : 2007-01-16
Post Count : 8070
Merit : 105

More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 EmptyFri Mar 09, 2018 4:07 pm

More non-start - my Riv's specialty! - Page 3 Safelok_relay_by_jrxtin-dc5eoxj

Here's the mystery hiding under the shrink wrap.  Looks like a relay to me, with some crudely done soldering.

It's a wonder this car ever started.

If this was the problem, than both relays died within a thousand miles of each other.

Am I the only one on the board who's had to replace the starter relay?  I'm wondering if I'm seeing something normal, or the symptom of another problem.
Back to top Go down
Sponsored content





More non-start - my Riv's specialty! - Page 3 Empty
PostSubject: Re: More non-start - my Riv's specialty!   More non-start - my Riv's specialty! - Page 3 Empty

Back to top Go down

More non-start - my Riv's specialty!
Back to top
Page 3 of 5Go to page : Previous  1, 2, 3, 4, 5  Next
 Similar topics
-
»  7th Gen Rivs
» Jim's '83 & '98 Rivs
» One of my Rivs
» FAQ: What are differences between '96 and '97-99 SC Rivs?
» the rivs going to the shop

Permissions in this forum:You cannot reply to topics in this forum
Riv Performance ::   Supercharged 3800 Tech :: Series II Engine & Transmission-
Jump to:
