Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptySun Nov 07, 2010 10:28 pm

Thanks for your input Robo, I have already replaced the front and rear sway bars with something much more substantial.

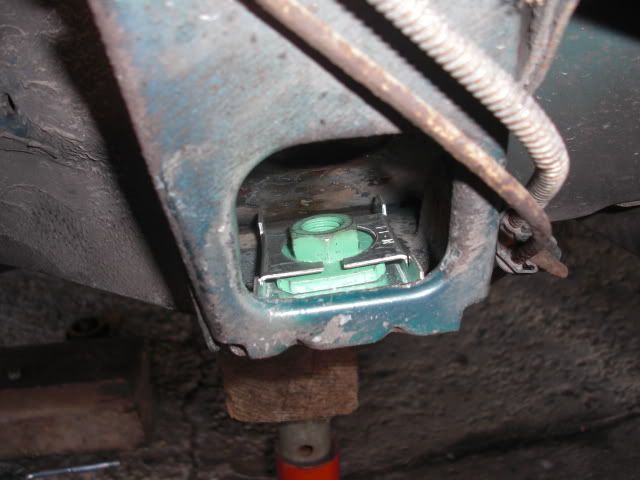

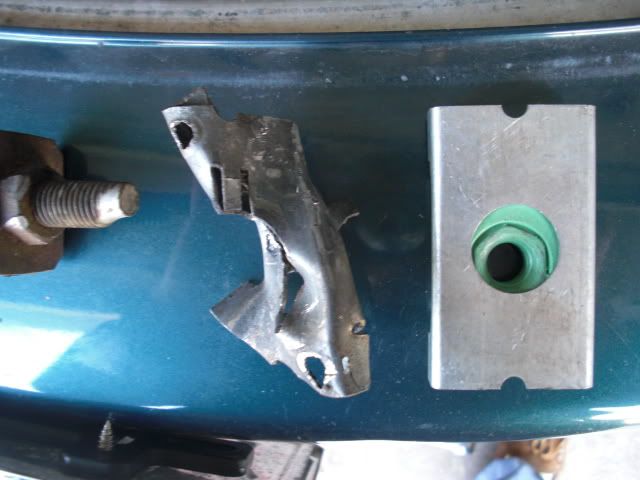

Now due to the missing(due to corrosion) front mount washers, i am very interested in doing more of a permanent mount for the front cradle.

I'll deal with the rear cradle later.

Thanks for your input.,
Rick
Back to top Go down
robotennis61
Guru
robotennis61


Name : robotennis
Age : 63
Location : las vegas
Joined : 2007-12-17
Post Count : 5562
Merit : 143

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptySun Nov 07, 2010 10:35 pm

thanks. and another newtons advantage to the oh so soft cradle mount isolators is, when taking a corner hard,the engine is allowed to move ahead of the car oh so slightly causing a stunted slingshot effect.very unsettling and the suspension agrees too.


Last edited by robotennis61 on Wed Mar 20, 2013 4:34 pm; edited 1 time in total
Back to top Go down
robotennis61
Guru
robotennis61


Name : robotennis
Age : 63
Location : las vegas
Joined : 2007-12-17
Post Count : 5562
Merit : 143

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptySun Nov 07, 2010 10:46 pm

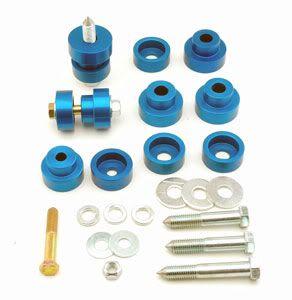

here is a pic of hard body mounts that might work with the riv. good luck trying to get diameters and measurements from global west or jegs!

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 459-800



anybody who has removed the stock cradle mounts/isolators, recognizes the similarity.
Back to top Go down
Rickw
Guru



Name : Rick
Location : Lancaster, MA
Joined : 2008-09-13
Post Count : 6282
Merit : 119

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptySun Nov 07, 2010 10:56 pm

robotennis61 wrote:
here is a pic of hard body mounts that might work with the riv. good luck trying to get diameters and measurements from global west or jegs!

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 459-800



anybody who has removed the stock cradle mounts/isolators, recognizes the similarity.
What does Jegs sell these for.? You know better than buying something that is not made for our cars, otherwise you would have already bought the set and be doing a drive cycle with them.
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptySun Nov 07, 2010 11:00 pm

I don't have the details but Ewolfe mentioned something very doable that was along the lines of either switching to GP hardware or GP insulators for increased firmness. I know I'm keeping that stuff stock myself but it sounds like a pretty reachable option if you're going to buy the parts anyway. Maybe he'll chime in with the details.
Back to top Go down
robotennis61
Guru
robotennis61


Name : robotennis
Age : 63
Location : las vegas
Joined : 2007-12-17
Post Count : 5562
Merit : 143

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptySun Nov 07, 2010 11:03 pm

$ 96 bucks. competition engineering sells a set for $52 bucks. i might just take the plunge and get a set to f..k around with.pretty cheap for a alu set. the problem is that the manufacturer wont give out the sets measurements. they wont budge on this. these sets are car specific and if you don't have the car they are made for they wont give you the measurements.
Back to top Go down
robotennis61
Guru
robotennis61


Name : robotennis
Age : 63
Location : las vegas
Joined : 2007-12-17
Post Count : 5562
Merit : 143

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptySun Nov 07, 2010 11:04 pm

turtleman wrote:
I don't have the details but Ewolfe mentioned something very doable that was along the lines of either switching to GP hardware or GP insulators for increased firmness. I know I'm keeping that stuff stock myself but it sounds like a pretty reachable option if you're going to buy the parts anyway. Maybe he'll chime in with the details.

that be nice. the isolators are useless.
Back to top Go down
Rickw
Guru



Name : Rick
Location : Lancaster, MA
Joined : 2008-09-13
Post Count : 6282
Merit : 119

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptySun Nov 07, 2010 11:09 pm

turtleman wrote:
I don't have the details but Ewolfe mentioned something very doable that was along the lines of either switching to GP hardware or GP insulators for increased firmness. I know I'm keeping that stuff stock myself but it sounds like a pretty reachable option if you're going to buy the parts anyway. Maybe he'll chime in with the details.
What exactly do you plan on keeping stock, when you ordered a bonny subframe and bushings.
Are you assuming the the parts you receive will be the same as stock.?
Just curious.?
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptySun Nov 07, 2010 11:20 pm

Rickw wrote:
turtleman wrote:
I don't have the details but Ewolfe mentioned something very doable that was along the lines of either switching to GP hardware or GP insulators for increased firmness. I know I'm keeping that stuff stock myself but it sounds like a pretty reachable option if you're going to buy the parts anyway. Maybe he'll chime in with the details.
What exactly do you plan on keeping stock, when you ordered a bonny subframe and bushings.
Are you assuming the the parts you receive will be the same as stock.?
Just curious.?

All the cradle hardware I got is exact stock stuff for the riv.
My hope is that when I'm done with this, It'll be pretty much exactly like a 98-99 riv is. I'm counting on the bonne cradle being essentially the same as mine with the known provisable exceptions.

EDIT: Since the rear trans mount brackets all seem to bolt up to all these newer cradles the same way, I'll probably reuse my original rear trans mount bracket and buy a new insert and reinforce it with the window weld. The front trans mount is going to have to be like the Bonneville. The frame doesn't have a through hole for the riv mount. This is fine because I can just use the bonne bracket and hockey puck mount I already have and it'll be a solid mount.


Last edited by turtleman on Sun Nov 14, 2010 3:24 pm; edited 1 time in total
Back to top Go down
flyineagle96
Junkie
flyineagle96


Name : James E
Age : 56
Location : Dalton,Mass
Joined : 2009-12-21
Post Count : 915
Merit : 23

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptyMon Nov 08, 2010 5:42 pm

Yes the bonnie part's will work i used them,they rotted out to ,so i took up the rugs drilled through the floor hockey pucks ,plates ,welded down .they never moved again.corning was dive free pretty much.When they go in my 93 thats what i'm doin again!!!
Back to top Go down
robotennis61
Guru
robotennis61


Name : robotennis
Age : 63
Location : las vegas
Joined : 2007-12-17
Post Count : 5562
Merit : 143

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptyMon Nov 08, 2010 5:53 pm

flyineagle96 wrote:
Yes the bonnie part's will work i used them,they rotted out to ,so i took up the rugs drilled through the floor hockey pucks ,plates ,welded down .they never moved again.corning was dive free pretty much.When they go in my 93 thats what i'm doin again!!!


i like the way you think buddy
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptySun Nov 14, 2010 3:17 pm

Rickw wrote:

Turtle,
When you do this job will you take some measurements for me. I'm specifically interested in the dimensions of the hole spacing for the Steering Rack. I need to know the distance the bolt holes are apart from each other so I can try and determine if a Non-Magna-steer Rack will bolt to the Riv. Does the rack bolt to the cradle.? If so, you will be finding out if your using a Bonneville cradle and the Riv steering rack.
I've been wanting to change this over for the past couple of years but can't seem to get any of the Rack re-builders that I have contacted to tell me the mounting dimensions for either the Riv and a Bonny.
The Bonny came with or without Magna-steer as an option so it would be a good candidate to use for a swap.
I know someone local that has a SSEI that came with Magna-steer and he was able to install a non-Magna-steer as they list P/N's for both to fit that car. He finished the job and returned or got rid of the old rack before I had a chance to do any measuring. I can't go to the junk yards and crawl under cars to take measurements because of my back problems. As it is I will have to pay someone to swap the rack for me, if I can find one that fits.
The dude with the Bonny was irritated by the same highway vibrations that I and others, experience with the Riv's and he was able to eliminate it by eliminating the sensitivity by changing to non-magna-steer. All I have to do is find out if a certain year bonny or whatever will fit the Riv and I'll replace the pump as well and get rid of the over sensitive magna-steer.
Regardless of the vibration issue, I do not like the magna-steer and it's limited effect on the highway. I want a firmer steering input and feedback.
Thanks for any info you can provide.
Also, what was that front sway bar out of that I bought from you. I forget. Having that installed tomorrow hopefully along with some other work I cannot do.

If the cradle you get from the 00 Bonny has a steering Rack on it and it is non-electronic and you are not going to use it, let me know. I'll try it if it has any life left in it.

Rick


I have the cradle now. I took everything off and Pete and I are stripping it down of paint to eliminate all rust and refinish it.
I measured the two mounting ears for the steering rack to be 16 3/4" center-center.
There's no good pictures to reference so I'm gonna have to take another look under the riv to see what those two bolts on top of the rear trans mount are all about. The 2000 bonne mount and the trans mount on a 1999 riv (which are the same) don't seem to have that.
Back to top Go down
robotennis61
Guru
robotennis61


Name : robotennis
Age : 63
Location : las vegas
Joined : 2007-12-17
Post Count : 5562
Merit : 143

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptySun Nov 14, 2010 4:01 pm

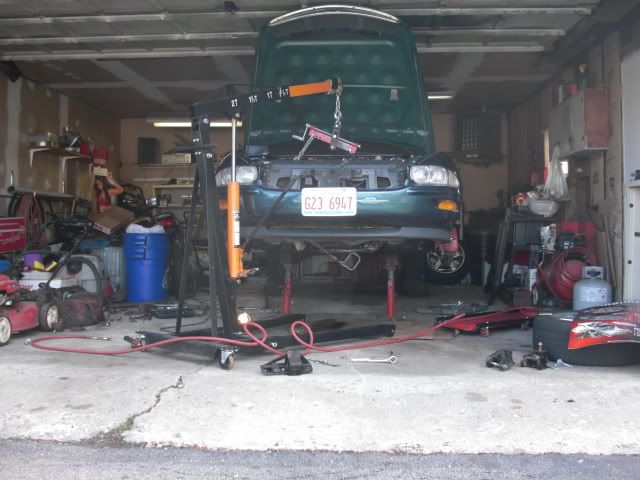

how did you support the motor? or does it just hang there? i havnt really looked into removing it, but if i want to hard mount it to the chassis its gonna have to come off
Back to top Go down
Rickw
Guru



Name : Rick
Location : Lancaster, MA
Joined : 2008-09-13
Post Count : 6282
Merit : 119

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptySun Nov 14, 2010 11:48 pm

turtleman wrote:

EDIT: Since the rear trans mount brackets all seem to bolt up to all these newer cradles the same way, I'll probably reuse my original rear trans mount bracket and buy a new insert and reinforce it with the window weld. The front trans mount is going to have to be like the Bonneville. The frame doesn't have a through hole for the riv mount. This is fine because I can just use the bonne bracket and hockey puck mount I already have and it'll be a solid mount.
I thought you said you ordered a NEW rear mount from one of the GM suppliers.?
I read that somewhere along the way and have asked you where you ordered it from, but didn't receive a response, assuming you didn't see my question.
I have been waiting to use an Advance Auto Part rubber mount that I bought for $50.00.
Should I just attempt to use this one I have or do you potentially have something better on it's way.????
I just need to remove the rubber from a spare steel assembly I have and install the new rubber part and use window weld to fill in the gaps.
DID you get a GM rear mount.? Yes or No.?? Inquiring minds need to know.!!!!!

What happened to the mount you said you ordered from the unknown GM supplier.???
Just curious, because if what you received was better, I was going to go that route.

Congrat's on receiving the new/used cradle. Found 2 of my cradle mount retainers missing due to rust last week and ordered new from the dealer.

Also, can you tell me if the Riv Steering Rack will bolt to the 00 Bonneville cradle.???

Will I be able to buy a Bonneville Steering Rack (Non Magna-Steer) and mount it to the car as is, or does it require modification.?????????? Will the bolt hole line up and if you know, do the hose connections line up.?

Thanks for any and all info you can provide. I need to get this done before the real cold weather sets in. Thanks again.

Rick
Back to top Go down
Rickw
Guru



Name : Rick
Location : Lancaster, MA
Joined : 2008-09-13
Post Count : 6282
Merit : 119

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptyTue Nov 16, 2010 11:07 am

Cody,
What's going on.? How about an update.?

Inquiring minds need to know.

Hope all is going well with the cradle install, etc.
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptyFri Nov 19, 2010 9:51 pm

flyineagle96 wrote:
I've tried getting them off, a number of times,they always brake.Maybe a hand held torch,heat them up then they will break free?

They are a little tough. The main problem is that most of the shock you can apply to them with a hammer to break them loost gets absorbed by the rubber. Torch helps a little bit but what worked the best for me, that I found out by the last two, is WD40. Soak em with it and and they'll break free from the frame a lot easier.
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptyFri Nov 19, 2010 10:14 pm

Rickw wrote:
Cody,
What's going on.? How about an update.?

Inquiring minds need to know.

Hope all is going well with the cradle install, etc.

I'll try to update this post with pics later but for now, this is what I've found.

The bolt spacing at the back of the frame for the rear trans mount assembly is different between the two cradles, which I didn't know about. Also, my '97 cradle actually has 2 bolts vertically and 2 more bolts horizontally for the rear mount bracket going into the cradle. The bonne cradle (and '99 riv cradle) don't have the horizontal bolts, but they do have a 3rd verticle one. Any any case, that means they cannot be swapped with eachother. This also means the steering rack is much different. The drivers side of the 95-98 riv steering rack mounts with two bolts right into the top of the rear trans mount bracket. The 00 bonne cradle and 99 riv both have mounts for the steering rack that are independent of the rear trans mount. Of course this means, the racks cannot be swapped unless you have a cradle and steering rack that match and have the corresponding rear trans mount. Although, the style of the 99 riv rack and 00 bonne rack is exactly the same, who's to say something else isn't different mounting-wise. They are different part numbers so I wouldn't count on them be interchangable after what I've been seeing. As for your endevour for getting a non-magnasteer rack into your <1999 riv, anything newer is not an option. I haven't looked much at steering racks on pre '99 full size cars but if you were to find something, it would have to be older and also have pretty much the same rear trans mount is the riv.

What this all means to me is that I'm probably not going to use this cradle at all. I could get a steering rack that mounts to it and use the 99+ rear trans mount and hope there are no further discrepencies but I'm thinking more about just calling it a loss and getting a more expensive '98 riv cradle and retaining everything I want while still getting the better control arms. The bracket for the rear trans mount on my car also has 4 bolts that go into the trans. The newer style only has 3. (I'll post pictures of this later on) Overall, this turned into kind-of a toss up and I like the 98 riv cradle option much better. A steering rack would be much cheaper than buying a 2nd cradle but it still leaves room for unforseeable problems and I don't really have any more time for that.

I've given more though into just reusing my original cradle and replacing the mounts and sway bar and just calling it a day but that leaves way for future problems. (original control arms & ball joints hitting 200k mi and no parts to replace them with and then there's the scar from the failed front hockey puck mount) I would rather spend more now and get it done once and for all.

Will update...
Back to top Go down
Rickw
Guru



Name : Rick
Location : Lancaster, MA
Joined : 2008-09-13
Post Count : 6282
Merit : 119

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptyFri Nov 19, 2010 10:23 pm

Cody, I don't know how all this plays into what you just said, other than the fact that you have been referring to the 99 Riv and the later Bonneville cradle.
How does this translate into the fact that I have a 98 Riv and am looking for a rack that will fit it.
Sorry for beating a dead horse, but you left the door open for a possible fitment for the 98 Riv and another steering rack fitting it.
Is this true or should I completely give up on this proposition.?


Thanks for all your hard work and sorry that the cradle you received isn't going to work on your car. Will it fit anything else that you are aware of or does it need to be returned.?
Was it shipped to you with the understanding that it would fit or was it under the understanding that they weren't sure it would fit your year. They are the ones that are supposed to have all the fitment sheets for all these parts.?

Thanks,
Rick
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptyFri Nov 19, 2010 11:16 pm

Rickw wrote:
Cody, I don't know how all this plays into what you just said, other than the fact that you have been referring to the 99 Riv and the later Bonneville cradle.
How does this translate into the fact that I have a 98 Riv and am looking for a rack that will fit it.
Sorry for beating a dead horse, but you left the door open for a possible fitment for the 98 Riv and another steering rack fitting it.
Is this true or should I completely give up on this proposition.?


Thanks for all your hard work and sorry that the cradle you received isn't going to work on your car. Will it fit anything else that you are aware of or does it need to be returned.?
Was it shipped to you with the understanding that it would fit or was it under the understanding that they weren't sure it would fit your year. They are the ones that are supposed to have all the fitment sheets for all these parts.?

Thanks,
Rick

You have a '98 so everything that applies to me applies the same to you. Your setup is exactly like mine.
All I can really tell you is that everything that I have looked at in the way of alternate steering racks will not work on a riv with it's stock cradle in place and changing the cradle still has potential for more bumps that I don't know about, that I don't care to find. I can't return it. The risk was on me. I can't say whether to give up yet. I was just informing you that if you are to find another rack to fit your riv, look for earlier years, not later, because I've pretty much confirmed that nothing newer than a 98 anything will work without a still risky cradle swap. I'm just sharing what I've learned and it certainly does apply to you.
Back to top Go down
Rickw
Guru



Name : Rick
Location : Lancaster, MA
Joined : 2008-09-13
Post Count : 6282
Merit : 119

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptySat Nov 20, 2010 12:09 am

Thanks for all your research. Even though you had to put in all the labor and expense, it benefits all of us.

Sorry for your disappointment and expense.

Rick
Back to top Go down
flyineagle96
Junkie
flyineagle96


Name : James E
Age : 56
Location : Dalton,Mass
Joined : 2009-12-21
Post Count : 915
Merit : 23

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptySat Nov 20, 2010 10:53 am

flyineagle96 wrote:
,so i took up the rugs drilled through the floor hockey pucks ,plates ,welded down .they never moved again.corning was dive free pretty much. what i'm doin again!!!
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptySat Nov 20, 2010 11:46 am

flyineagle96 wrote:
flyineagle96 wrote:
,so i took up the rugs drilled through the floor hockey pucks ,plates ,welded down .they never moved again.corning was dive free pretty much. what i'm doin again!!!

I just don't feel comfortable doing something like that on this part of the car and it's not really reversable once it's been done. Plus that only solves a part of my problems.
Back to top Go down
flyineagle96
Junkie
flyineagle96


Name : James E
Age : 56
Location : Dalton,Mass
Joined : 2009-12-21
Post Count : 915
Merit : 23

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptySat Nov 20, 2010 11:53 am

That's good do things the right way,i did it like that because i don't want it to come apart ever
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptyWed Apr 20, 2011 12:47 am

Got the cradle done!

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Th_CIMG3170
That's how both those center mounts have been for a while now. Yikes!

Things you need to know:
If you're replacing the cradle and/or mounts on a typical car, I strongly recommend you get all new pieces. Upper retainers, lower retainers, bolts, plastic bolt keeps, and of course the 12 insulators. There are different part numbers for the insulators in each location so make sure to get the right stuff. They have different dampening characteristics and specially suited tolerances to heat and such. There's no reason not to get the right parts for the right places. I would get a couple top nuts too just in case. I would say mine was in pretty sorry shape and I didn't end up needing them but you certainly don't want to be caught with your pants down either when you're deep into the job.

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3164

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3162

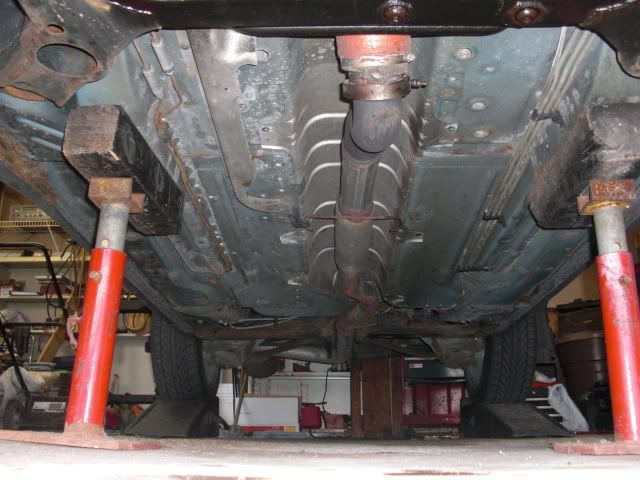

car support spots

Photobucket
I would say you need to support the motor/trans from the top in order to do this job. Even though you have the passenger side engine mount and driver side trans mounts connected to the body (not the cradle) throughout the whole process, you still don't want to put all that stress on those two mounts and more importantly, put yourself underneath the car without that support. Also, you kinda need to be able to shift the motor/trans up and down, especially if you are changing anything near the rear trans mount. I also removed my rear mount for replacement.

*Things attached to the cradle*
Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3172

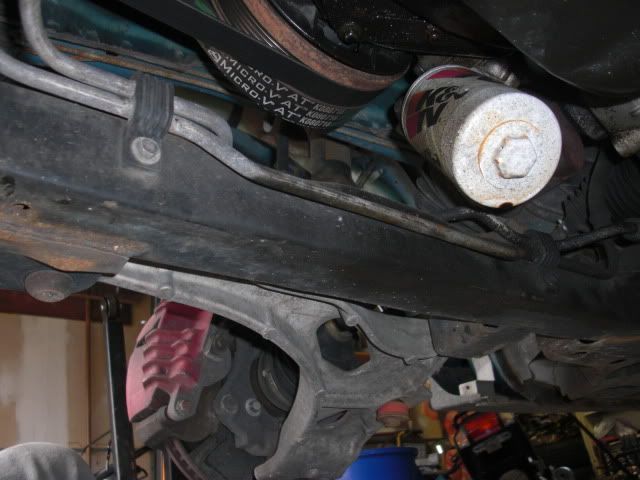

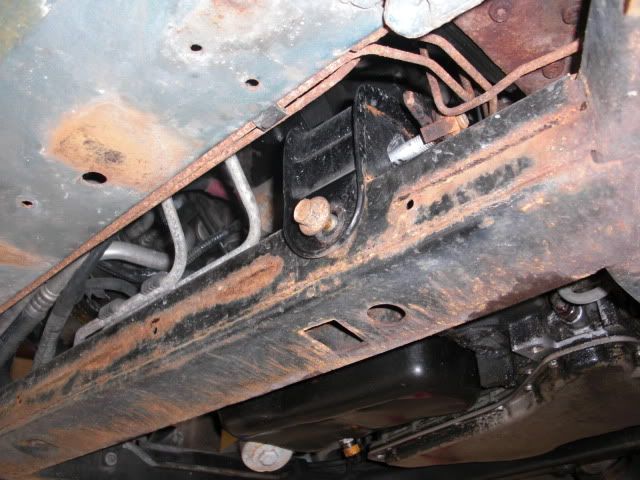

front transmission mount - 1 through bolt

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3174

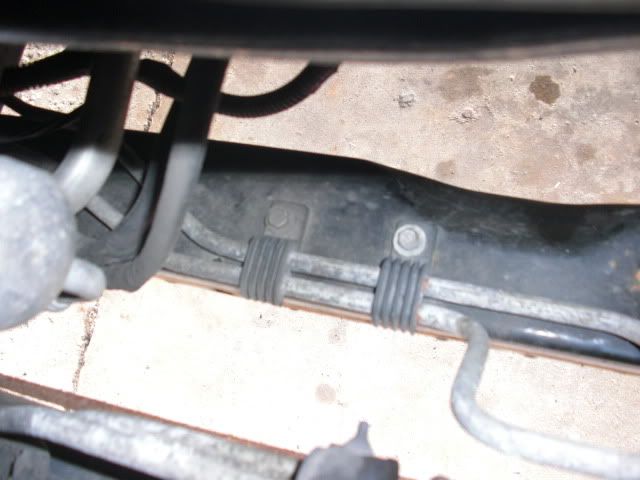

retaining screws for the power steering cooling loop on the passenger side - two screws

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3175
Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3176

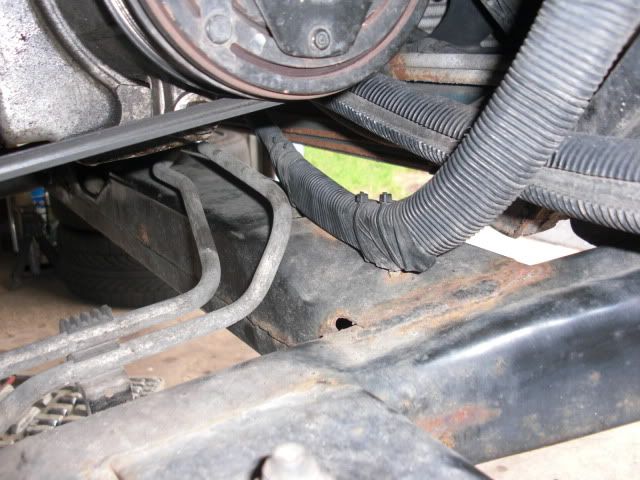

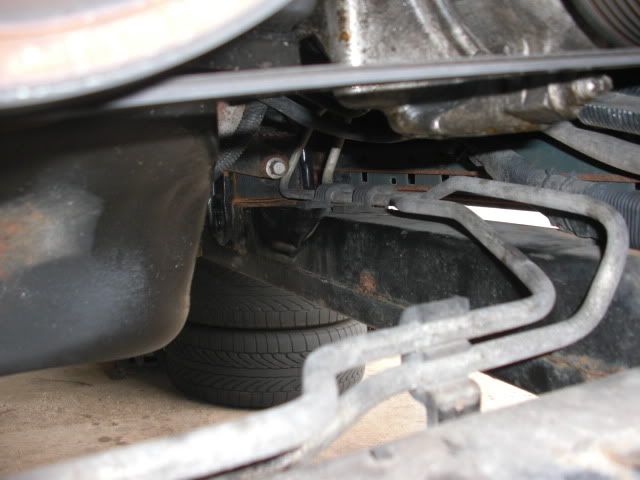

retaining screws for the power steering cooling loop on the front - two screws
Also it's not a bad idea to secure this up with something after you have those four screws out and it's loose so it doesn't get in the way later.

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3177

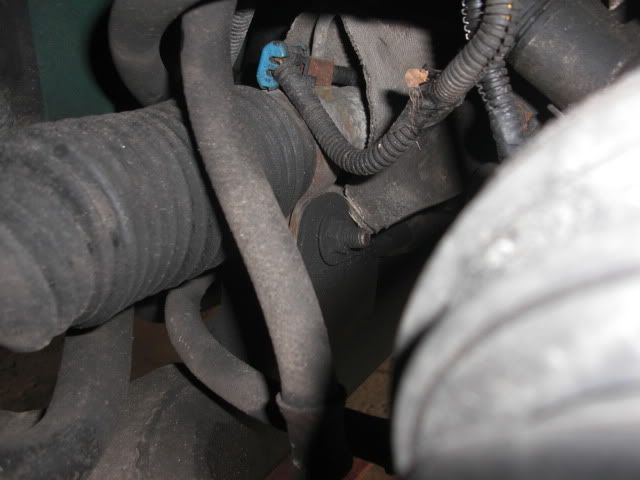

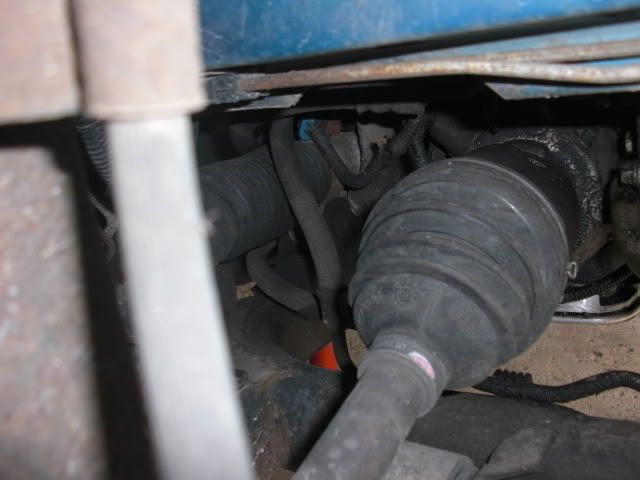

two push in wiring harness retainers

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3178
Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3179
Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3180

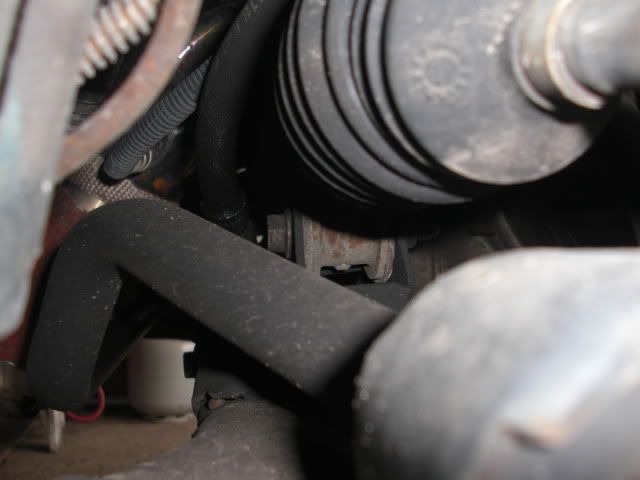

1 bolt on the passenger side mount for the steering rack (the big double ear that sticks up off the cradle)

Once you get into this whole area at the back of the cradle, it will make things much easier to disconnect the sway bar endlinks so you can move the bar back or fourth out of your way.

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3181
You have these four bolts here for the rear transmission/steering rack mount bracket.
There's also one more retaining screw for the power steering cooling lines that sits right on top of the bracket but I can't remember if it screws through the bracket into the cradle or if it just screws in the bracket. Once I get my spare mount bracket back, I'll take a look at it and update this so you know if you need to remove that or not.

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3184

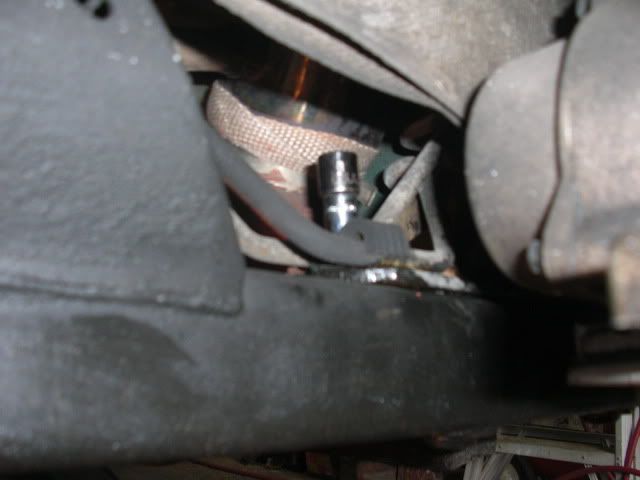

another shot of that retainer screw with a socket on it

That covers all the non-suspension stuff that's attached to the cradle.
The other thing that you need to worry about for removal of the cradle is the control arms which mount with two bolts per arm to the cradle's brackets. You can either remove those bolts for the control arm bushing - cradle mounts or you can pop out the ball joint from the spindle and take the cradle down with the control arms still attached. Mainly it's a matter of whether or not you are going to reuse the same control arms.
The sway bar can and practically needs to come down along with the cradle so just leave the sway bar bushings alone until its out.

With all those items undone, you can freely loosen the six cradle bolts and let it fall at your discretion.

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3187
This is pretty much the amount of leverage I needed to get mine loose so a ratchet is out! 1/2"+ breaker bar and just be careful about your pulling weight. These don't start coming out very smooth at all and can throw you a little bit. Just FYI the bolts are very likely all going to be rust-welded to the upper retainer shafts which means the entire retainer/insulator assembly will all spin along with your bolt when loosening it which is Ok.

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3190

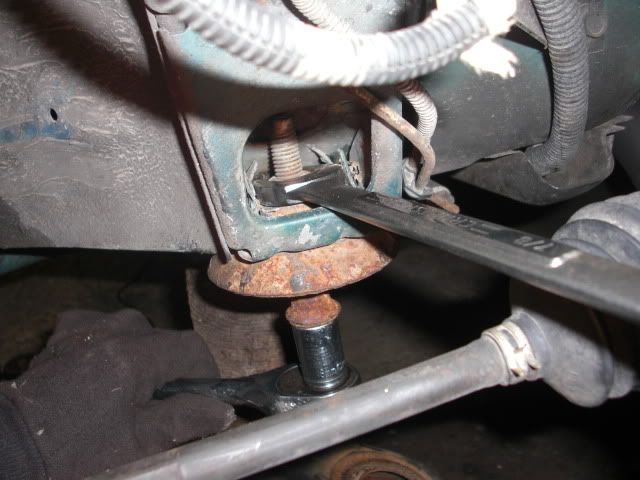

Due to the intense amount of corrosion on my center cradle mounts (location "2" according to the GM books), I needed to get a wrench on the top nut to help hold it in place while I loosened the bolt because otherwise the nut would just spin around inside its cage and obviously not loosen then. Thankfully this was only an issue for the center mounts that give you access to the top nut assemblies. For me, this was only necessary for loosening. They stayed in place just fine while I was tightening the new cradle bolts.

Like I said, the top nuts at cradle mount locations 2 are accessible but if you need to replace them, you're in for a fight because they are fixed in from the factory. I had to replace my passenger side one because when I was trying to loosen it and get the bolt out, the bolt snapped before it came out of the nut at the top.

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3204
There's the aftermath of removing that top nut assembly. The actual nut is cut off at the left of the picture with section of bolt still in it. Getting the plate out of the car involves a lot of strategic prying.

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3206

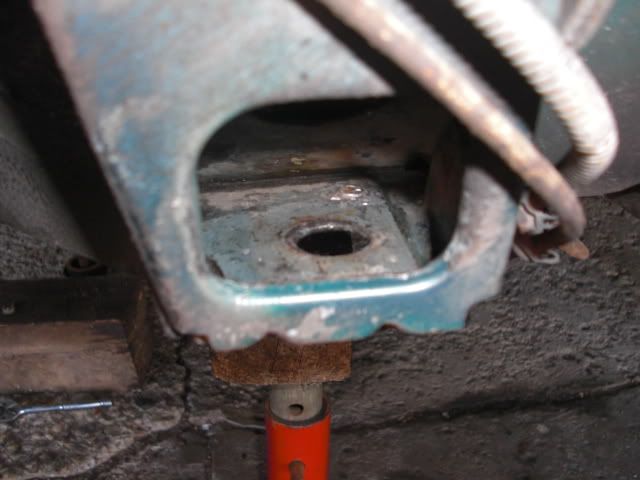

There's the little room where the top nut goes.

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3208
At that point you basically just place the new one in there and you're good to go.

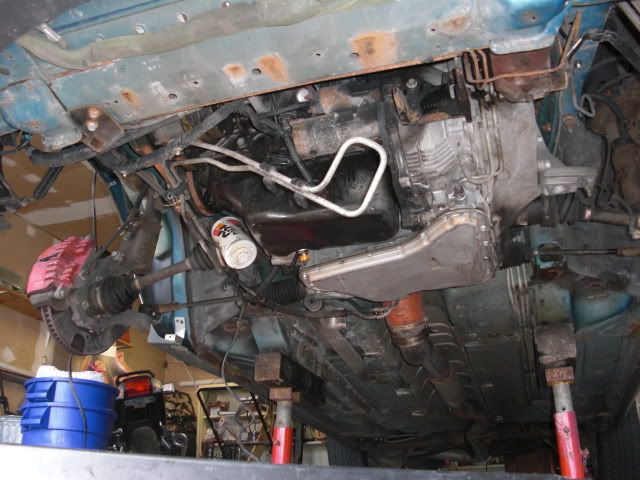

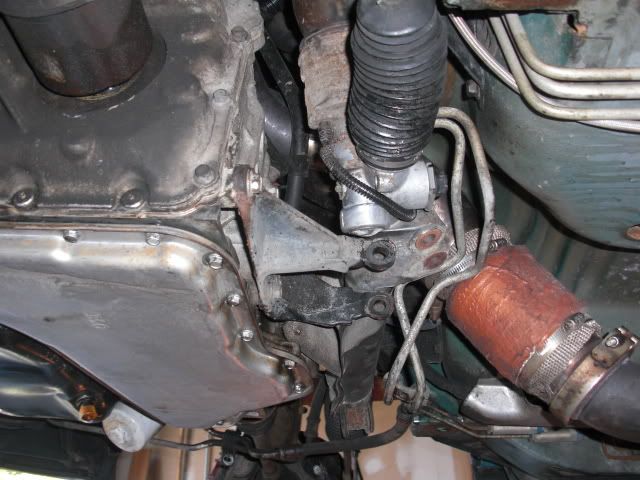

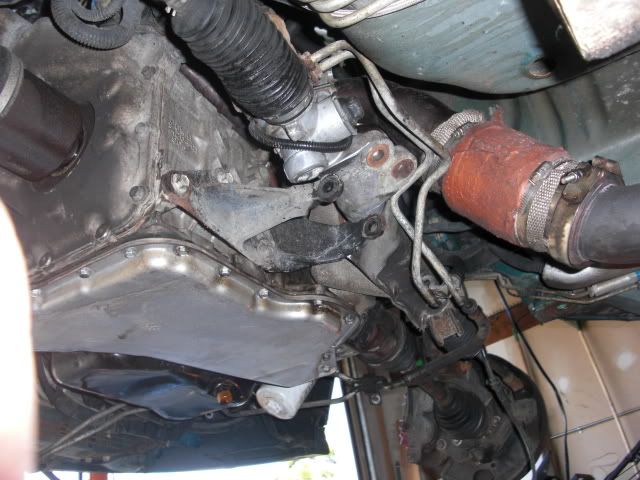

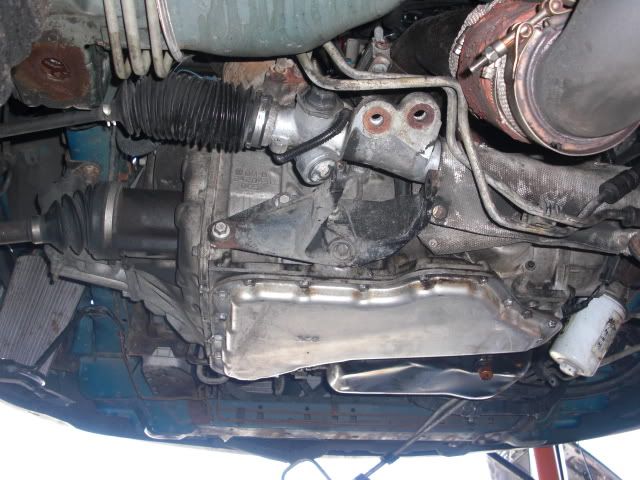

*some cradle-out views*

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3211
Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3212
Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3213
Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 CIMG3214
I also removed my rear trans mount obviously.

****to be continued****

coming up:
cradle reinstall info
cradle spacer mod (for extra hood clearance)


Last edited by turtleman on Wed Apr 20, 2011 11:18 pm; edited 3 times in total
Back to top Go down
BMD
Aficionado
BMD


Name : BMD
Location : Canada
Joined : 2009-04-28
Post Count : 1161
Merit : 36

Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 EmptyWed Apr 20, 2011 2:01 pm

Awesome Codith, if this is the type of detail that we can expect from the rest of the write-up, it will help everyone who is planning to hold on to their Riv and do this one day. If you have part numbers for the cradle bushings, can you include them? Again thanks and I can't wait for your next entry, a + from me. clap

What is holding the motor and trans up at this point?
Back to top Go down
Sponsored content





Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty
PostSubject: Re: Write-Up: Subframe/Cradle Mount Insulators & Bushings   Write-Up: Subframe/Cradle Mount Insulators & Bushings - Page 3 Empty

Back to top Go down

Write-Up: Subframe/Cradle Mount Insulators & Bushings
Back to top
Page 3 of 15Go to page : Previous  1, 2, 3, 4 ... 9 ... 15  Next
 Similar topics
-
» '95 Rear Spring upper and lower insulators?
» P-S-T Polygraphite Bushings
» Write-Up: Filled Rear Motor/Transmission Mount
» Write-Up: Front Subframe/Cradle Mount Mod
» rear shocks, bar and bushings

Permissions in this forum:You cannot reply to topics in this forum
Riv Performance ::   General Tech :: Brakes & Suspension-
Jump to:
