Yeah the main thing is the caliper mounting bolts. You can either drill/tap the existing bracket or get a 12mm to 14mm sleeve and put it in the knuckle. People say not to do that because it might loosen, but I used blue loctite and never had an issue. You can contact some places to get a custom set of lines made but ZZPs work just fine. It might be beneficial to bend the brake line and bracket down/counterclockwise a bit to get a little more clearance with the lines. Don't forget to tie them to the strut so you don't get rubbing issues (this part will be easier with the full weight of the car on the wheels and the wheels turned full lock).
Back to top Go down
charlieRobinson
Expert
charlieRobinson


Name : Charlie
Age : 39
Location : Knoxville, TN
Joined : 2011-05-17
Post Count : 3924
Merit : 31

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptySun Jun 14, 2015 1:24 pm

I am going to tap them to 14mm for sure.
What about hardware?
We need M10X1.0 Banjo bolt for each one? Is that it?



edit:
Forked from club GP

Parts Required:
There seems to be some differences between companies as to what exactly you get with “loaded” and “unloaded” rebuilt calipers. It’s worth your while to have the calipers “in hand” before you try to determine which additional parts you’ll need.

Complete Right & Left Calipers for a 1998 – 2002 F-Body (Camaro or Firebird)
Most complete would be from a salvage yard. Get the complete calipers and brackets & banjo bolts
303mm Rotors for a 1998 – 1999 Oldsmobile Intrigue – (JA9 Heavy Duty brake option) There is also a 278mm rotor for these years Intrigue, DON’T GET THESE!
DOT 3 Brake fluid I went through a quart pretty quick, better get two, especially if you’re doing anything to the rear brakes.
Brake Pads of your choice, if they didn’t come with the calipers
Spray Brake Cleaner – I used 2 cans, although I did the rears as well.
4 Crush Washers
GM Part Number 10139097 ($3.50 Qty 10 from www.gmpartsdirect.com )

The following 1998 – 2002 F-Body parts aren’t needed if you got them with the calipers.
1 Right Caliper
GM Part Number 18042492 ($94.48 each from www.gmpartsdirect.com )
1 Left Caliper
GM Part Number 18042491 ($79.40 each from www.gmpartsdirect.com )
2 Caliper Brackets
GM Part Number 18026163 ($57.48 each from www.gmpartsdirect.com )
2 Banjo Bolts
GM Part Number 22163795 ($2.23 each from www.gmpartsdirect.com )
The Grand Prix Banjo bolts are the wrong thread.
4 Caliper Pins
GM Part Number 12530697 ($3.35 each from www.gmpartsdirect.com )
Comes with New calipers.
4 Bracket Boots
GM Part Number 18026151 ($6.66 each from www.gmpartsdirect.com )
These are pricey for a little rubber boot; try a second source for them.
The “unloaded” rebuilt calipers I got from NAPA came with them.
2 Pair F-Body Brake Pad Retainers (shim)
GM Part Number 18026164 ($6.25 per pair from www.gmpartsdirect.com )
Comes with New Bracket.

Tools Required:
15mm Wench
10mm Wrench
15mm Socket & Ratchet
12mm Socket
Torque Wrench ft/lbs
14x2.0mm Tap - Optional (see preface) you’ll need this if your machinist doesn’t have one. Part Number 8305A22 $16.44 each from www.mcmaster.com
C-Clamp
Pressure Bleeder (pyfc.com has a pretty nice one) This tool is optional but it makes life a lot easier and turns this into a “one person” job.
Back to top Go down
charlieRobinson
Expert
charlieRobinson


Name : Charlie
Age : 39
Location : Knoxville, TN
Joined : 2011-05-17
Post Count : 3924
Merit : 31

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyThu Jun 18, 2015 1:50 pm

Can these be had at the local parts store?
I just called advance and they said they dont have the banjo bolts. I have the copper washers. Just need 2 bolts.

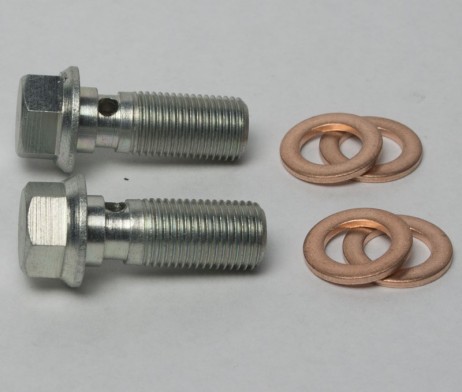

http://www.brakeconnect.com/product/banjo-bolt-m10-x-1-0-long

Write-Up: F-Body Brake Mod - Page 18 BQ8094_06-462x392
Back to top Go down
matt270avian
Expert
matt270avian


Name : Matt
Age : 28
Location : Frederick, MD
Joined : 2012-01-15
Post Count : 2681
Merit : 54

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyThu Jun 18, 2015 2:09 pm

Just run up to a junkyard and snag them. You could honestly grab the whole setup from one.
Back to top Go down
Abaddon
Expert
Abaddon


Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4316
Merit : 185

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyThu Jun 18, 2015 2:18 pm

Try Napa
Back to top Go down
charlieRobinson
Expert
charlieRobinson


Name : Charlie
Age : 39
Location : Knoxville, TN
Joined : 2011-05-17
Post Count : 3924
Merit : 31

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyThu Jun 18, 2015 4:59 pm

no napa no advance no autozone

its cheaper to just order with 1-2 day ship than drive out to junk yard and spend time on scavenger hunt. Should have all parts needed by Saturday. Now the questions is... what color calipers??? Black or Red?

TIME IS MONEY, SON!
Back to top Go down
Abaddon
Expert
Abaddon


Name : Scott
Location : Macomb, Michigan
Joined : 2010-02-24
Post Count : 4316
Merit : 185

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyThu Jun 18, 2015 5:21 pm

charlieRobinson wrote:
Now the questions is... what color calipers??? Black or Red?

ANY color caliper makes the car faster.....
Back to top Go down
charlieRobinson
Expert
charlieRobinson


Name : Charlie
Age : 39
Location : Knoxville, TN
Joined : 2011-05-17
Post Count : 3924
Merit : 31

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyThu Jun 18, 2015 5:36 pm

AA's sunburst yellow may be the fastest....

Do you happen to know the pitch of the 14mm Riv bracket bolt? I need to get these badboys tapped but I need to know the pitch to do so.

Thank you!
Back to top Go down
matt270avian
Expert
matt270avian


Name : Matt
Age : 28
Location : Frederick, MD
Joined : 2012-01-15
Post Count : 2681
Merit : 54

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyThu Jun 18, 2015 5:39 pm

14x2mm IIRC. I've got the tap at home to confirm it, even sell it to you if you want.
Back to top Go down
charlieRobinson
Expert
charlieRobinson


Name : Charlie
Age : 39
Location : Knoxville, TN
Joined : 2011-05-17
Post Count : 3924
Merit : 31

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyThu Jun 18, 2015 5:45 pm

matt270avian wrote:
14x2mm IIRC. I've got the tap at home to confirm it, even sell it to you if you want.


Thanks, Matt! Please let me know! Really dont want to take my brakes apart to find out.
Back to top Go down
charlieRobinson
Expert
charlieRobinson


Name : Charlie
Age : 39
Location : Knoxville, TN
Joined : 2011-05-17
Post Count : 3924
Merit : 31

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyThu Jun 18, 2015 9:06 pm

Aaron, you have this all over the thread but do you have the dimension they need to be tapped to? 14mm with what pitch?

Note from Admin: DO NOT USE THE BUSHING SPACER SLEEVES AS SHOWN IN THE CLUBGP WRITE-UP. THESE HAVE SHOWN TO WEAR AND CAUSE LOOSENING OF THE CALIPER. SOLUTION - HAVE YOUR F-BODY BRACKETS DRILLED AND TAPPED TO ACCEPT THE OEM BUICK CALIPER BOLTS.
Back to top Go down
matt270avian
Expert
matt270avian


Name : Matt
Age : 28
Location : Frederick, MD
Joined : 2012-01-15
Post Count : 2681
Merit : 54

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyThu Jun 18, 2015 9:32 pm

Just a side note, me and many others have been running spacers for awhile now with no issues. I used a bit of blue loctite as a precaution though.
Back to top Go down
charlieRobinson
Expert
charlieRobinson


Name : Charlie
Age : 39
Location : Knoxville, TN
Joined : 2011-05-17
Post Count : 3924
Merit : 31

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyThu Jun 18, 2015 9:36 pm

AA wrote:
Just a note to anyone interested, the machine specs for converting F-Body caliper brackets to accept our native G-Body (and W-Body) caliper bolts are:

Tap size: M14x2

Dia: 14.000 mm

TPI: ~13

Pitch: 2.000

Drill size: 12 mm


These are the hole & thread specs a machine shop would need to drill & tap the F-Body brackets for direct bolt-on to Riviera (eliminates need for spacer bushings).

AWWW YEAH! These needs to go to first post of the thread! Started at page 1 and finally found it on page 18 SCORE!

FBODS THIS WEEKEND, BABY yay
Back to top Go down
charlieRobinson
Expert
charlieRobinson


Name : Charlie
Age : 39
Location : Knoxville, TN
Joined : 2011-05-17
Post Count : 3924
Merit : 31

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyThu Jun 18, 2015 9:37 pm

matt270avian wrote:
Just a side note, me and many others have been running spacers for awhile now with no issues. I used a bit of blue loctite as a precaution though.

Wbody kids, aka fbod pioneers, consider spacers to be a sin against GM. Tap 'em and do it right, son.
Back to top Go down
Karma
Aficionado
Karma


Name : Andrew
Age : 40
Location : Ontario, Canada
Joined : 2008-01-14
Post Count : 1949
Merit : 123

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyFri Jun 19, 2015 11:35 am

What color are you painting your calipers, charlie?

_________________
Warning!
Back to top Go down
matt270avian
Expert
matt270avian


Name : Matt
Age : 28
Location : Frederick, MD
Joined : 2012-01-15
Post Count : 2681
Merit : 54

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyFri Jun 19, 2015 11:52 am

charlieRobinson wrote:
Wbody kids, aka fbod pioneers, consider spacers to be a sin against GM. Tap 'em and do it right, son.

Yeah I would rather have them tapped, but I just never got around to it......
Back to top Go down
charlieRobinson
Expert
charlieRobinson


Name : Charlie
Age : 39
Location : Knoxville, TN
Joined : 2011-05-17
Post Count : 3924
Merit : 31

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyFri Jun 19, 2015 3:23 pm

Got them tapped today. First shop wanted $63 + tax + I provide tap. Nah. Second shop wanted $15-20 but couldnt guarantee theyd be done today. Nah. 3rd shop said bring em over and would do it for $25. Turned out to be the father of a kid I went to high school with. I gave him 20% tip.

Banjos should be here today and SS brake lines and 2.8" pulley should be here tomorrow. THEN ITS GAME TIME.

Karma, the calipers showed up with red powder coat. I was going to paint them black as to not draw attention but I dont know. I might just leave them red and see what happens.

I will get photos of everything before/during install.( I say I will but I might not so dont hold it against me if I dont)

It sure is nice having rebuilt calipers. They are clean and all the boots are new. When I did my brakes 2 years ago the boots were just crap so I cant imagine what they look like now, but we'll see soon.


Question tho. the brackets are painted completely, including the side that mates with the steering knuckle. I think I am going to sand the paint off so it has a better mating surface. Any thoughts on this? And what all am I supposed to grease up before bolting it all down?
Back to top Go down
AA
Administrator
AA


Name : Aaron
Age : 47
Location : C-bus, Ohio
Joined : 2007-01-13
Post Count : 18452
Merit : 252

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyFri Jun 19, 2015 7:06 pm

You could sand the paint smooth if it's bumpy, but don't need to go all the way to the iron. As long as you torque the caliper bolts correctly, the paint shouldn't cause a problem. It's not a sealing surface (like an engine head).

_________________
'05 GTO 6.0L • 6-spd • 95k miles • 0-60: 4.8s • 16.9 avg MPG • Nelson Ledges Lap: 1:26

'95 Celica GT 2.2L • 5-spd • 165k miles • 0-60: yes

'98 SC Riviera • 281k miles • 298 HP/370 TQ • 0-60: 5.79s • ET: 13.97 @ 99.28 • 4087 lb • 20.1 avg MPG • Nelson Ledges Lap: 1:30
3.4" pulley • AL104 plugs • 180º t-stat • FWI w/K&N • 1.9:1 rockers • OR pushrods • LS6 valve springs • SLP headers • ZZP fuel rails
KYB GR2 struts • MaxAir shocks • Addco sway bars • UMI bushings • GM STB • Enkei 18" EV5s w/ Dunlop DZ101s • F-body calipers
EBC bluestuff/Hawk HP plus • SS lines • Brembo slotted discs • DHP tuned • Aeroforce • Hidden Hitch

^^^ SOLD ^^^ frown

'70 Ninety-Eight Holiday Coupe 455cid • 116k miles
^^^ SOLD ^^^ frown
Back to top Go down
http://www.cardomain.com/ride/657082/4
matt270avian
Expert
matt270avian


Name : Matt
Age : 28
Location : Frederick, MD
Joined : 2012-01-15
Post Count : 2681
Merit : 54

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyFri Jun 19, 2015 8:04 pm

I slapped mine on with a coat of paint between. If it's close enough to rub then you've got bigger issues than the paint.
Back to top Go down
charlieRobinson
Expert
charlieRobinson


Name : Charlie
Age : 39
Location : Knoxville, TN
Joined : 2011-05-17
Post Count : 3924
Merit : 31

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptySat Jun 20, 2015 1:52 am

DOT 4 fluid is OK, right?
Back to top Go down
matt270avian
Expert
matt270avian


Name : Matt
Age : 28
Location : Frederick, MD
Joined : 2012-01-15
Post Count : 2681
Merit : 54

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptySat Jun 20, 2015 9:36 am

Yep.
Back to top Go down
RivieraRyan
Enthusiast



Joined : 2008-05-04
Post Count : 115
Merit : 7

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyWed Jul 12, 2017 11:04 pm

I have 16 inch Cadillac rims from the mid to late 90's I would like to keep. Does this mean I can't do the f body brake upgrade?
Back to top Go down
matt270avian
Expert
matt270avian


Name : Matt
Age : 28
Location : Frederick, MD
Joined : 2012-01-15
Post Count : 2681
Merit : 54

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyFri Jul 21, 2017 5:30 pm

If the offset and design is similar to the OEM wheels, yes. It's such a tight fit with the stock wheels that any other 16s are a crapshoot. YMMV
Back to top Go down
albertj
Master
albertj


Name :
Location : Finger Lakes of New York State
Joined : 2007-05-31
Post Count : 8687
Merit : 181

Write-Up: F-Body Brake Mod - Page 18 Empty
PostSubject: Re: Write-Up: F-Body Brake Mod   Write-Up: F-Body Brake Mod - Page 18 EmptyFri Jul 21, 2017 9:25 pm

charlieRobinson wrote:
DOT 4 fluid is OK, right?
I use DOT4 now, and prefer it.
Back to top Go down
