 First WOT scan on new motor...Problems Detected

Go down
3 posters
AuthorMessage
Bowersk
Enthusiast
Bowersk


Name : Bowers
Age : 44
Location : Okawville, Il
Joined : 2011-01-19
Post Count : 219
Merit : 7

First WOT scan on new motor...Problems Detected Empty
PostSubject: First WOT scan on new motor...Problems Detected   First WOT scan on new motor...Problems Detected EmptyWed Mar 07, 2012 10:26 pm

Ok i've seen this here somewhere before but cant find it after searching for 30 minutes. What's the equation to convert Map kPa and Barometric pressure kPa into boost PSI?

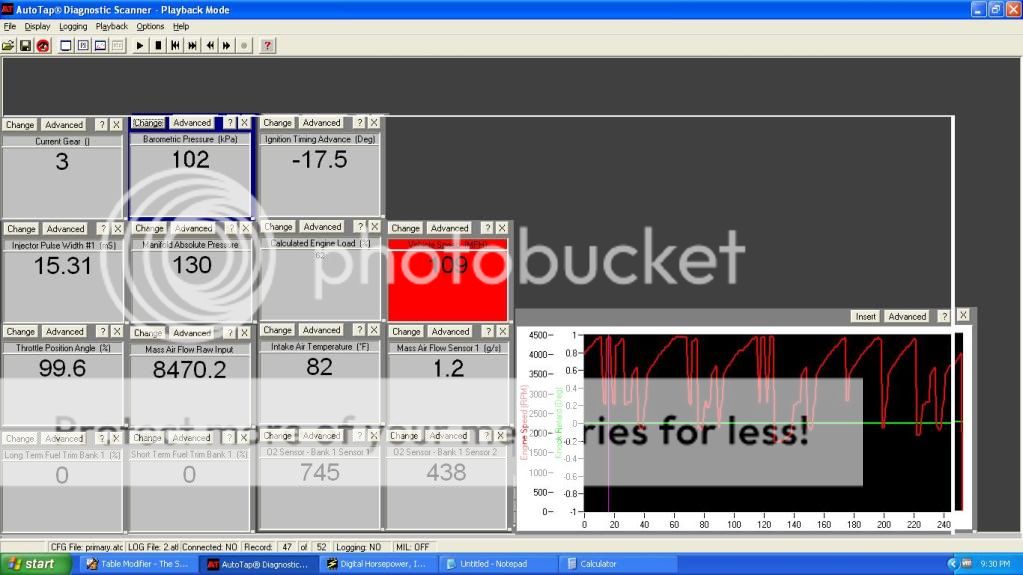

First logged WOT run on the new motor. Have some weird numbers with my LTFT and STFT but I just reset them earlier today. I was just curious as to Boost PSI.

High end of the run:

Map kPa = 126
Barometric Pressure kPa = 102

So from what I've seen posted on other sites 126 - 102 = 24 x .49 = 11.76 PSI ?

First WOT scan on new motor...Problems Detected Wotscan1


Last edited by Bowersk on Thu Mar 08, 2012 10:04 am; edited 1 time in total
