AuthorMessage
DOHCZ34
Special



Name : Chris
Location : Twin Cities, MN
Joined : 2009-01-17
Post Count : 2
Merit : 0

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptySat Jan 17, 2009 11:22 pm

palermocorey90 wrote:
i have a question, is it true that ur gonna be putting my cam,in to Travis's car

Yep. Should be a strong running set-up.
Back to top Go down
T Riley
Guru
T Riley


Name : Travis
Age : 34
Location : Minnesconsin
Joined : 2007-02-08
Post Count : 5127
Merit : 10

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptySat Jan 17, 2009 11:24 pm

DOHCZ34 wrote:
palermocorey90 wrote:
i have a question, is it true that ur gonna be putting my cam,in to Travis's car

Yep. Should be a strong running set-up.



cool
Back to top Go down
http://www.rivperformance.com
palermocorey90
Expert
palermocorey90


Name : Corey
Age : 34
Location : Rome NY
Joined : 2007-10-03
Post Count : 2968
Merit : -24

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptySun Jan 18, 2009 11:01 am

Kemp, what do you use to scuff it up. like 40 grit or something like that. BTW Dave Pettinelli Built my car twisted

V Bad ASS DD
Back to top Go down
http://www.myspace.com/glowinstrat
T Riley
Guru
T Riley


Name : Travis
Age : 34
Location : Minnesconsin
Joined : 2007-02-08
Post Count : 5127
Merit : 10

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyMon Jan 19, 2009 2:32 am

palermocorey90 wrote:
the question wasnt for you . so STFU

... no seriously WHAT PART are you questioning if he used 40 grit sandpaper.
Back to top Go down
http://www.rivperformance.com
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyMon Jan 19, 2009 9:09 am

98riviera98 wrote:

... no seriously WHAT PART are you questioning if he used 40 grit sandpaper.

the edges of the silencing vents to be filled

I would cut a groove into the wall to make the channel shaped more like
this: =====< >======
instead of this: ======l l=======
Back to top Go down
palermocorey90
Expert
palermocorey90


Name : Corey
Age : 34
Location : Rome NY
Joined : 2007-10-03
Post Count : 2968
Merit : -24

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyMon Jan 19, 2009 12:04 pm

thanks cody
Back to top Go down
http://www.myspace.com/glowinstrat
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyMon Feb 16, 2009 11:28 am

Photobucket

Maybe we should just forget about filling the silencing vents...
Back to top Go down
TonySmooth89
Aficionado
TonySmooth89


Name : Anthony
Age : 35
Location : Florida
Joined : 2007-11-14
Post Count : 2410
Merit : 16

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyMon Feb 16, 2009 12:42 pm

turtleman wrote:
Photobucket

Maybe we should just forget about filling the silencing vents...

Is that yours?? That sucks man.
Back to top Go down
oldsman105
Junkie
oldsman105


Name : Enrique Patino
Age : 39
Location : Queens, New York City
Joined : 2007-01-24
Post Count : 756
Merit : 10

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyMon Feb 16, 2009 2:07 pm

Oh snap! what happend?
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyMon Feb 16, 2009 8:03 pm

When I took the blower off to replace the gaskets and stuff now, I just found it like that. I had no idea that it happened. That chunk was just MIA. So I said screw it and punched out the rest of the quickweld. I really don't understand how that happened because the rest of it didn't come very easily. It took some work. Anyway I really didn't notice any difference in how loud it is after I put it back on vents open and it isn't supposed to have any effect on performance so I'm deeming it pointless to fill them.
Back to top Go down
Karma
Aficionado
Karma


Name : Andrew
Age : 40
Location : Ontario, Canada
Joined : 2008-01-14
Post Count : 1949
Merit : 123

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyMon Feb 16, 2009 9:53 pm

so... that quickweld chunk is somewhere in the engine? scary...

_________________
Warning!
Back to top Go down
Mr.Riviera
Expert
Mr.Riviera


Name : Matthew
Age : 38
Location : Florida
Joined : 2007-01-17
Post Count : 4394
Merit : 101

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyThu Nov 05, 2009 11:06 am

ok, i'm reviving this thread to get some feedback.
here is my stock blower:
Porting & Polishing Gen III Blower - Page 3 Blower10

from what i'm seeing of all the pics the V isnt really enlarged that much. Also, most of the cnc port jobs remove the bar and port it all the way back to the bypass hole. The lim is only like 4" long so unless that too is ported all the way out i dont see how porting anything past the bar would help.
As for the V, is there such a thing as too aggressive?

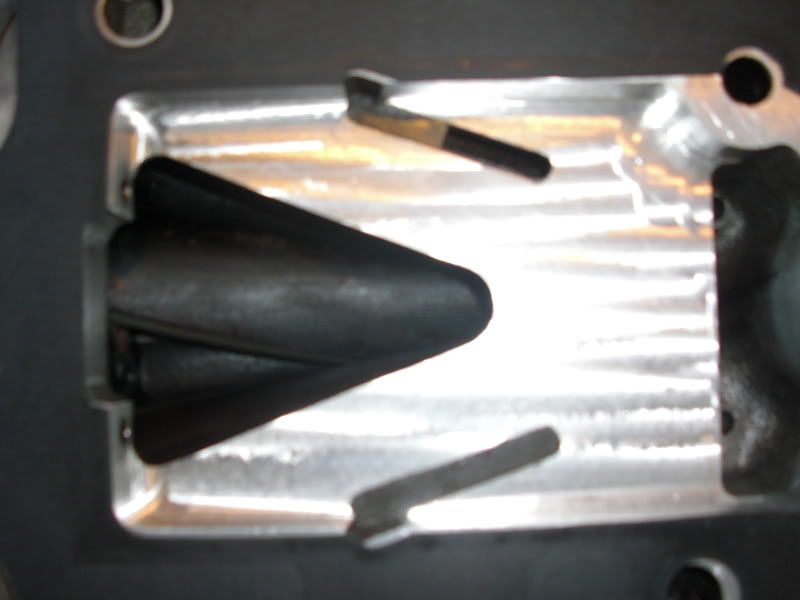

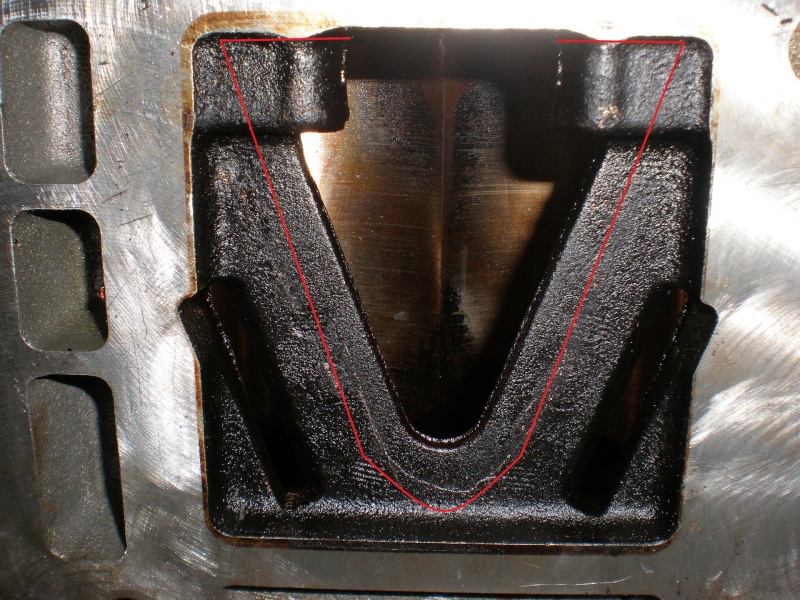

here is what i'm thinking for the V:
Porting & Polishing Gen III Blower - Page 3 Blower11


I will post pics of the lim later.

_________________
1996 with 254k miles, L32 4" FWI -> ported N* -> Ported Gen V w/3.0" Pulley, Stage 3 Phenolic I/C, ZZP FMHE, 1.84 RR, Headers and 3" pipe to mufflers, F-body brakes, and lowered on Eibachs. -RIP
AMG C400 White on black. Stage 2 w/E30 - 11.9@117 -daily
Porting & Polishing Gen III Blower - Page 3 Dsc_0110
Back to top Go down
Mr.Riviera
Expert
Mr.Riviera


Name : Matthew
Age : 38
Location : Florida
Joined : 2007-01-17
Post Count : 4394
Merit : 101

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyThu Nov 05, 2009 11:19 am

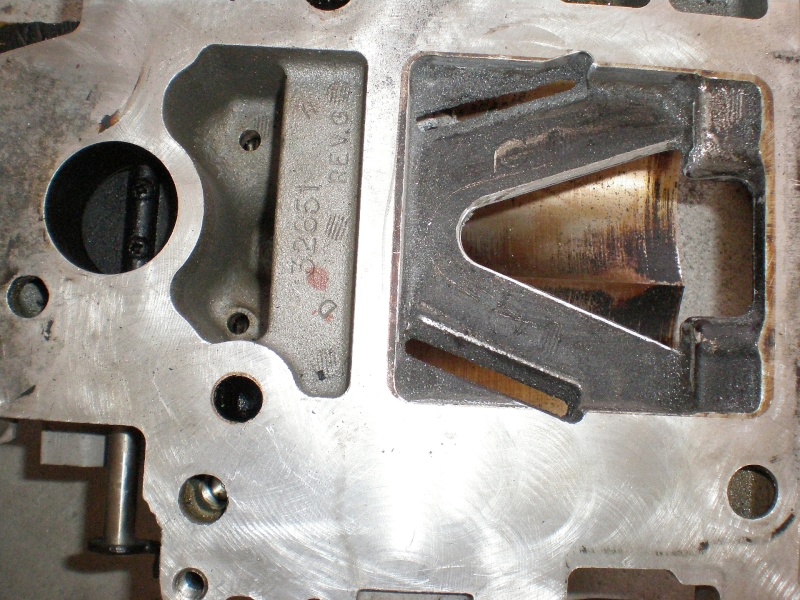

a pic of entire blower:
Porting & Polishing Gen III Blower - Page 3 Blower12

LIM with a line to show where i think i'm going to port it.
Porting & Polishing Gen III Blower - Page 3 Lim10

_________________
1996 with 254k miles, L32 4" FWI -> ported N* -> Ported Gen V w/3.0" Pulley, Stage 3 Phenolic I/C, ZZP FMHE, 1.84 RR, Headers and 3" pipe to mufflers, F-body brakes, and lowered on Eibachs. -RIP
AMG C400 White on black. Stage 2 w/E30 - 11.9@117 -daily
Porting & Polishing Gen III Blower - Page 3 Dsc_0110
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyThu Nov 05, 2009 4:10 pm

I wouldn't even go that far with the opening. A sure way to do it is to simply angle cut and smooth the edges where they are and basically turn the arrow head shape into a triangle. Don't make the body of the opening wider or longer - just take care of the back area. The angle cutting is very easy work for a machine and quite a bit more work to do by hand.

I would do nothing to the LIM as far as opening it up unless you plan to fit an IC now. You could just trim the front edge of the opening (the side away from the BBV port) to make sure its clear of the blower outlet after you port it. There's no reason to open the intake if you're leaving the blower partitioned.

Make sure you grab a couple shorter bolts for the bottom of the blower driveneck so they don't stick out into the outlet area after you port it.
Back to top Go down
Mr.Riviera
Expert
Mr.Riviera


Name : Matthew
Age : 38
Location : Florida
Joined : 2007-01-17
Post Count : 4394
Merit : 101

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyThu Nov 05, 2009 7:25 pm

well i had already started the lim before you posted so i just kept going.
here is the lim finished (except for the studs in it). still a little bit of carbon in the runners, but i'm out of cleaner for the moment.
Porting & Polishing Gen III Blower - Page 3 Pb050011

Im getting ready to start the blower. Here is a revised drawing of my plan (does it look alright?):
Porting & Polishing Gen III Blower - Page 3 Pb050012

_________________
1996 with 254k miles, L32 4" FWI -> ported N* -> Ported Gen V w/3.0" Pulley, Stage 3 Phenolic I/C, ZZP FMHE, 1.84 RR, Headers and 3" pipe to mufflers, F-body brakes, and lowered on Eibachs. -RIP
AMG C400 White on black. Stage 2 w/E30 - 11.9@117 -daily
Porting & Polishing Gen III Blower - Page 3 Dsc_0110
Back to top Go down
Rickw
Guru



Name : Rick
Location : Lancaster, MA
Joined : 2008-09-13
Post Count : 6282
Merit : 119

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyThu Nov 05, 2009 7:52 pm

Matthew,
What kind of tools are you using to do the work.
Just curious, do you have air tools ?
If so, what are you using to cut, grind and blend the cast aluminum. ?
Back to top Go down
Mr.Riviera
Expert
Mr.Riviera


Name : Matthew
Age : 38
Location : Florida
Joined : 2007-01-17
Post Count : 4394
Merit : 101

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyThu Nov 05, 2009 7:58 pm

no air tools. just the neighbors dremel with 420 cut wheels and a grinding stone attachment.
I've literally been working on the car all day today, and plan to again tomorrow.

_________________
1996 with 254k miles, L32 4" FWI -> ported N* -> Ported Gen V w/3.0" Pulley, Stage 3 Phenolic I/C, ZZP FMHE, 1.84 RR, Headers and 3" pipe to mufflers, F-body brakes, and lowered on Eibachs. -RIP
AMG C400 White on black. Stage 2 w/E30 - 11.9@117 -daily
Porting & Polishing Gen III Blower - Page 3 Dsc_0110
Back to top Go down
Rickw
Guru



Name : Rick
Location : Lancaster, MA
Joined : 2008-09-13
Post Count : 6282
Merit : 119

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyThu Nov 05, 2009 8:12 pm

Did you ask Travis if he still has a LIM for sale.
He advertised 2 L67's for sale last month, but he probably moved them quick IDK.
Back to top Go down
Mr.Riviera
Expert
Mr.Riviera


Name : Matthew
Age : 38
Location : Florida
Joined : 2007-01-17
Post Count : 4394
Merit : 101

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyFri Nov 06, 2009 4:16 pm

progress shot of blower:
still have to finish removing the bar and then a final hand sanding to smooth it more.
Porting & Polishing Gen III Blower - Page 3 Pb060010

_________________
1996 with 254k miles, L32 4" FWI -> ported N* -> Ported Gen V w/3.0" Pulley, Stage 3 Phenolic I/C, ZZP FMHE, 1.84 RR, Headers and 3" pipe to mufflers, F-body brakes, and lowered on Eibachs. -RIP
AMG C400 White on black. Stage 2 w/E30 - 11.9@117 -daily
Porting & Polishing Gen III Blower - Page 3 Dsc_0110
Back to top Go down
T Riley
Guru
T Riley


Name : Travis
Age : 34
Location : Minnesconsin
Joined : 2007-02-08
Post Count : 5127
Merit : 10

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyFri Nov 06, 2009 5:04 pm

hmm looks pretty good dogg.
Back to top Go down
http://www.rivperformance.com
robotennis61
Guru
robotennis61


Name : robotennis
Age : 63
Location : las vegas
Joined : 2007-12-17
Post Count : 5562
Merit : 143

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyFri Nov 06, 2009 5:07 pm

wow! interesting work.
Back to top Go down
Snowdog
Addict
Snowdog


Name : Timo
Age : 38
Location : Finland
Joined : 2008-10-04
Post Count : 732
Merit : 24

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyFri Nov 06, 2009 5:10 pm

are you using shorter polts now on the snout?
(2 of the polt holdes are shorter now and open to the interjor of SC)
Back to top Go down
Mr.Riviera
Expert
Mr.Riviera


Name : Matthew
Age : 38
Location : Florida
Joined : 2007-01-17
Post Count : 4394
Merit : 101

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyFri Nov 06, 2009 5:52 pm

planned on it but couldnt find bolts like them at the auto store. i'll have tom check somewhere else later. main thing right now is getting the car running so i can go to work and school.

_________________
1996 with 254k miles, L32 4" FWI -> ported N* -> Ported Gen V w/3.0" Pulley, Stage 3 Phenolic I/C, ZZP FMHE, 1.84 RR, Headers and 3" pipe to mufflers, F-body brakes, and lowered on Eibachs. -RIP
AMG C400 White on black. Stage 2 w/E30 - 11.9@117 -daily
Porting & Polishing Gen III Blower - Page 3 Dsc_0110
Back to top Go down
Karma
Aficionado
Karma


Name : Andrew
Age : 40
Location : Ontario, Canada
Joined : 2008-01-14
Post Count : 1949
Merit : 123

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyFri Nov 06, 2009 6:09 pm

For her blower port and polish; I think the wife made some thick aluminum washers on the lathe the correct length so that the old bolts could be reused. I assumed she would just cut the bolts, but she assumed she would make some washers. Differences in how guys vs girls solve problems i guess.

_________________
Warning!
Back to top Go down
T Riley
Guru
T Riley


Name : Travis
Age : 34
Location : Minnesconsin
Joined : 2007-02-08
Post Count : 5127
Merit : 10

Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 EmptyFri Nov 06, 2009 8:01 pm

Karma wrote:
For her blower port and polish; I think the wife made some thick aluminum washers on the lathe the correct length so that the old bolts could be reused. I assumed she would just cut the bolts, but she assumed she would make some washers. Differences in how guys vs girls solve problems i guess.

pics of wife or ban lol

wink
Back to top Go down
http://www.rivperformance.com
Sponsored content





Porting & Polishing Gen III Blower - Page 3 Empty
PostSubject: Re: Porting & Polishing Gen III Blower   Porting & Polishing Gen III Blower - Page 3 Empty

Back to top Go down

Porting & Polishing Gen III Blower
Back to top
Page 3 of 6Go to page : Previous  1, 2, 3, 4, 5, 6  Next
 Similar topics
-
» L67 head porting
» polishing my SC
» Write-Up: How to Polish a Supercharger with pics
» porting m62
» Porting M90 the third generation

Permissions in this forum:You cannot reply to topics in this forum
Riv Performance ::   Supercharged 3800 Tech :: Series II Engine & Transmission-
Jump to:
