Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptySat Jul 05, 2008 11:24 pm

Update for today...

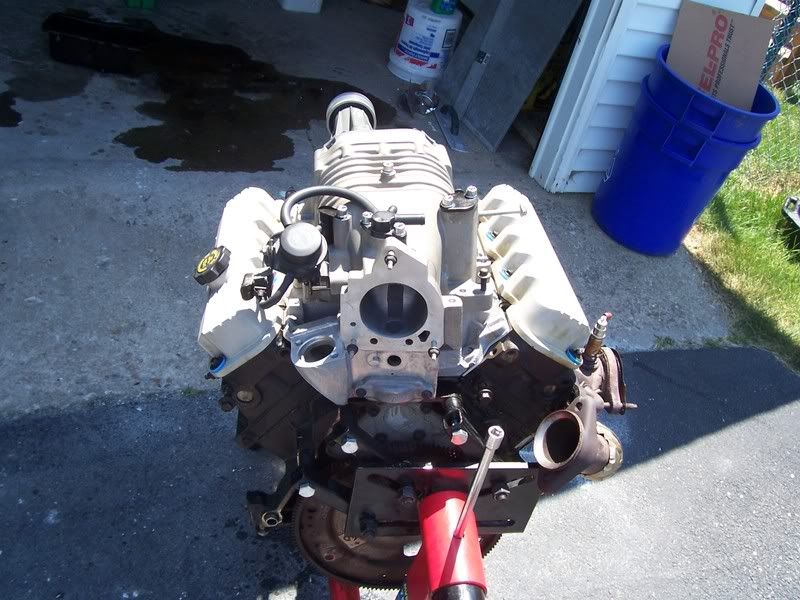

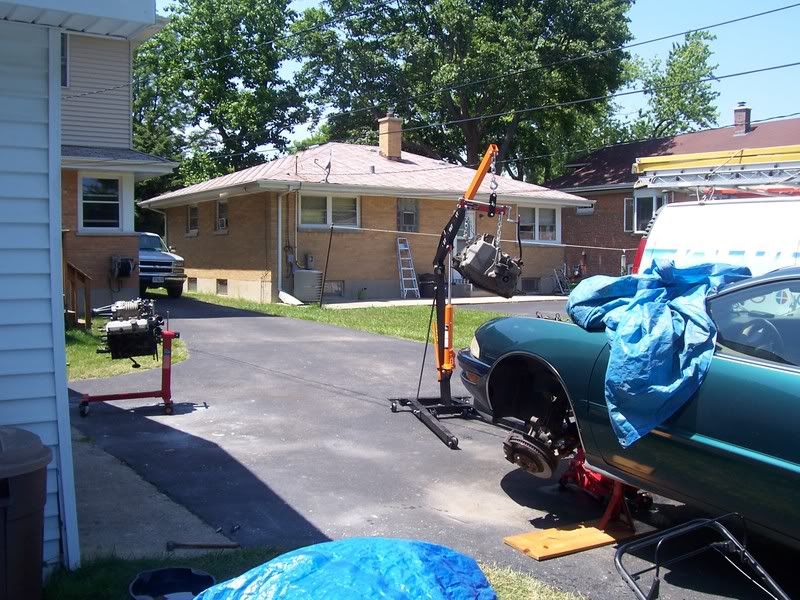

motor out trans out

Photobucket

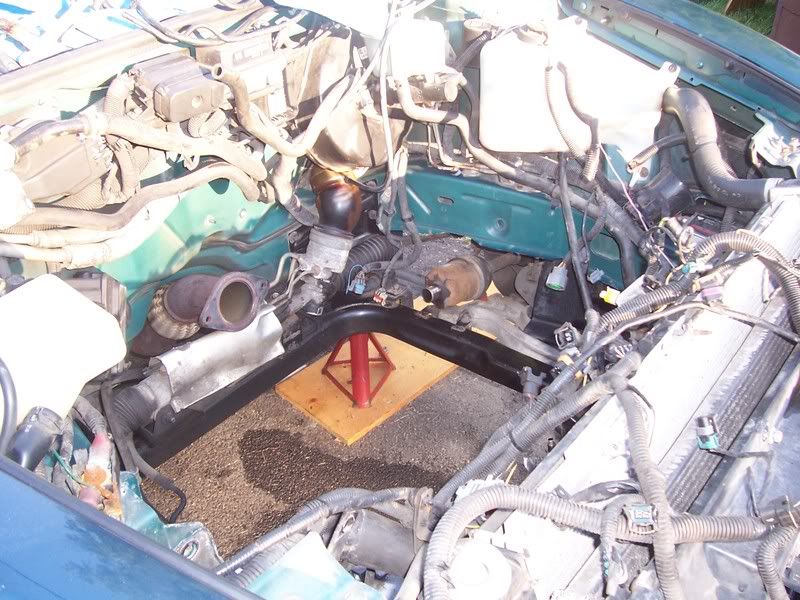

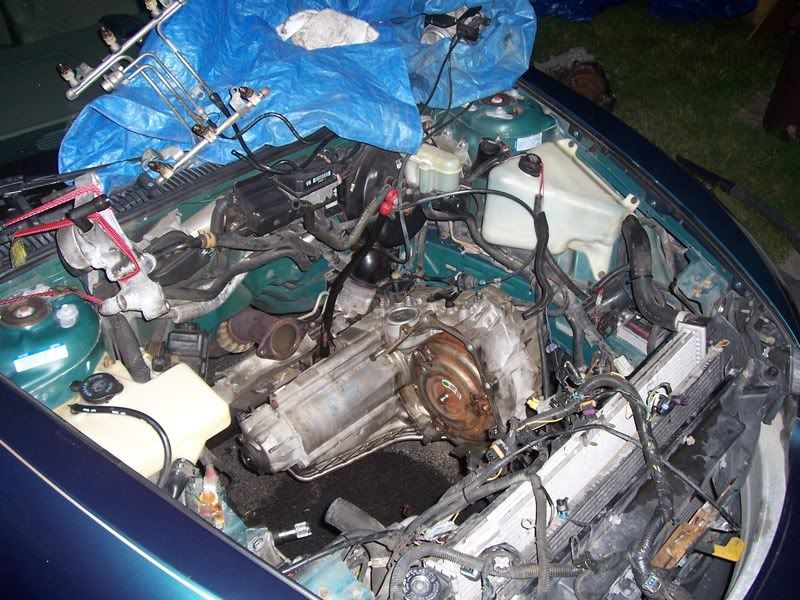

engine bay

gone

new trans

new trans in... Not too bad to do

fuel

hey people need fuel too
I thought this was kind of a neat picture
Back to top Go down
Chicken
Aficionado
Chicken


Name : Mark
Age : 58
Location : Montana
Joined : 2008-06-13
Post Count : 1296
Merit : 8

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptySun Jul 06, 2008 8:31 am

great shot!
Back to top Go down
http://profile.myspace.com/index.cfm?fuseaction=user.viewprofile
BillBoost37
Junkie



Location : Enfield CT
Joined : 2007-11-28
Post Count : 769
Merit : 26

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptyWed Jul 09, 2008 7:00 am

Looking awesome. Is the LIM also ported to match the blower casing?

Keep going..it's going to pay off very soon.
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptyWed Jul 09, 2008 10:48 pm

BillBoost37 wrote:
Is the LIM also ported to match the blower casing?

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 7b6be3c1
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptyWed Jul 09, 2008 10:56 pm

I am very close to being finished now. The blower is on. Waiting on a new injector to come tomorrow afternoon to finish the rest. I tried removing the o-ring at the bottem of the first injector and broke the plasticy seal retainer thing. I don't know of a way to remove the old o-ring and put a new one on without breaking those little shits so I guess I'm not replacing any o-rings pretty much. The rail-side o-rings are no problem but I see no reason to pull the injectors off the rail just to do that. The bottem ones looked like they were doused in septic waste when I pulled them off the manifold. I don't like the idea of having grit and junk sitting right in my intake runner...

So I did everything else without a hitch and now when I'm practically done, I break a nearly $100 injector. yaaaayyyy happy happy happy
Back to top Go down
ewolfe0050
Aficionado
ewolfe0050


Name : Eric
Location : Indianapolis, IN
Joined : 2007-07-31
Post Count : 1159
Merit : 27

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptyThu Jul 10, 2008 12:04 am

Looks like I'm going to have some competition awfully soon.. great work. I really like the header wrap and wished I did mine up that way too.

BTY.. I'm planning another weekend Chicago trip here in the next month or so. Your not too far away...
Back to top Go down
BillBoost37
Junkie



Location : Enfield CT
Joined : 2007-11-28
Post Count : 769
Merit : 26

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptyThu Jul 10, 2008 9:48 am

Oh..it might be easier to realign the tensioner with the hoses removed. I've tried to line up the elbows etc w/o pulling the hoses and sometimes it fights.
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptyThu Jul 10, 2008 9:04 pm

Today, it has been raining on and off all day. I've been a bit busy setting up stuff for school so I couldn't quite finish it. By the time it stops raining, daylight will be long gone so I'll try to finish tomorrow. I just have to put the accesory belt on, hook up the ignition wires, and get a couple bolts and nuts for the rear exhaust manifold to crossover flange, at least for temporary. I couldn't find the OEM studs for it and I couldn't get new M8-1.25 bolts to thread in. Pain in the ass... mad
Then add fluids and such and I think thats about it.
Back to top Go down
BillBoost37
Junkie



Location : Enfield CT
Joined : 2007-11-28
Post Count : 769
Merit : 26

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptyFri Jul 11, 2008 7:31 am

I bet you are excited at this point.
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptyFri Jul 11, 2008 5:17 pm

It runs!
I pulled the fuel injection fuse and cranked it for 2 10sec bursts to attempt to prime the oil up a bit. Then I restored the fuse and cranked it and it fired right up.

Something pretty much scared the shit out of me for a minute. It was ticking really bad but I didn't particularly see or hear it coming from the exhuast. As far as I can tell, it is the block off plate I put onto the EGR flange from the rear exhaust manifold. I half expected that to be an issue but I've just now applied a bead of copper RTV to the plate and tightened it back on.

We'll see how that works..
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptyFri Jul 11, 2008 6:32 pm

It seems to have done the trick. EGR block off leak owned
Back to top Go down
AA
Administrator
AA


Name : Aaron
Age : 47
Location : C-bus, Ohio
Joined : 2007-01-13
Post Count : 18452
Merit : 252

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptySat Jun 02, 2012 11:38 am

Thanks Codith for posting the engine removal pics. I am pulling my engine today, and will be taking photos along the way. This thread may get split into two write-ups: 1) Engine Removal/Installation and 2) XPCam & Valvetrain Install. I may use your removal pics, combined with my own, to create the Engine Removal/Installation thread.

_________________
'05 GTO 6.0L • 6-spd • 95k miles • 0-60: 4.8s • 16.9 avg MPG • Nelson Ledges Lap: 1:26

'95 Celica GT 2.2L • 5-spd • 165k miles • 0-60: yes

'98 SC Riviera • 281k miles • 298 HP/370 TQ • 0-60: 5.79s • ET: 13.97 @ 99.28 • 4087 lb • 20.1 avg MPG • Nelson Ledges Lap: 1:30
3.4" pulley • AL104 plugs • 180º t-stat • FWI w/K&N • 1.9:1 rockers • OR pushrods • LS6 valve springs • SLP headers • ZZP fuel rails
KYB GR2 struts • MaxAir shocks • Addco sway bars • UMI bushings • GM STB • Enkei 18" EV5s w/ Dunlop DZ101s • F-body calipers
EBC bluestuff/Hawk HP plus • SS lines • Brembo slotted discs • DHP tuned • Aeroforce • Hidden Hitch

^^^ SOLD ^^^ frown

'70 Ninety-Eight Holiday Coupe 455cid • 116k miles
^^^ SOLD ^^^ frown
Back to top Go down
http://www.cardomain.com/ride/657082/4
robotennis61
Guru
robotennis61


Name : robotennis
Age : 63
Location : las vegas
Joined : 2007-12-17
Post Count : 5562
Merit : 143

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptySat Jun 02, 2012 2:35 pm

Wow I'm looking forward to this! While youre there DO port the heads and port the water ports too!
Back to top Go down
AA
Administrator
AA


Name : Aaron
Age : 47
Location : C-bus, Ohio
Joined : 2007-01-13
Post Count : 18452
Merit : 252

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptySun Jun 03, 2012 12:02 am

I'm not sure if that will happen, since I need the engine rebuilt and back in the car by end of next week.

Today I got the oil and coolant drained, belts, intake & throttle cable detached, ignition and fuel system off, headers & crossover pipe out, STB bar removed, alternator & wiring harness disconnected except for one pesky wire under power steering pump. Removing the hood and hopefully the engine tomorrow, then it's off to Detroit.

Here's a step by step of the progress:

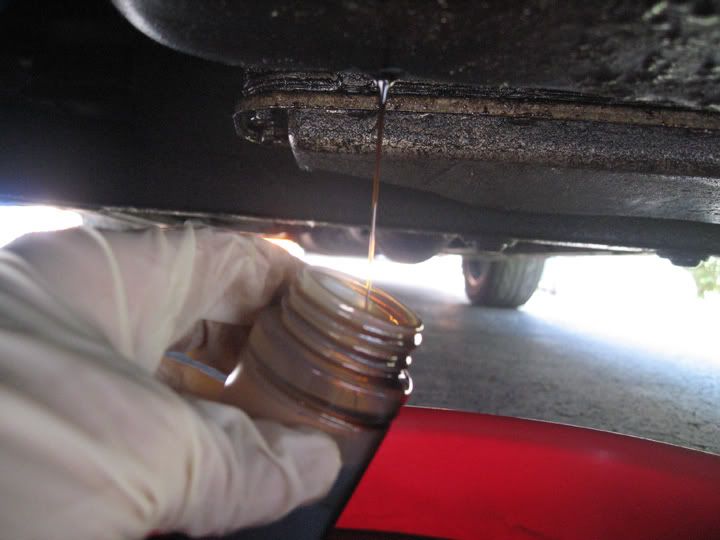

Fluids drained. The engine has not been started in 2 weeks, so all the oil should be down in the pan. I let it drain out for several hours. Collected a sample to send for analysis. Results should be interesting.

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 OilCollect

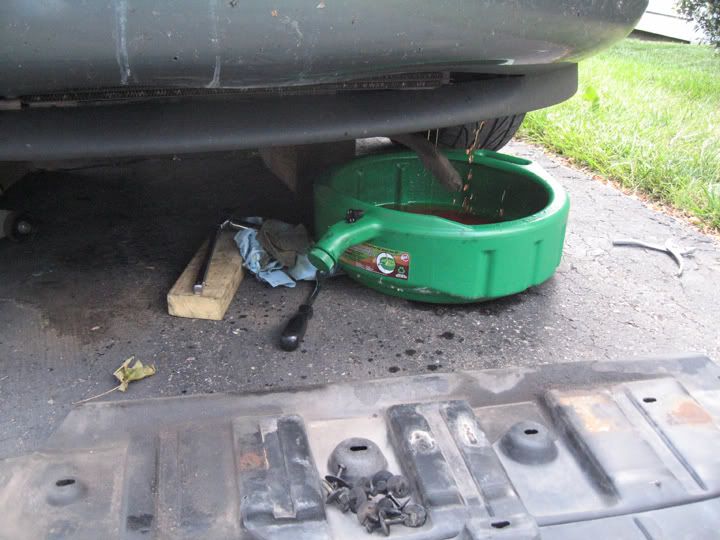

DexCool out:

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Coolant

DISCONNECTED BATTERY!

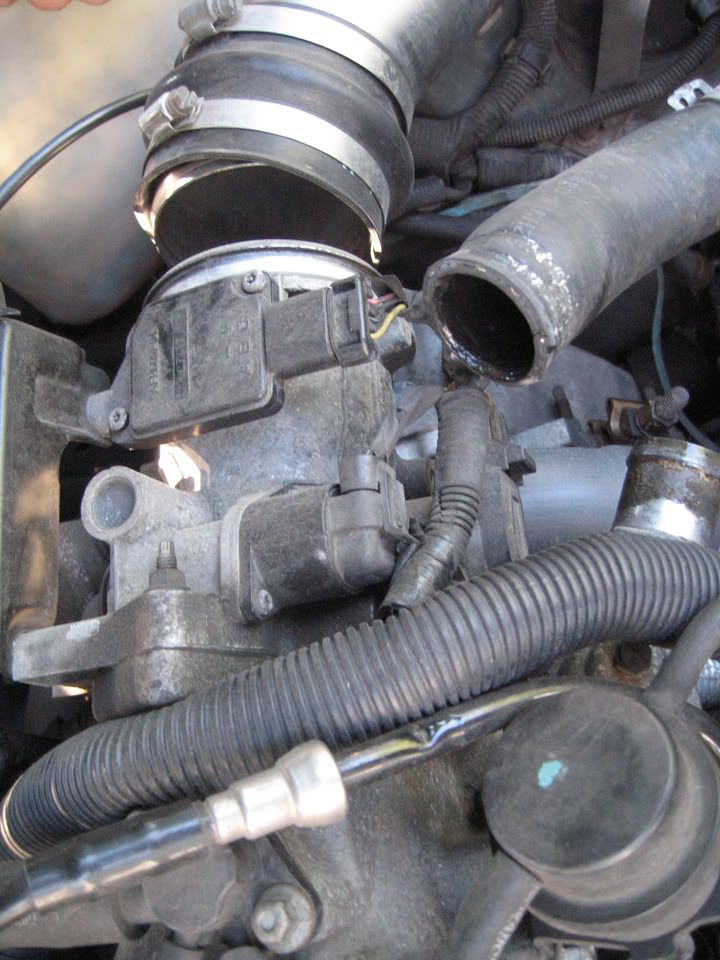

Remove coolant hoses and intake:

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 IntakeHoses

Belts off:

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 BeltsOff

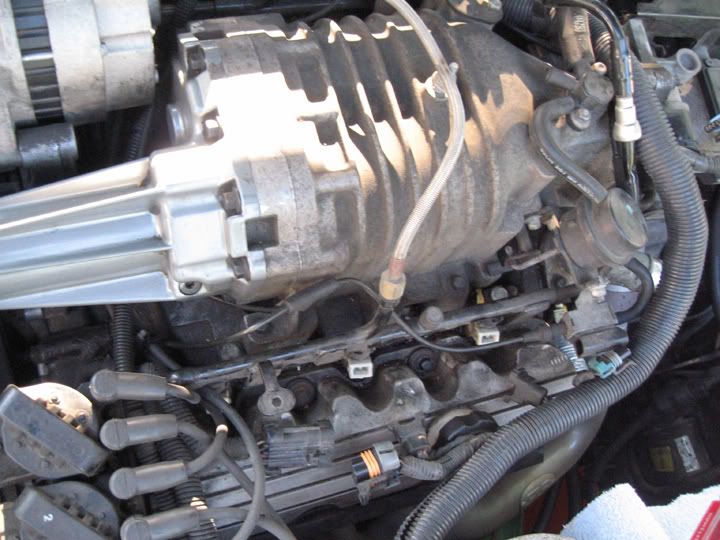

Disconnect injectors, sensors, and part of wiring harness:

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 InjectorsOUT

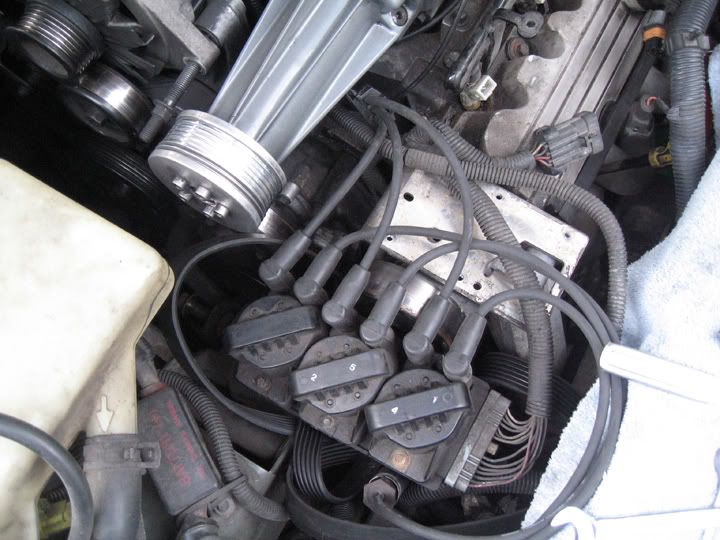

Ignition wires and coil packs removed:

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 WiresOFF

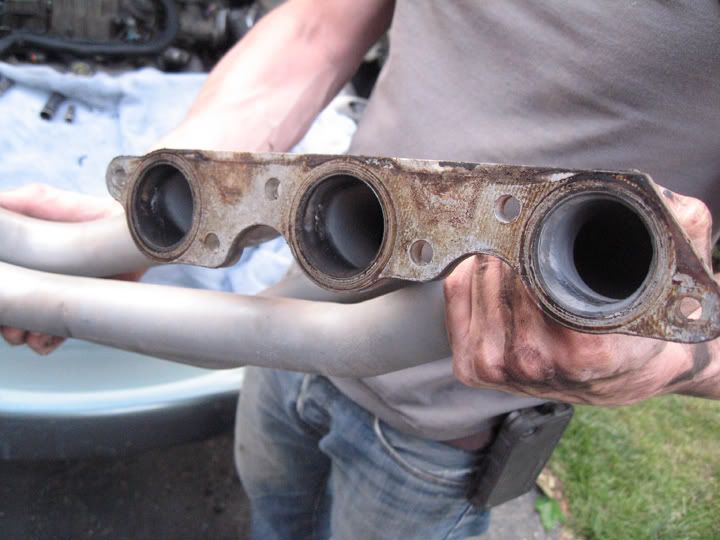

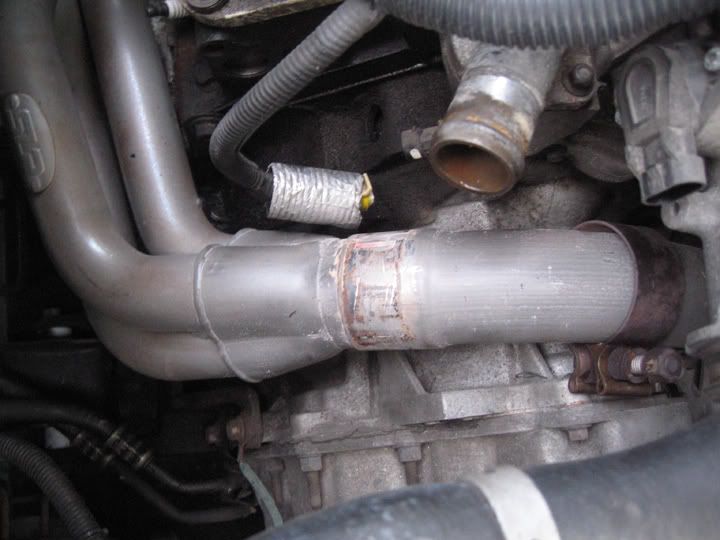

Front header out:

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 HeaderOFF

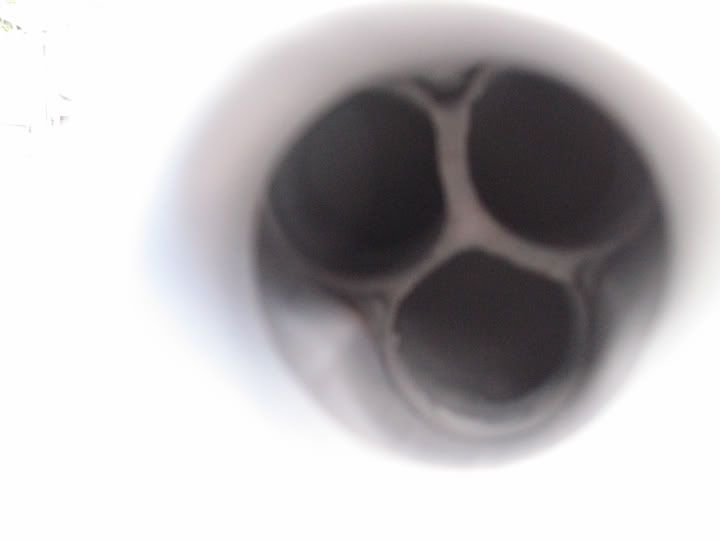

Primaries were remarkably clean inside. Hardly any soot:

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 HeaderOFF2

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 HeaderOFF3

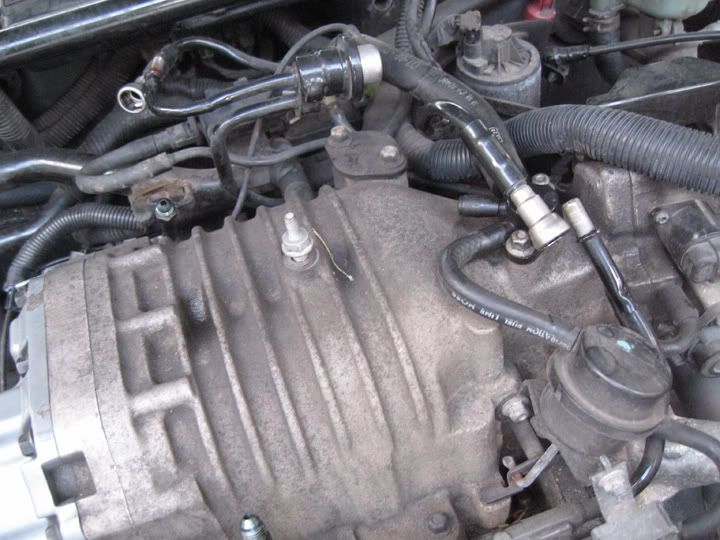

Fuel lines:

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 FuelLines

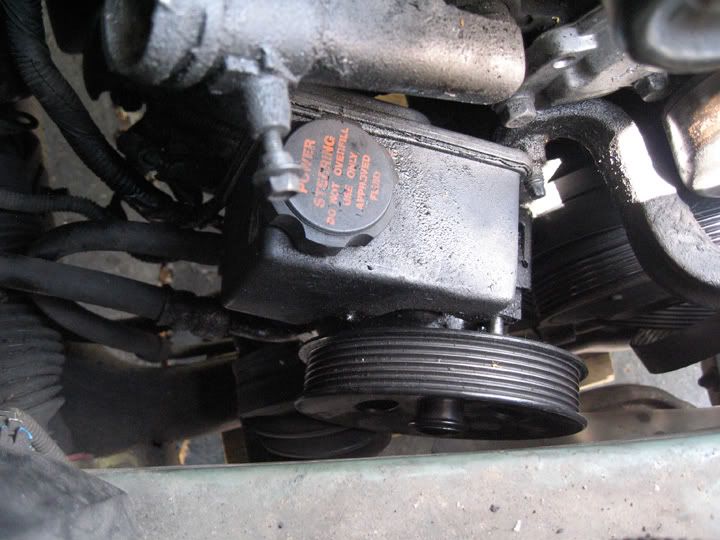

Power steering pump (two screws):

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 PWRsteeringPUMP

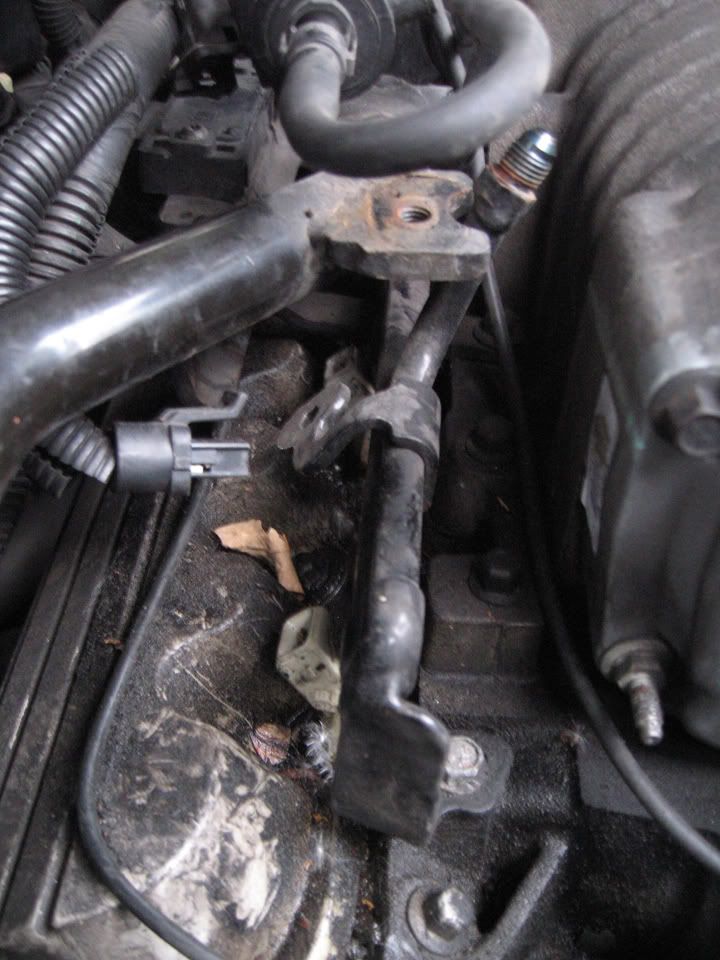

Alternator remove:

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 AlternatorOUT

Btw, here are some of the tools I've used thus far. Actually not a whole lot is needed to tear apart the engine, and all screws, nuts and bolts loosened without trouble - no penetrating oil needed! I notice a fastener trend for the engine: 10 mm, 13 mm, and 15 mm are VERY COMMON, with 18 mm used a couple times. Although I own an air ratchet, I found myself not using it a lot. My trusty long handle 3/8" ratchet, sockets & extensions and ratcheting wrench set were most useful for this job.

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Tools

Question for Codith or anyone who's pulled the motor from the top: should the trans fluid be drained before separating the transmission from the engine? Also, can the drive shafts remain installed when the motor is pulled?

Thx

_________________
'05 GTO 6.0L • 6-spd • 95k miles • 0-60: 4.8s • 16.9 avg MPG • Nelson Ledges Lap: 1:26

'95 Celica GT 2.2L • 5-spd • 165k miles • 0-60: yes

'98 SC Riviera • 281k miles • 298 HP/370 TQ • 0-60: 5.79s • ET: 13.97 @ 99.28 • 4087 lb • 20.1 avg MPG • Nelson Ledges Lap: 1:30
3.4" pulley • AL104 plugs • 180º t-stat • FWI w/K&N • 1.9:1 rockers • OR pushrods • LS6 valve springs • SLP headers • ZZP fuel rails
KYB GR2 struts • MaxAir shocks • Addco sway bars • UMI bushings • GM STB • Enkei 18" EV5s w/ Dunlop DZ101s • F-body calipers
EBC bluestuff/Hawk HP plus • SS lines • Brembo slotted discs • DHP tuned • Aeroforce • Hidden Hitch

^^^ SOLD ^^^ frown

'70 Ninety-Eight Holiday Coupe 455cid • 116k miles
^^^ SOLD ^^^ frown
Back to top Go down
http://www.cardomain.com/ride/657082/4
robotennis61
Guru
robotennis61


Name : robotennis
Age : 63
Location : las vegas
Joined : 2007-12-17
Post Count : 5562
Merit : 143

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptySun Jun 03, 2012 12:09 am

You have to remove the drive shafts.It's possible but why not remove them?ya have to anyway!
draining the tranny can be done afterwards.The fluid wont flow out.Easier to drain while on bench anyway.
Back to top Go down
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptySun Jun 03, 2012 12:30 am

Drive shafts? Are you talkin about the CV axles? Those don't have to do anything and the trans will be fine in fact better than because it won't have to hold up the engine lol. Just make sure obviously to remove the flexplate to torque converter bolts so you don't start to pull out the converter.

btw thanks AA for pulling this thread out of the grave because it has a post by billboost about the alternator hitting the genV causing KR. I need to take a close look at that again I think...
Back to top Go down
AA
Administrator
AA


Name : Aaron
Age : 47
Location : C-bus, Ohio
Joined : 2007-01-13
Post Count : 18452
Merit : 252

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptySun Jun 03, 2012 9:47 am

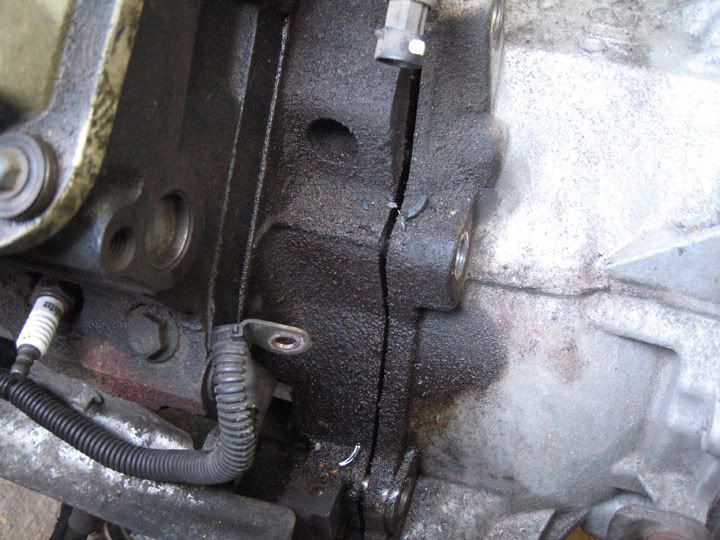

Yes, I want the transmission and axles to remain in the car. Only trying to remove the engine from the top. Can see several bolts holding the engine and trans together - plan to remove those, and then what? Will the engine separate enough to access the flex plate bolts?

Will trans fluid spill everywhere when I separate the engine/trans, or would this be minimized if I drain the pan first? I know about half the trans fluid stays in the coverter. I don't want to make a big mess.

Thx for help.

_________________
'05 GTO 6.0L • 6-spd • 95k miles • 0-60: 4.8s • 16.9 avg MPG • Nelson Ledges Lap: 1:26

'95 Celica GT 2.2L • 5-spd • 165k miles • 0-60: yes

'98 SC Riviera • 281k miles • 298 HP/370 TQ • 0-60: 5.79s • ET: 13.97 @ 99.28 • 4087 lb • 20.1 avg MPG • Nelson Ledges Lap: 1:30
3.4" pulley • AL104 plugs • 180º t-stat • FWI w/K&N • 1.9:1 rockers • OR pushrods • LS6 valve springs • SLP headers • ZZP fuel rails
KYB GR2 struts • MaxAir shocks • Addco sway bars • UMI bushings • GM STB • Enkei 18" EV5s w/ Dunlop DZ101s • F-body calipers
EBC bluestuff/Hawk HP plus • SS lines • Brembo slotted discs • DHP tuned • Aeroforce • Hidden Hitch

^^^ SOLD ^^^ frown

'70 Ninety-Eight Holiday Coupe 455cid • 116k miles
^^^ SOLD ^^^ frown
Back to top Go down
http://www.cardomain.com/ride/657082/4
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptySun Jun 03, 2012 12:28 pm

There's really no reason fluid should leave the transmission at all from pulling the engine. There's the 5 bell-housing bolts including the bitch bolt, the little brace that connects the diff area of the trans to the oil filter area of the engine that can come off right away once you have access to it (not a critical weight carrying point), the one engine mount on the passenger side, the flywheel-tc bolts which you remove by taking off the starter and plastic access covers - there's no moving anything except turning over the engine by hand to get each bolt. As you loosen the bolts, the torque converter will actually pull its self away from the flywheel a tiny bit since it's kind of floating so there's really nothing to have issues. The tc doesn't want to come out.
Back to top Go down
AA
Administrator
AA


Name : Aaron
Age : 47
Location : C-bus, Ohio
Joined : 2007-01-13
Post Count : 18452
Merit : 252

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptySun Jun 03, 2012 12:59 pm

THANK YOU! (+)

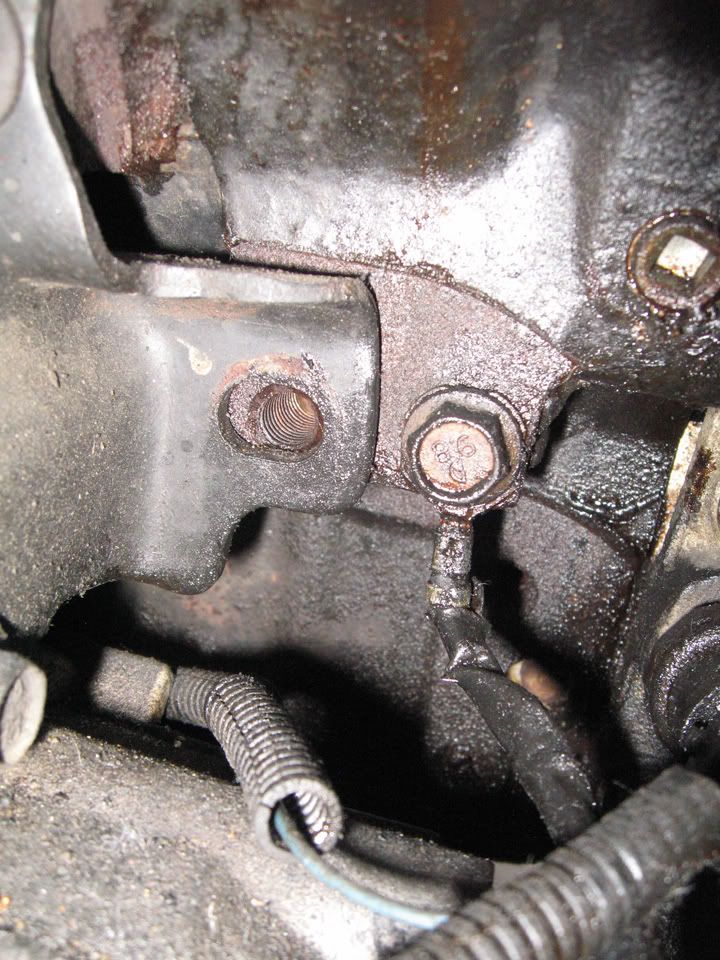

This little ground wire is the last thing connecting the wiring harness to the engine. It is located behind the power steering pump, accessed from the rear of the engine bay:

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Ground

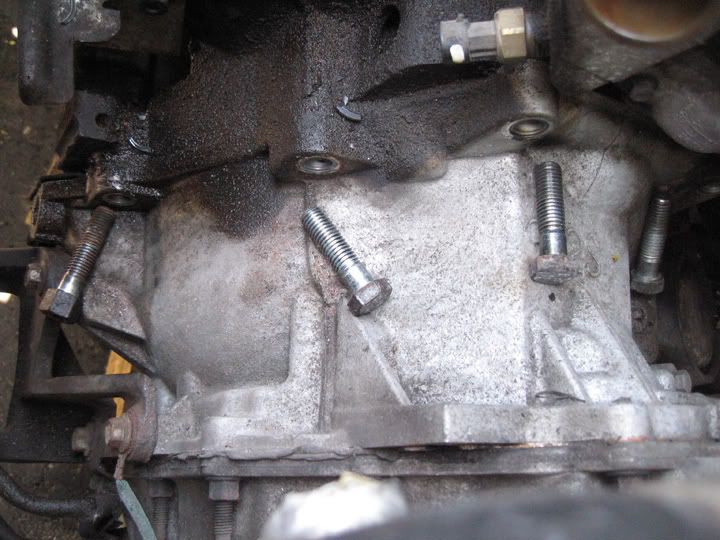

Loosened 4 screws connecting the engine to transmission:

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 TransSCREWS

The backward/bitch bolt is evading me. Is that it in center?

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 221D51C7-orig

_________________
'05 GTO 6.0L • 6-spd • 95k miles • 0-60: 4.8s • 16.9 avg MPG • Nelson Ledges Lap: 1:26

'95 Celica GT 2.2L • 5-spd • 165k miles • 0-60: yes

'98 SC Riviera • 281k miles • 298 HP/370 TQ • 0-60: 5.79s • ET: 13.97 @ 99.28 • 4087 lb • 20.1 avg MPG • Nelson Ledges Lap: 1:30
3.4" pulley • AL104 plugs • 180º t-stat • FWI w/K&N • 1.9:1 rockers • OR pushrods • LS6 valve springs • SLP headers • ZZP fuel rails
KYB GR2 struts • MaxAir shocks • Addco sway bars • UMI bushings • GM STB • Enkei 18" EV5s w/ Dunlop DZ101s • F-body calipers
EBC bluestuff/Hawk HP plus • SS lines • Brembo slotted discs • DHP tuned • Aeroforce • Hidden Hitch

^^^ SOLD ^^^ frown

'70 Ninety-Eight Holiday Coupe 455cid • 116k miles
^^^ SOLD ^^^ frown


Last edited by AA on Sun Jun 03, 2012 6:22 pm; edited 1 time in total
Back to top Go down
http://www.cardomain.com/ride/657082/4
deekster_caddy
Master



Name : Derek
Age : 52
Location : Reading, MA
Joined : 2007-01-31
Post Count : 7717
Merit : 109

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptySun Jun 03, 2012 1:50 pm

That picture looks like the diff/pass. side output housing. You need to go another 6-8 inches deeper. Should be an 18mm head IIRC.
Back to top Go down
AA
Administrator
AA


Name : Aaron
Age : 47
Location : C-bus, Ohio
Joined : 2007-01-13
Post Count : 18452
Merit : 252

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptySun Jun 03, 2012 2:09 pm

One Of these? (looking staight up between trans & oil pans)

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 9A562F6C-orig

_________________
'05 GTO 6.0L • 6-spd • 95k miles • 0-60: 4.8s • 16.9 avg MPG • Nelson Ledges Lap: 1:26

'95 Celica GT 2.2L • 5-spd • 165k miles • 0-60: yes

'98 SC Riviera • 281k miles • 298 HP/370 TQ • 0-60: 5.79s • ET: 13.97 @ 99.28 • 4087 lb • 20.1 avg MPG • Nelson Ledges Lap: 1:30
3.4" pulley • AL104 plugs • 180º t-stat • FWI w/K&N • 1.9:1 rockers • OR pushrods • LS6 valve springs • SLP headers • ZZP fuel rails
KYB GR2 struts • MaxAir shocks • Addco sway bars • UMI bushings • GM STB • Enkei 18" EV5s w/ Dunlop DZ101s • F-body calipers
EBC bluestuff/Hawk HP plus • SS lines • Brembo slotted discs • DHP tuned • Aeroforce • Hidden Hitch

^^^ SOLD ^^^ frown

'70 Ninety-Eight Holiday Coupe 455cid • 116k miles
^^^ SOLD ^^^ frown


Last edited by AA on Sun Jun 03, 2012 6:22 pm; edited 1 time in total
Back to top Go down
http://www.cardomain.com/ride/657082/4
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptySun Jun 03, 2012 3:16 pm

The pic there between the engine and transaxle is just the knock sensor and its shield. The bitch bolt is the bell housing bolt closest to the firewall but instead of threading into the engine block like the other 4, it threads the other way into the trans so you have to get it from the back behind the engine - hence its name. Conventionally, you'd have to have a long-ass extension to go across that whole area pictured above but something gets in the way. (the knock sensor IIRC) The last time I had my engine out I got to the bolt from the trans side, reaching over the way the exhaust crossover goes and I was able to remove and install it that way. If you take the heads off, for removal, it's easier still.

Oh but yeah that first pic of the diff area is that bracket. I believe 3 bolts hold it to the diff and 2 connect it to the engine.
Back to top Go down
AA
Administrator
AA


Name : Aaron
Age : 47
Location : C-bus, Ohio
Joined : 2007-01-13
Post Count : 18452
Merit : 252

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptySun Jun 03, 2012 3:48 pm

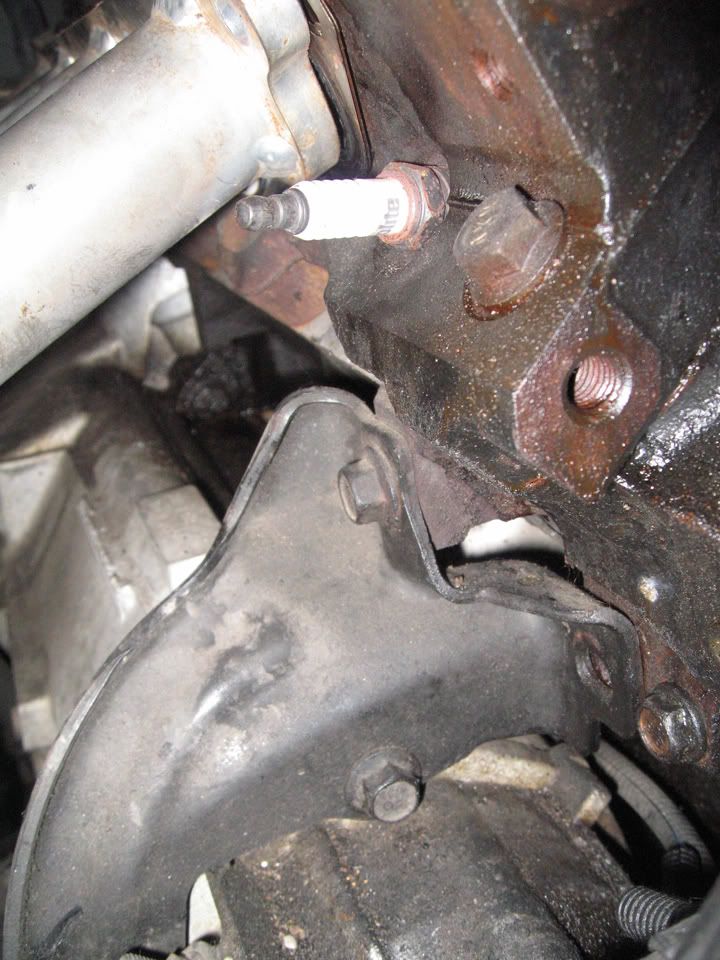

Okay, so that bracket needs to come off. The bracket is shown below. I think the B-bolt is in the background.

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Bitchbolt1

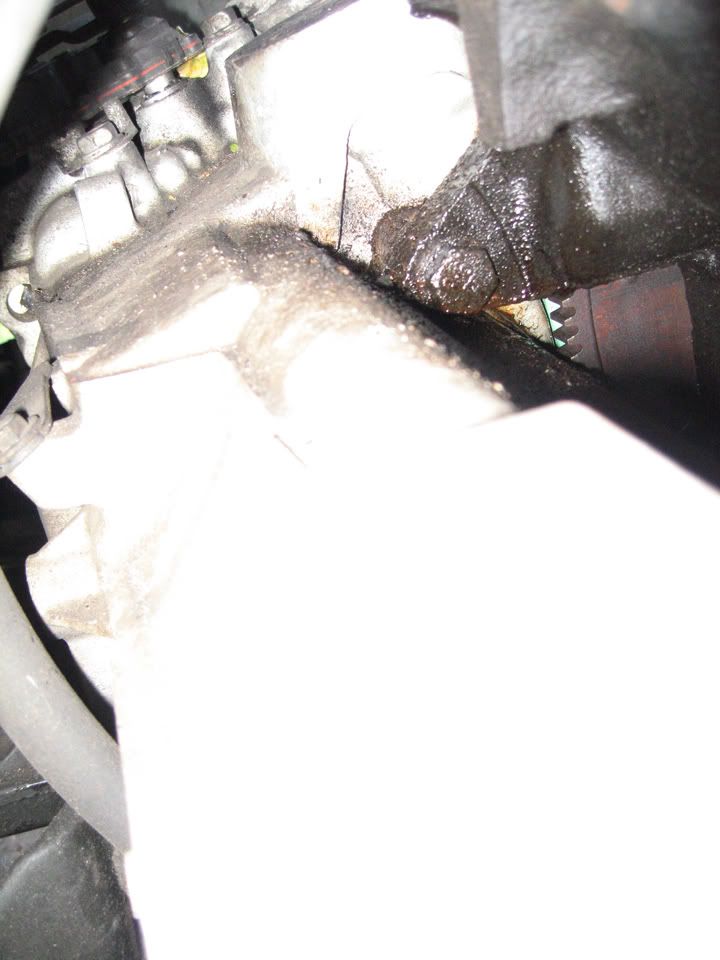

A closer look at the suspect B-bolt. This has to be it!

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Bitchbolt2

_________________
'05 GTO 6.0L • 6-spd • 95k miles • 0-60: 4.8s • 16.9 avg MPG • Nelson Ledges Lap: 1:26

'95 Celica GT 2.2L • 5-spd • 165k miles • 0-60: yes

'98 SC Riviera • 281k miles • 298 HP/370 TQ • 0-60: 5.79s • ET: 13.97 @ 99.28 • 4087 lb • 20.1 avg MPG • Nelson Ledges Lap: 1:30
3.4" pulley • AL104 plugs • 180º t-stat • FWI w/K&N • 1.9:1 rockers • OR pushrods • LS6 valve springs • SLP headers • ZZP fuel rails
KYB GR2 struts • MaxAir shocks • Addco sway bars • UMI bushings • GM STB • Enkei 18" EV5s w/ Dunlop DZ101s • F-body calipers
EBC bluestuff/Hawk HP plus • SS lines • Brembo slotted discs • DHP tuned • Aeroforce • Hidden Hitch

^^^ SOLD ^^^ frown

'70 Ninety-Eight Holiday Coupe 455cid • 116k miles
^^^ SOLD ^^^ frown
Back to top Go down
http://www.cardomain.com/ride/657082/4
turtleman
Expert
turtleman


Name : Codith
Age : 37
Location : Villa Park, IL
Joined : 2007-02-08
Post Count : 3671
Merit : 140

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptySun Jun 03, 2012 4:53 pm

Yup
Back to top Go down
AA
Administrator
AA


Name : Aaron
Age : 47
Location : C-bus, Ohio
Joined : 2007-01-13
Post Count : 18452
Merit : 252

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 EmptySun Jun 03, 2012 6:20 pm

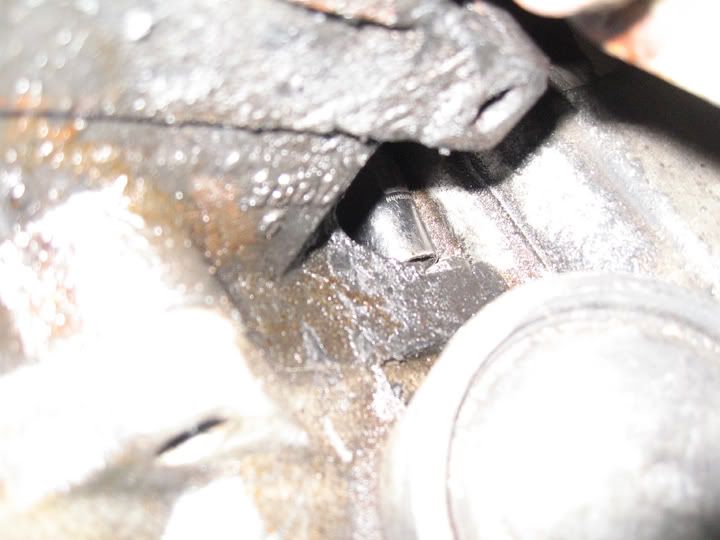

Okay, got it. The B-bolt is actually accessible from driver side, or from atop the engine. Here's a picture taken from the area where the throttle body and EGR are located.

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 BitchBOLT3

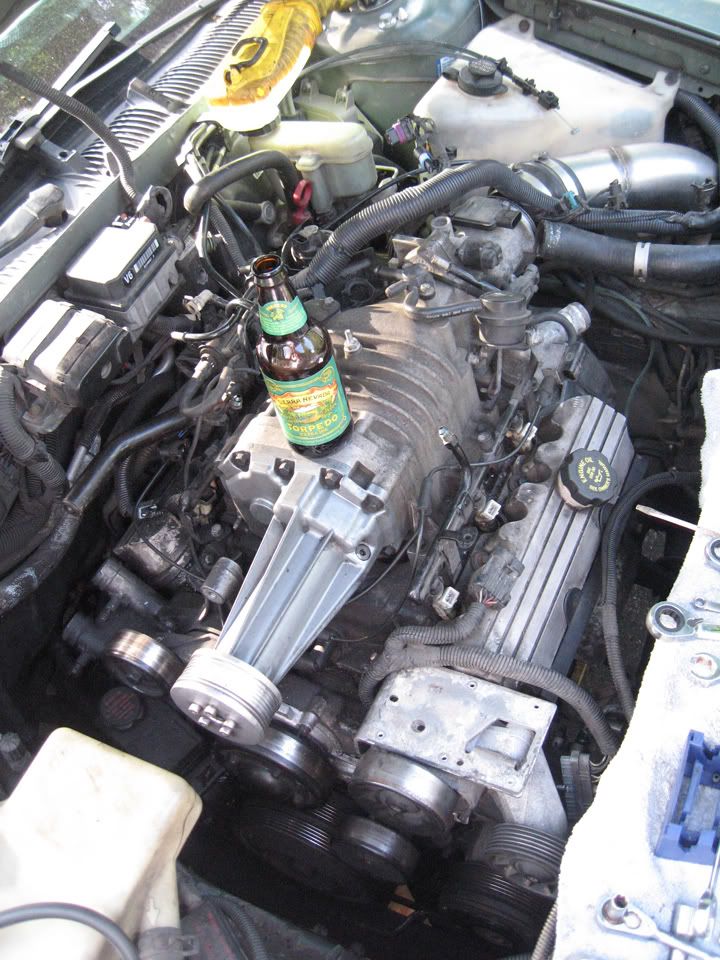

Took out the engine mount, belts, and rest of wiring harness. Cooling hoses all disconnected.

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 BracketOUT1

With a little leverage with a pry bar, the block separates from the transaxle!

Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 TransSEP1

Now working on AC compressor, planning to leave it connected in the engine bay.

_________________
'05 GTO 6.0L • 6-spd • 95k miles • 0-60: 4.8s • 16.9 avg MPG • Nelson Ledges Lap: 1:26

'95 Celica GT 2.2L • 5-spd • 165k miles • 0-60: yes

'98 SC Riviera • 281k miles • 298 HP/370 TQ • 0-60: 5.79s • ET: 13.97 @ 99.28 • 4087 lb • 20.1 avg MPG • Nelson Ledges Lap: 1:30
3.4" pulley • AL104 plugs • 180º t-stat • FWI w/K&N • 1.9:1 rockers • OR pushrods • LS6 valve springs • SLP headers • ZZP fuel rails
KYB GR2 struts • MaxAir shocks • Addco sway bars • UMI bushings • GM STB • Enkei 18" EV5s w/ Dunlop DZ101s • F-body calipers
EBC bluestuff/Hawk HP plus • SS lines • Brembo slotted discs • DHP tuned • Aeroforce • Hidden Hitch

^^^ SOLD ^^^ frown

'70 Ninety-Eight Holiday Coupe 455cid • 116k miles
^^^ SOLD ^^^ frown
Back to top Go down
http://www.cardomain.com/ride/657082/4
Sponsored content





Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty
PostSubject: Re: Write-Up: 3800 Series II SC Engine Removal & Installation   Write-Up: 3800 Series II SC Engine Removal & Installation - Page 2 Empty

Back to top Go down

Write-Up: 3800 Series II SC Engine Removal & Installation
Back to top
Page 2 of 6Go to page : Previous  1, 2, 3, 4, 5, 6  Next
 Similar topics
-
» Write-Up: Transaxle Removal & Installation
» Write-up: Fuel Filter removal / installation
» Could I swap my 97 Riv with a 3800 series 3 engine w/superch
» Ignition Coil Pack part # for Supercharged 3800 Series II Engine?
» FAQ: Series I to Series II / Series III Engine Swap

Permissions in this forum:You cannot reply to topics in this forum
Riv Performance ::   Supercharged 3800 Tech :: Series II Engine & Transmission-
Jump to:
